Embodying the tenets of pure contemporary design, Pella Reserve – Contemporary aluminum-clad wood hinged patio doors make a statement in any room. Featuring expansive glass and through-stile construction, our industry-leading modern designs deliver uncompromised attention to detail — all the way down to the premium hardware from Baldwin®.

  • Single and double door designs offered, in sizes up to 10’ tall, to perfectly complement your home.
  • In-swing and out-swing patio door configurations.
  • Available with optional upgrades including triple-pane glass and innovative grilles to provide energy efficiency and style.
Purchasing Options
Based on

Free In-Home Consultation

Limited appointments available

Schedule Consultation

Visit your Pella Showroom

There are no showrooms within 200 miles of this location.

See All Locations

Reserve - Contemporary Hinged Patio Door Features

  • Clean Contemporary Aesthetic

  • Custom Door Solutions

  • Best Limited Lifetime Warranty For Wood Patio Doors19

Design Options

Pella Reserve products offers exquisite wood types to enhance your home's design. Learn more about materials.

And, we stand behind them with a limited lifetime warranty. See written Limited Warranty for details, including exceptions and limitations.

Materials

  • pine wood

    Pine

  • unfinished mahogany corner section of a window

    Unfinished Mahogany

  • douglas fir wood window material

    Douglas Fir

Materials

Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

Downloads & Specifications

Design, Performance & Size Tables

Specifications

2D Cross Section

2D Elevation

3D & BIM

Product Literature

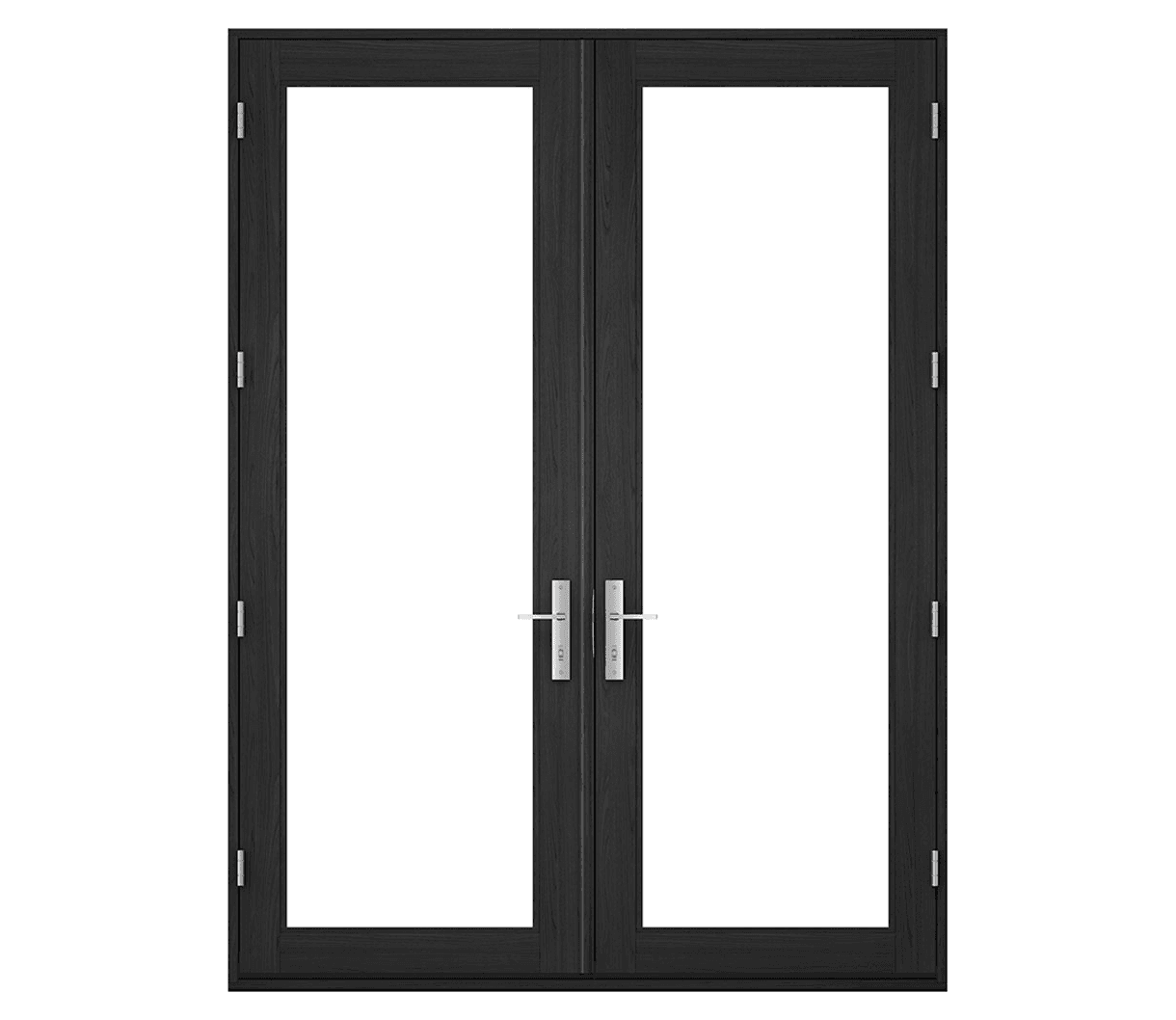

  • large hinged patio door with no backgrounds

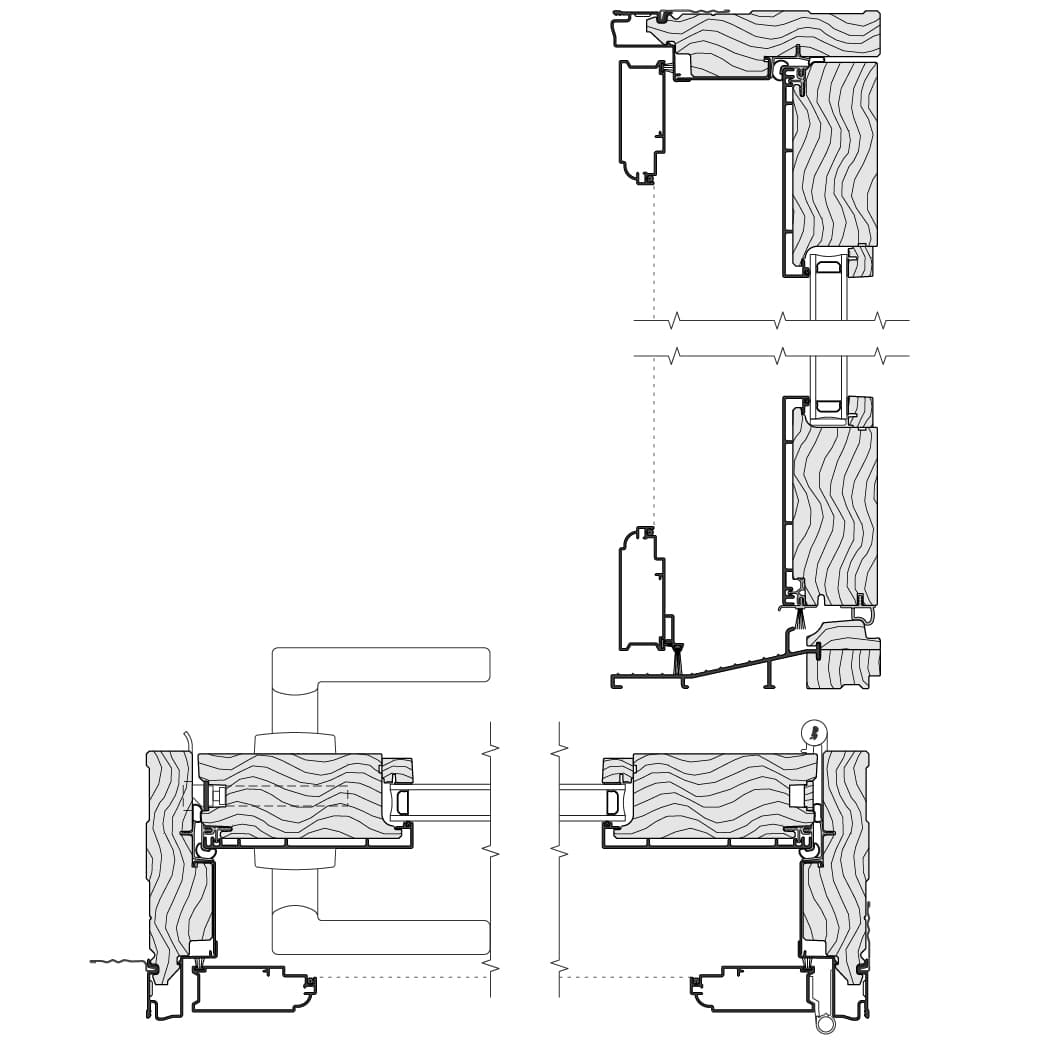

  • reserve contemporary hinged door cross section

Reserve - Contemporary Hinged Patio Door Specs & Install Details

  • Featuring sleek patio door hardware designs created in collaboration with Baldwin, the #1 premium hardware brand
  • Single doors available in sizes up to 48” x 119-½", double doors available in sizes up to 96” x 119-½"
  • Performance rating of LC40-LC70 and STC of 30-3631
  • Installation options include Fold-out Fin, Block Frame, and EnduraClad Exterior Trim/Brickmould
Frame
  • Components are assembled with screws, staples and concealed corner locks.
  • Frame depth between 5-7/8" (149mm) to 8-5/8" (219mm), for wall depth between 4-9/16" (116mm) to 7-5/16" (186mm).
  • Optional factory-applied EnduraClad® exterior trim.
Door panels
  • Interior exposed surfaces are veneered with  clear pine, mahogany or douglas fir
  • Exterior surfaces are clad with aluminum.
  • Panel hinge stiles and rails are three-ply construction, randomly finger-jointed blocks laminated with water-resistant glue and veneered on both sides
  • Panel lock stiles are constructed with LVL core with finger-jointed edge bands on both sides and veneered on both faces.
  • Corners are urethane-silicone hybrid-sealed and secured with metal fasteners.
  • Panel thickness is 2-1/16" (52mm).
Glazing System
  • Quality fully-tempered float glass complying with ASTM C 1048.
  • Custom and high altitude glazing available.
  • Urethane-glazed 13/16" dual-seal insulating glass
Hinges
  • Hinges are adjustable to help with installation.
  • Doors under 7' 0" frame height will have three hinges per panel.
  • Doors over 7' 0" frame height up to and including 8' 0" frame height will have four hinges per panel.
  • Doors over 8' 3" frame height up to and including 9' 0" frame height will have five hinges per panel
  • Doors over 9' 0" frame height will have six hinges per panel.
Locks
  • Mortised and keyed multi-point locking system, center deadbolt and shoot-bolts at head and sill will engage simultaneously.
  • Doors 8' 0" frame height and below will have one strike at the head, one strike at the sill and one center deadbolt.
  • Doors over 8' 0" frame height up to and including 10' 0" frame height will have one strike at the head, one strike at the sill and three locking points at the stile.
  • Solid brass handles and keylock with K-keyway cylinder.
Screens
  • Hinged Insect Screens - Compliance: ASTM D 3656 and SMA 1201. Screen Cloth: InView™ Vinyl-coated fiberglass, 18/18 mesh fiberglass screen cloth complying with the performance requirements of SMA 1201. Extruded-aluminum frame, hinged to door frame.
  • Exterior Sliding Insect Screens - Compliance: ASTM D 3656 and SMA 1201. Screen Cloth: InView™ Vinyl-coated fiberglass, 18/18 mesh fiberglass screen cloth complying with the performance requirements of SMA 1201. Extruded-aluminum frame, top hung on 2 adjustable nylon rollers.
