Pella® Reserve™ – Contemporary Wood Sliding Patio Door

Pella Reserve – Contemporary aluminum-clad wood sliding patio doors feature uncompromised attention to detail. With expansive glass, pure 90-degree exteriors and a self-closing retractable screen, the simple and sophisticated design glides open along a single track, saving interior floor space.

  • Sleek hardware created in collaboration with Baldwin®, the #1 premium hardware brand, completes the look.
  • Optional integrated security sensors powered by Pella Insynctive® technology.
  • Innovative square grilles are available and provide the authentic look of divided light while maintaining exceptional energy efficiency.

Talk to a Pella Rep for Pricing

Reserve - Contemporary Sliding Patio Door Features

    • Contemporary Architectural Integrity

      • Expansive Door Sizes

        • Custom Made for Your Space

        Design Options

        Pella Reserve products offers exquisite wood types to enhance your home's design. And, we stand behind them with a Limited Lifetime Warranty.

        Materials

          • pine wood

            Pine

            • unfinished mahogany corner section of a window

              Unfinished Mahogany

              • douglas fir wood window material

                Douglas Fir

              Materials

              Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

              Downloads & Specifications

              Design & Performance
              Specifications
              2D Cross Section
              2D Elevation
              3D & BIM
              Sell Sheets

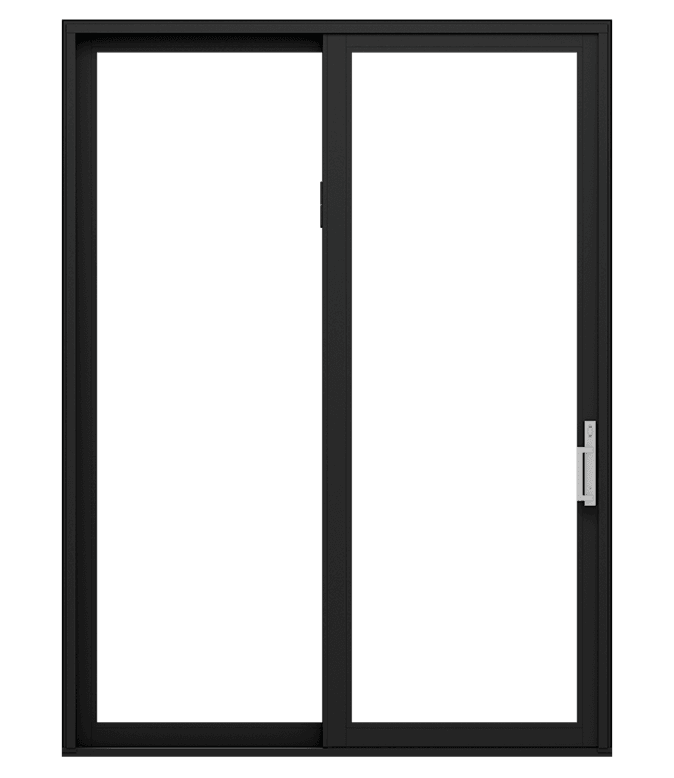

              • large illustration of a sliding patio door
              • cross section for reserve contemporary sliding door

              Reserve - Contemporary Sliding Patio Door Specs & Install Details

              • Expansive glass options combined with some of the narrowest sightlines in the industry
              • Available in 1-, 2-, 3- and 4-panel configurations, up to 236-1/8” x 119-½" in 1/8” increments
              • Performance rating of LC25-LC70 and STC of 29-3531
              • Installation options include Fold-out Fin, Block Frame, and EnduraClad Exterior Trim/Brickmould
              Frame
              • Optional factory-installed fold-out installation fins with flexible fin corners.
              • Fin position will accommodate standard 4-9/16" (116mm) wall depths.
              • Frame depth is 5-7/8" (149mm).
              • Optional factory-applied jamb extensions available between 4-9/16" (116mm) and 7-3/16" (183mm) wall depths.
              • Optional factory-applied EnduraClad® exterior trim.
              Door panels
              • Panel stiles are LVL core with finger-jointed edge bands on both sides and veneered on both faces. Panel rails are three-ply construction, randomly fingerjointed blocks laminated with water-resistant glue and veneered on both sides.
              • Corners are secured with metal fasteners and structural adhesive.
              • Panel thickness is 2-1/16" (52mm).
              • Vent panels have two adjustable ABEC 5 sealed electroplated steel ball-bearing rollers with organic coating, set on stainless steel track, standard.
              • Two adjustable corrosion-resistant stainless steel ball-bearing rollers; out of-unit option.
              Weatherstripping

              Dual-durometer extruded polymer with bulb at head, jamb and threshold. Corners are welded along perimeter of door panels.

              Hardware
              • Keylock with K-keyway cylinder. Finish is Chrome.
              • Multi-point locking hardware is electroplated steel with stainless steel strikes.
              • The foot bolt has a Black finish
              • Interior and exterior screen handle finish will match the interior door handle finish.
              backyard patio black architect series contemporary sliding patio door

              Pella® Reserve™

              With Pella Reserve, anything is possible. Expansive sizes, custom finishes, wood types and glass options are just the beginning. If you can dream it, we can build it with our most customizable product line. Partner with us to bring your vision to life.
