Pella® Reserve™ – Contemporary Wood Multi-Slide Patio Door

Live large with the distinctive style of Pella Reserve – Contemporary extruded aluminum-clad wood multi-slide patio doors. Expansive panels with minimal profiles and ample glass let light shine in your design. Add integrated security sensors for added peace of mind while preserving the clean sightlines of the multi-slide patio door.

  • For added versatility, panels can stack or slide neatly into a wall pocket to truly open your space. You can also enter or exit at either end of your door with our dual-vent option.
  • Thermally broken multi-slide frame design with built in sill pan is suited for designs with no overhang.
  • Patented weep sill helps prevent water infiltration.

Talk to a Pella Rep for Pricing

Reserve - Contemporary Multi-Slide Patio Door Features

    • Clean Lines and Minimal Profiles

      • Custom Fit to Your Exact Opening

        • Best Limited Lifetime Warranty For Wood Patio Doors19

        Design Options

        Pella Architect Series products offers exquisite wood types to enhance your home's design. And, we stand behind them with a limited lifetime warranty. See written Limited Warranty for details, including exceptions and limitations.

        Materials

          • pine wood

            Pine

            • unfinished mahogany corner section of a window

              Unfinished Mahogany

              • douglas fir wood window material

                Douglas Fir

              Materials

              Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

              Downloads & Specifications

              Design & Performance
              Specifications
              3D & BIM
              Sell Sheets
              • reserve contemporary multi-slide door in black

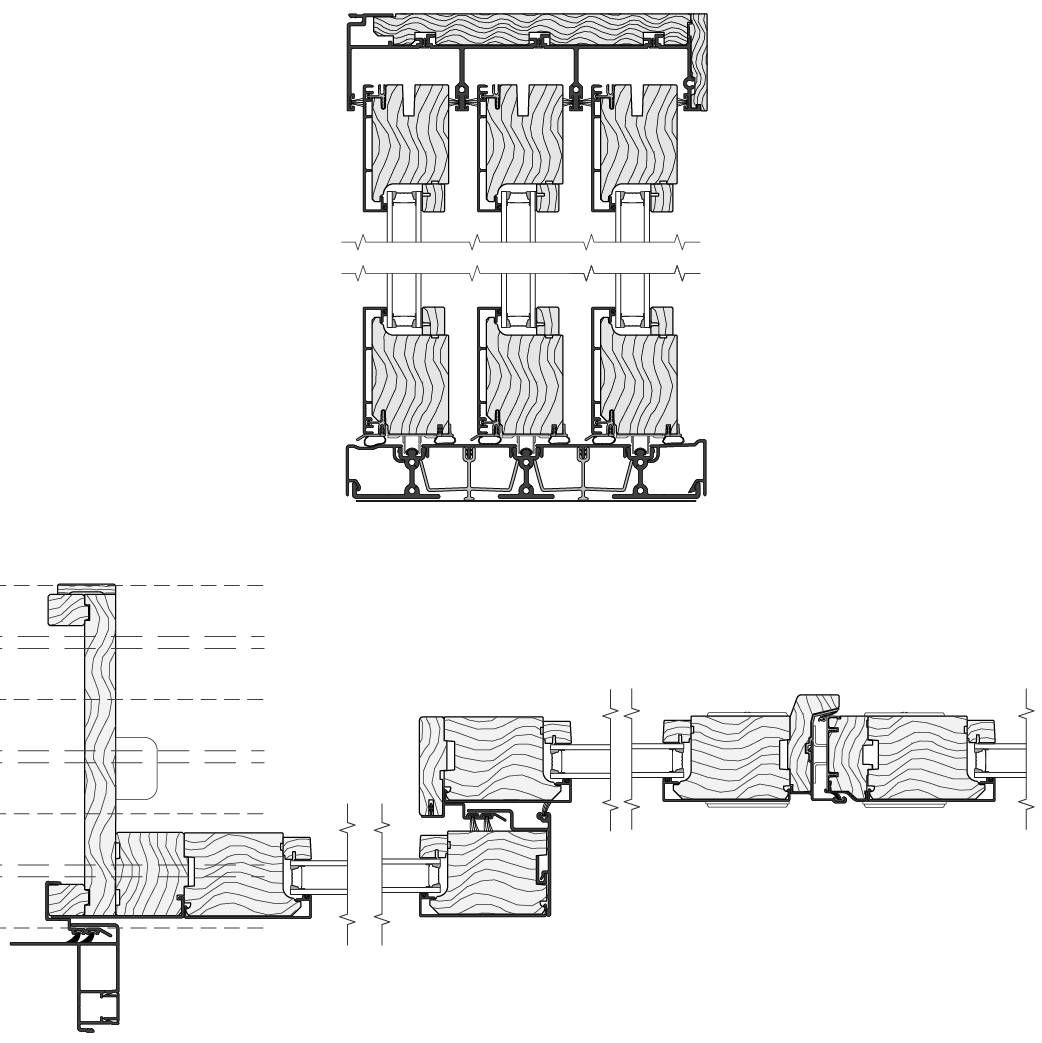

              • reserve contemporary multi-slide patio door cross section

              Reserve - Contemporary Multi-Slide Patio Door Specs & Install Details

              • Expansive glass options combined with some of the narrowest sightlines in the industry
              • Backed by the best limited lifetime warranty for wood patio doors19
              • Performance rating of R15-LC3031
              • Available in sizes up to 713-5/8” x 119-1/2” in 1/8” increments
              • Optional integrated security sensors maintain aesthetics, streamline security installation and ensure no warranty loss is caused by post-installation drilling

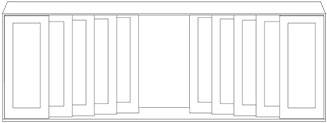

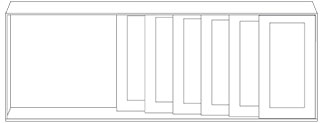

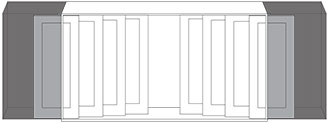

              • Available in stacking, bi parting, and pocketing combinations with 2-10 panels and sizes up to 713-5/8” x 119-1/2” in 1/8” increments
              • Available for use as a pass-through window
              Frame
              • Head and jamb components are assembled with screws and staples.
              • Extruded aluminum sill tracks and sill track covers are bonded to a stainless steel sill pan with 3M VHB tape. Stainless steel track caps on which the rollers glide.
              • Sill Finish is painted solar reflective black or painted “clear” morning sky gray.
              • Frame Depth varies from 5.92" to 22.42" depending on configuration. See Overall Track Depth for dimension.
              • 1-1/2" Weep Sill and Surface Mount Sill tracks run continuous length of frame width. Ramps run length of Daylight opening only (not in the pocket).
              • Integrated Sill is Continuous length of frame or Staggered under the panel travel for field-installed finished flooring between sill tracks.
              Door panels
              • Panel stiles are LVL core with finger-jointed edge bands on both sides and veneered on both faces. Panel rails are three-ply construction, randomly fingerjointed blocks laminated with water-resistant glue and veneered on both sides.
              • Corners are secured with metal fasteners and structural adhesive.
              • Panel exterior profile is square and interior profile is square
              • Vent panels have two adjustable ABEC 5 sealed electroplated steel ball-bearing rollers with organic coating, set on stainless steel track, standard.
              • Two adjustable corrosion-resistant stainless steel ball-bearing rollers; out of-unit option.
              Weatherstripping
              • Mohair at heads on interior and exterior of panel.
              • Dual Durometer extruded polymer leaf weatherstrip and mohair rain screen at jambs.
              • Dual Durometer extruded polymer bulb at bottom of panels on interior and exterior.
              • Mohairs at panel interlockers.
              Hardware

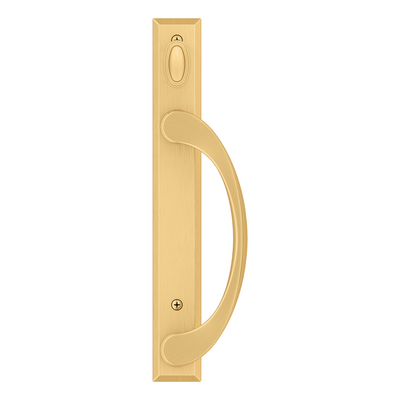

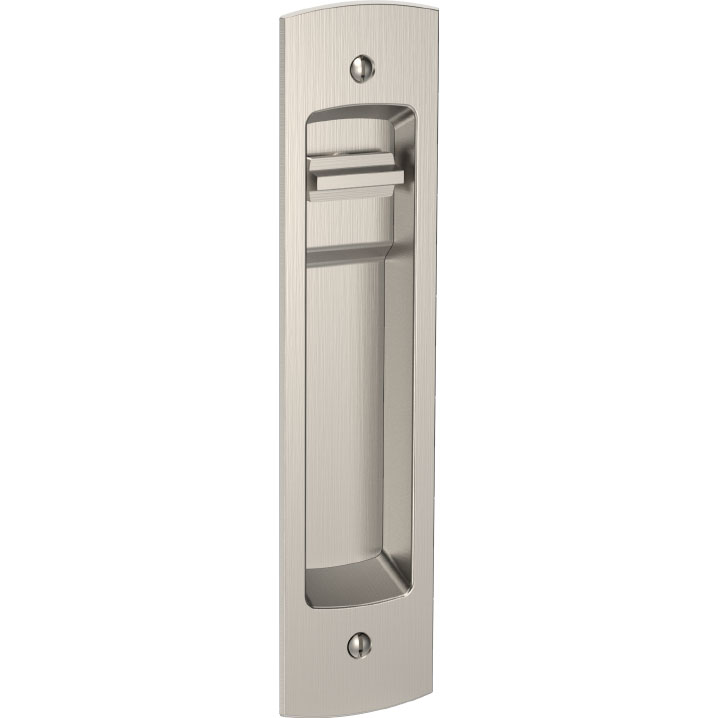

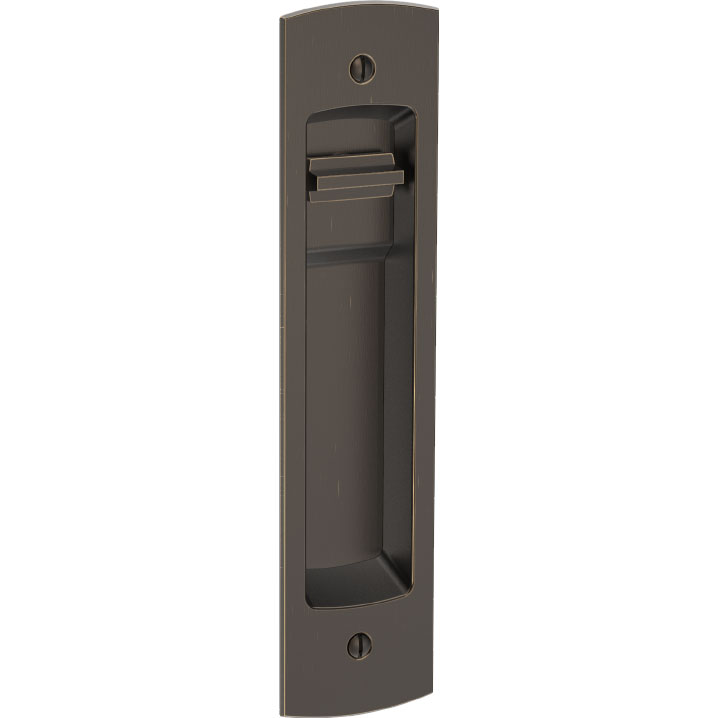

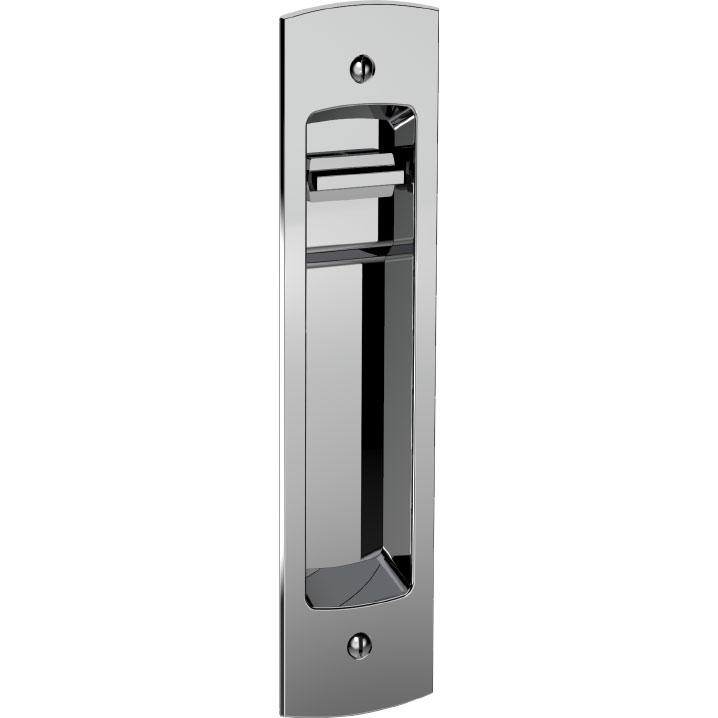

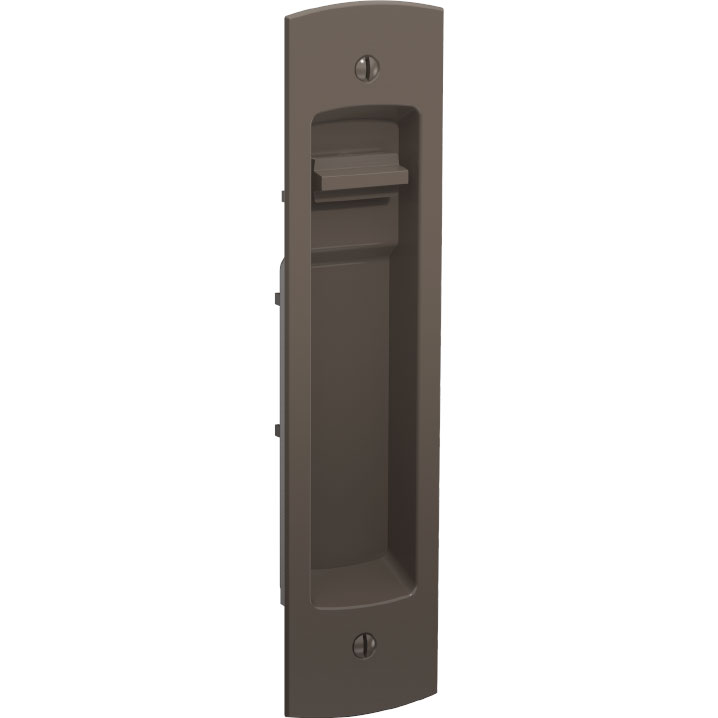

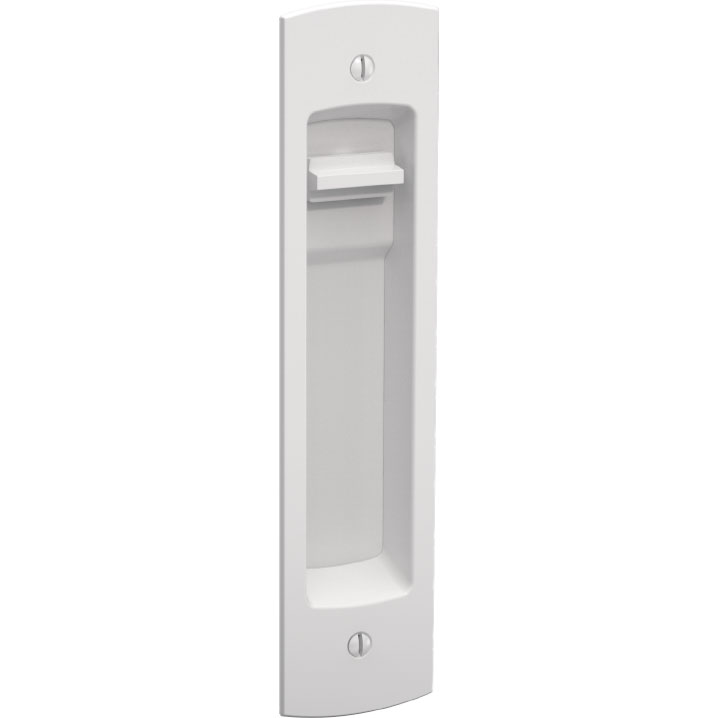

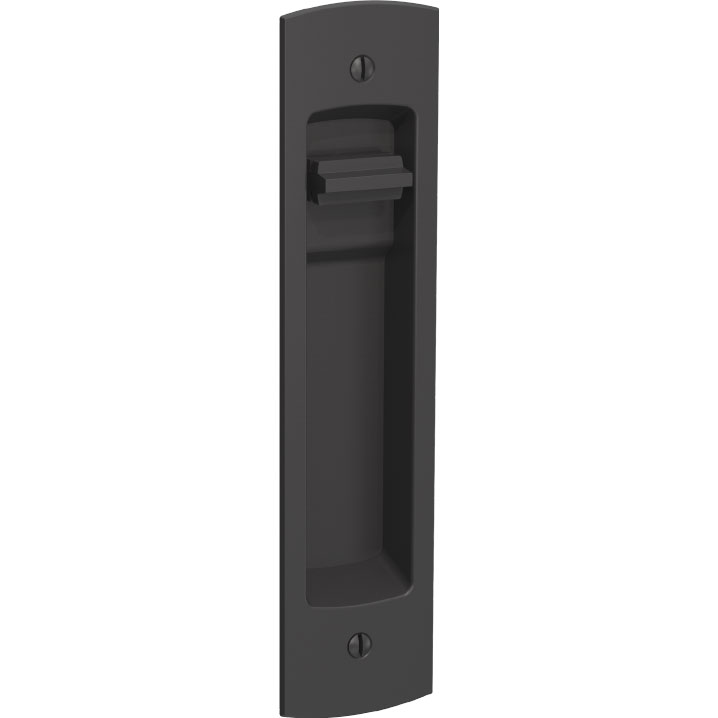

              • Standard flush handle style with SmartKey Security™ Re-key technology is brass.

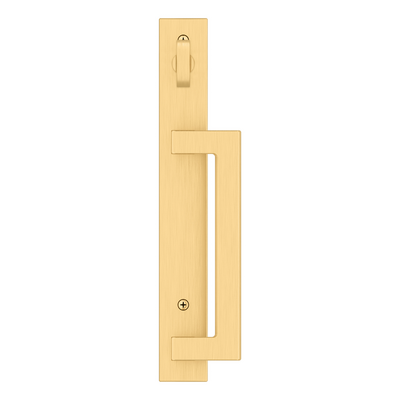

              • Optional Baldwin® sliding patio door hardware styles with SmartKey Security™ Re-key technology.
              •  Multiple point lock hardware is electroplated steel with stainless steel strikes. Located on lead vent panel and fixed panel. Wood plug on fixed panel hides access to fixed panel locking hardware.
              • Stacking door with dual vent option allows traditional 'fixed’ panel to vent one panel width in the opposite direction, with matching hardware set on dual vent panel.
              • Biparting doors have an active handle set and inactive handle set in middle panels.
              • Hardware handle lock lever location from bottom of the panel to center of lock thumb turn is Typical 40.843” or 54.843”

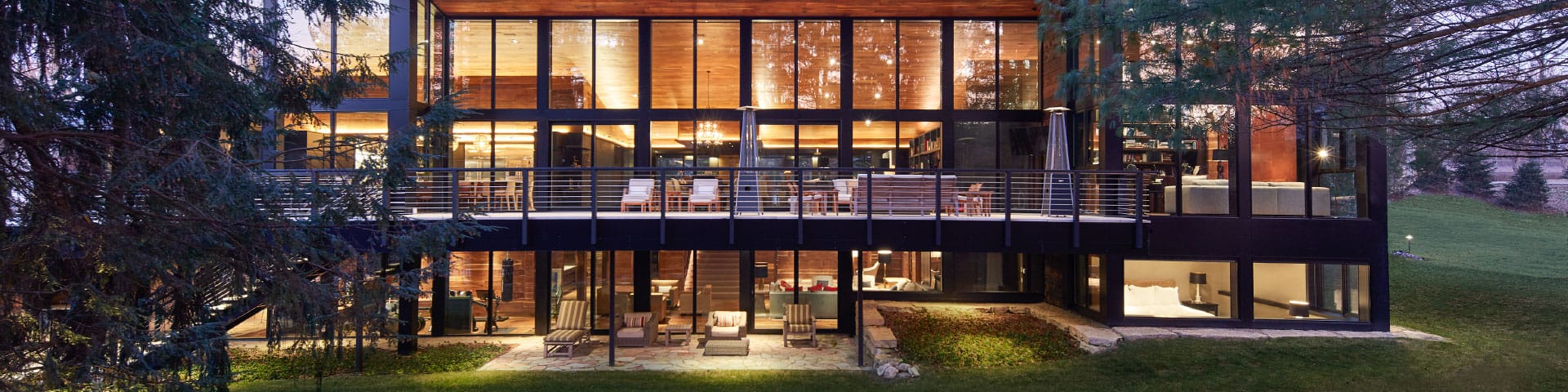

              reserve contemporary windows and patio doors on a two story home at dusk and all lights on inside

              Pella® Reserve™

              We take pride in the durability of our wood patio doors. That’s why we stand behind them with the best limited lifetime warranty for wood patio doors in the industry.47 Our Pella Reserve products feature advanced wood protection and extremely durable extruded aluminum cladding.
