Pella® Reserve™ – Contemporary Wood Push-Out Casement Window

Elevate any room with Pella Reserve – Contemporary aluminum-clad wood push-out casement windows, a sophisticated alternative to a casement with a crank. This classic window design paired with our uncompromised attention to detail produces controlled airflow, maximum glass and some of the narrowest sightlines in the industry.

  • Featuring a sleek finger pull for smooth operation without detracting from the modern aesthetic.
  • Durable, extruded aluminum-clad exteriors with a low-maintenance EnduraClad® protective finish provide long-lasting beauty.
  • Energy-efficient triple-pane glass is available to help keep your home warmer in the winter and cooler in the summer.

Talk to a Pella Rep for Pricing

Reserve - Contemporary Push-Out Casement Window Features

    • Authentic Contemporary Style

      • Most Customizable Material

        • European-Inspired Design

        Design Options

        Pella Reserve products offers exquisite wood types to enhance your home's design. And, we stand behind them with a limited lifetime warranty.

        Materials

          • pine wood

            Pine

            • unfinished mahogany corner section of a window

              Unfinished Mahogany

              • douglas fir wood window material

                Douglas Fir

              Materials

              Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

              Downloads & Specifications

              Design & Performance
              Specifications
              2D Cross Section
              2D Elevation
              3D & BIM
              Sell Sheets
              • large illustration of a push-out casement window

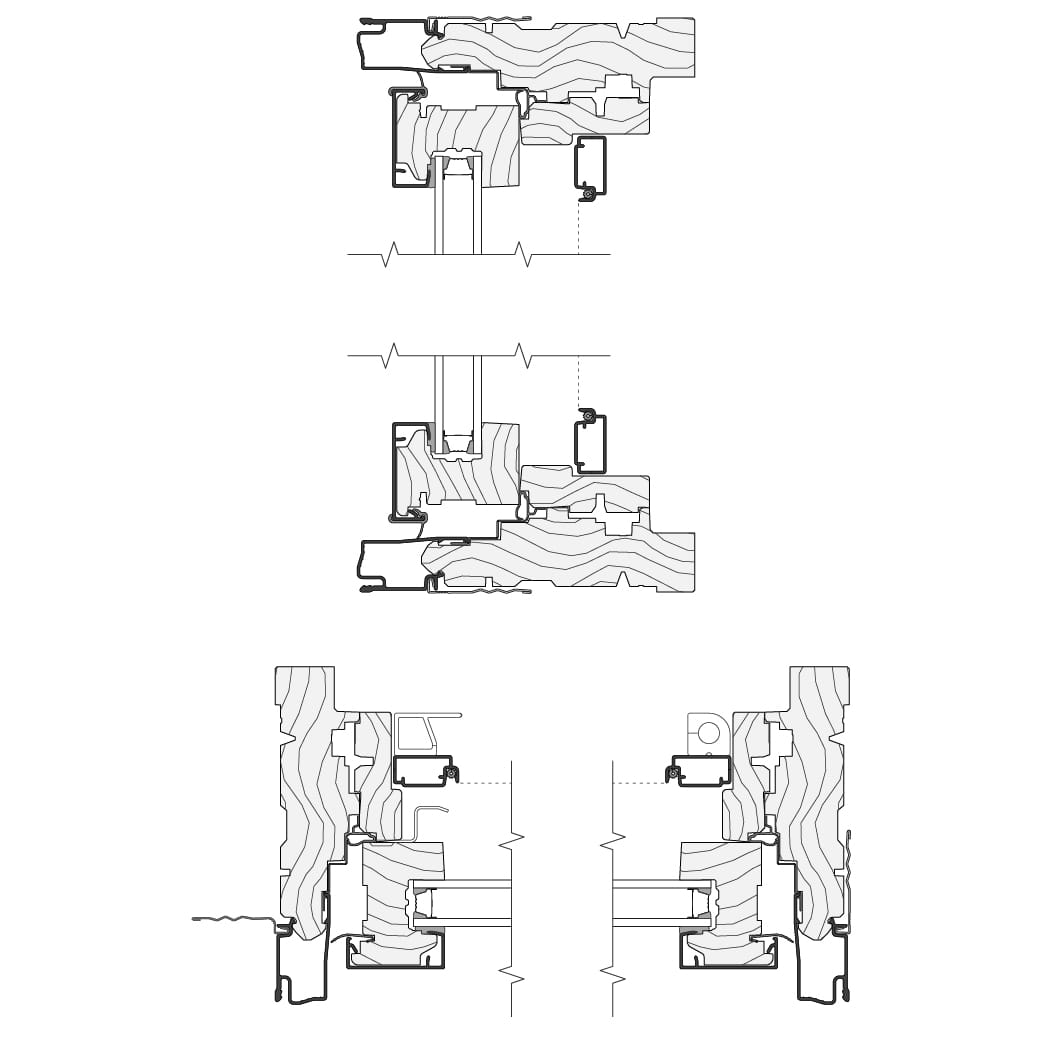

              • push out casement window cross section

              Reserve - Contemporary Push-Out Casement Window Specs & Install Details

              • Uncompromised attention to detail with some of the narrowest sightlines in the industry
              • Discrete finger pull used for opening and closing the window and innovative contemporary hinged screen
              • Performance rating of R 50 and STC of 28-33
              • Available in sizes up to 41” x 96” in 1/8” increments
              • Installation options include Fold-out Fin, Block Frame, and EnduraClad Exterior Trim/Brickmould
              Frame
              • Overall frame depth is 5" (127mm) for a wall depth of 3-11/16" (94mm).
              • Optional factory-applied jamb extensions available between 3-13/16" (97mm) and 9-3/16" (233mm).
              • Optional factory-installed fold-out installation fins with flexible fin corners.
              • Optional factory-applied EnduraClad® exterior trim.
              Sash
              • Exterior surfaces are clad with extruded aluminum butt-jointed at all corners of the sash with through-stile construction and sealed.
              • Corners mortised and tenoned, glued and secured with metal fasteners.
              • Sash thickness is 1-13/16" (46mm) for 11/16" or 2-1/8" (54mm) for 1" glazing.
              • Sash exterior profile is square, interior profile is square.
              Glazing System
              • Quality float glass complying with ASTM C 1036.
              • Silicone-glazed dual-pane 11/16" dual-seal insulating glass,
              • Silicone-glazed dual-pane 1" dual-seal tempered spandrel glass
              • Silicone-glazed dual-pane 11/16" dual-seal non-impact laminated glass
              • Silicone-glazed 1" triple-pane, dual-seal insulating glass
              Glazing System - Impact Resistant
              • Silicone-glazed 1" dual-seal impact-resistant insulating glass (SGP) Laminated clear interior light.
              • Silicone-glazed 11/16" dual-seal impact-resistant insulating glass (PVB) Laminated clear interior light
              SureLock® System

              A single handle locking system operates positive-acting arms that reach out and pull the sash into a locked position: one operating lock installed on units with frame height 29" and less, two unison operating locks installed on units with frame height over 29".

              Roto Operator Assembly
              • Steel worm gear sash operator with hardened gears.
              • Operator base is zinc die cast with painted finish.
              • Operator linkage, hinge slide, and hinge arms are stainless steel.
              • Exposed fasteners are stainless steel.
              • Hardware shall exceed 1,000 hours salt spray exposure per ASTM B 117.
              • All vent units are available with left- or right-hand hinging.
              woman sitting on a window seat with three double-hung reserve windows surrounding her

              Pella® Reserve™

              Trust us to make your vision a reality with Pella Reserve windows — no matter your architectural style. From historic putty profiles and the traditional look of individual windowpanes to sleek corners and expansive glass, our traditional and contemporary designs are created with meticulous care and attention.
