Pella® Reserve™ – Traditional Wood Double-Hung Window

Create the traditional look your historic renovation, new construction or replacement project requires with a traditional wood or aluminum-clad wood double-hung window. This Pella Reserve window proves our uncompromised attention to detail with historic putty profiles, through-stile construction, innovative grilles and authentic spoon-lock hardware.

  • Winner of 2019 Most Innovative Window from Window and Door Magazine with optional Integrated Rolscreen® retractable screen that appears when you open the window and rolls away when you close it.
  • Pella Reserve products have been reviewed and approved on a case-by-case basis by the National Park Service for use on projects with historic tax credits.
  • Innovative sash lugs can be added to the exterior to create the authentic look, while maintaining modern tilting functionality for easy cleaning.

Talk to a Pella Rep for Pricing

Reserve - Traditional Double-Hung Window Features

    • Historic Architectural Integrity

      • Custom-Created for Your Project

        • Award-Winning Innovations

        Design Options

        Pella Reserve products offers exquisite wood types to enhance your home's design. Learn more about materials. And, we stand behind them with a Limited Lifetime warranty.

        Materials

          • pine wood

            Pine

            • unfinished mahogany corner section of a window

              Unfinished Mahogany

              • douglas fir wood window material

                Douglas Fir

              Materials

              Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

              Downloads & Specifications

              Design & Performance - Wood
              Specifications - Wood
              2D Cross Section - Wood
              Design & Performance - Clad/Wood
              Specifications - Clad/Wood
              2D Cross Section - Clad/Wood
              Design & Performance - Impact Resistant
              Specifications - Impact Resistant
              2D Cross Section - Impact Resistant
              2D Elevation - Wood
              2D Elevation - Clad/Wood
              2D Elevation - Impact Resistant
              3D & BIM - Clad/Wood
              3D & BIM - Wood
              Sell Sheets

              Available Summer 2024

              The Pella® Steady Set™ Interior Installation System Coming Soon on This Product

              It’s the first and only interior installation system designed to help ensure faster, safer and high-quality window install. Available on select Pella® Reserve™ and Pella® Lifestyle Series new construction wood windows.

              Get an Inside Look

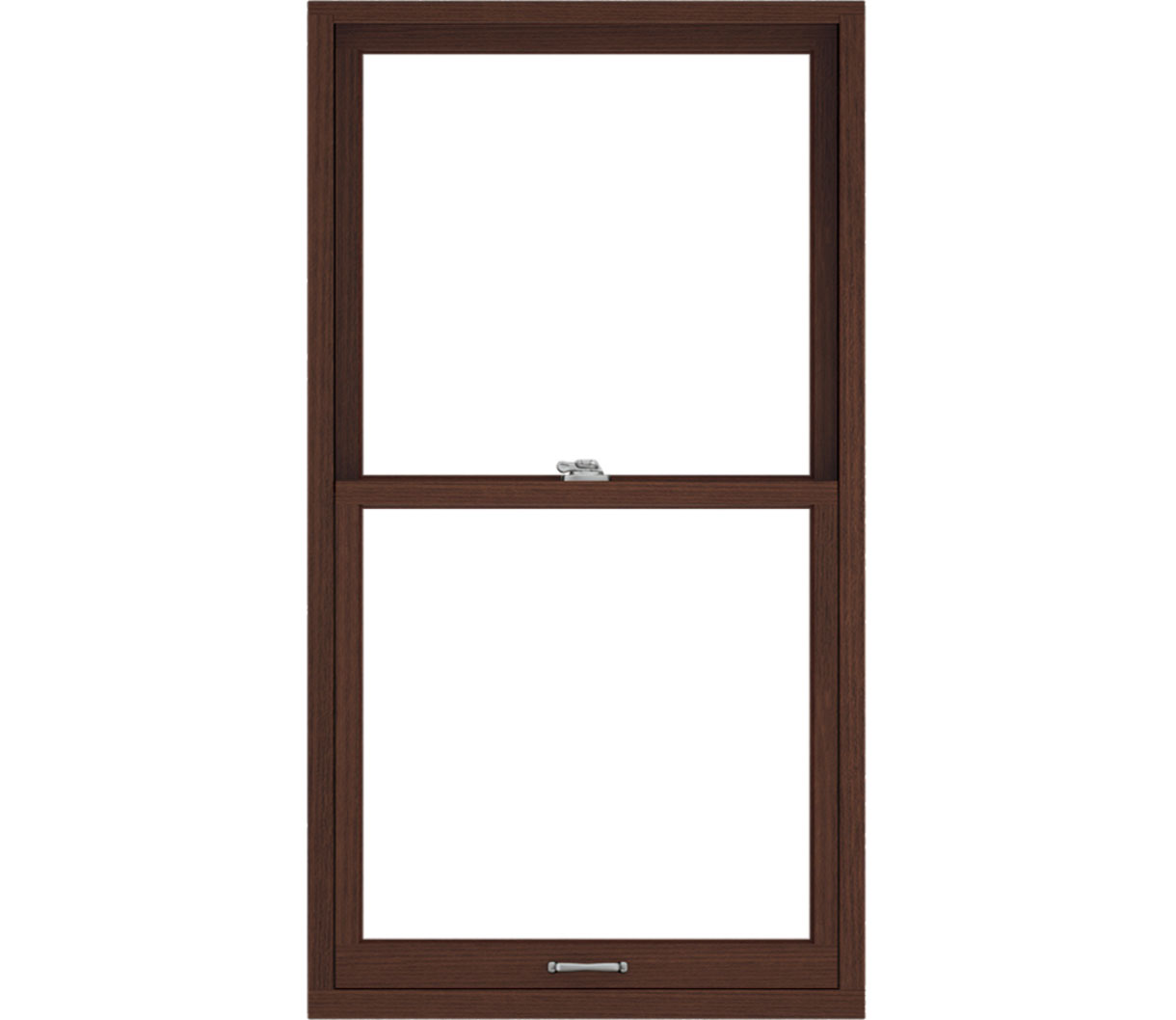

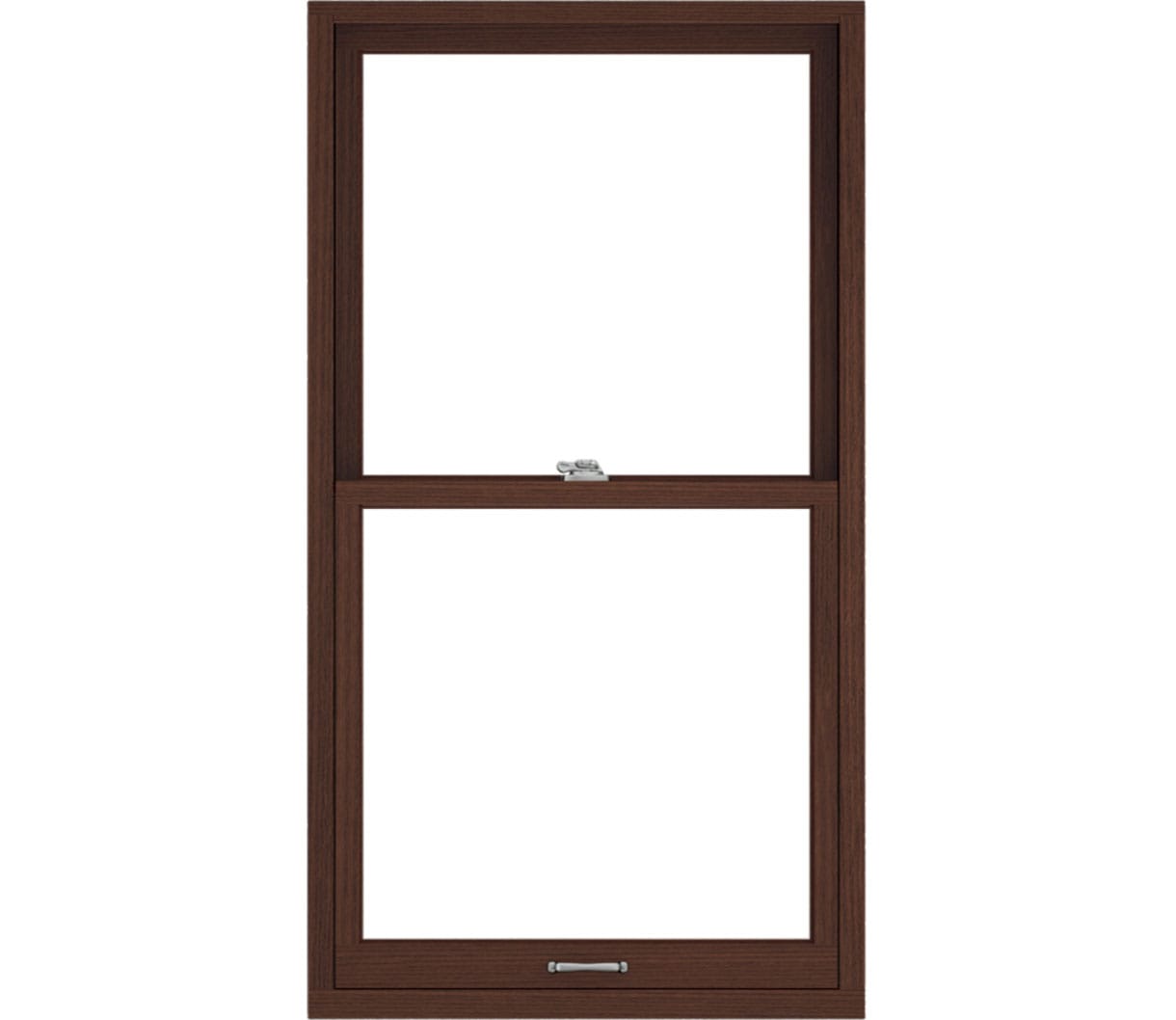

              • large double-hung cut out background

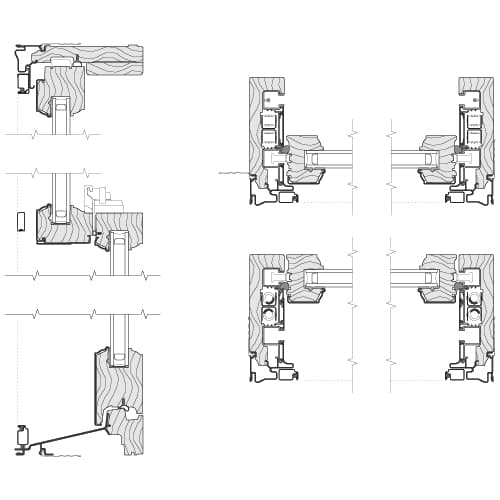

              • double hung cross section reserve traditional

              Reserve - Traditional Double-Hung Window Specs & Install Details

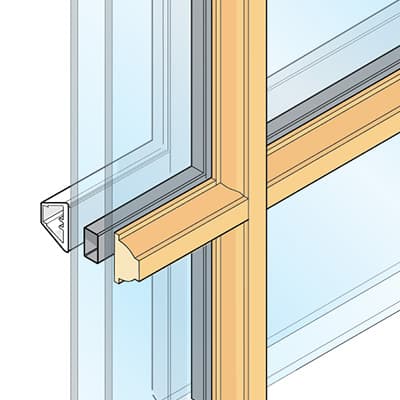

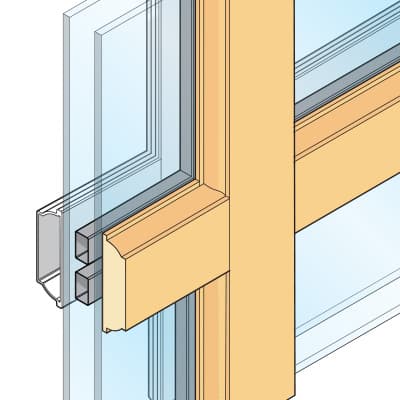

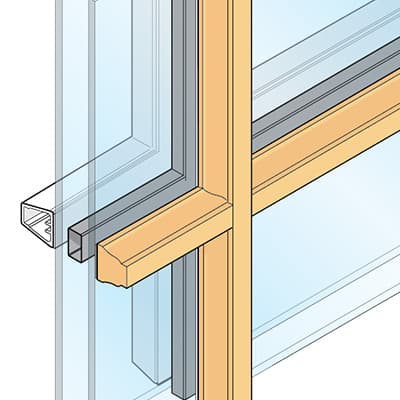

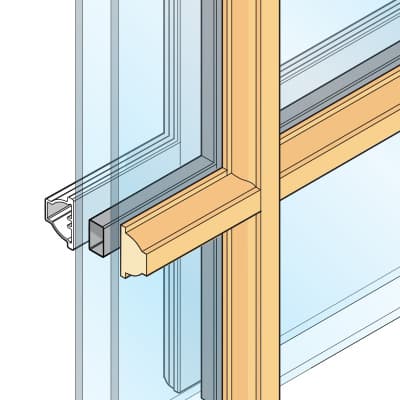

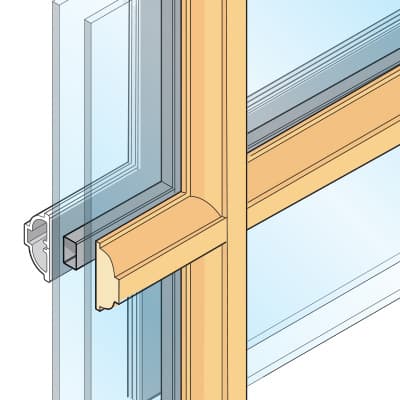

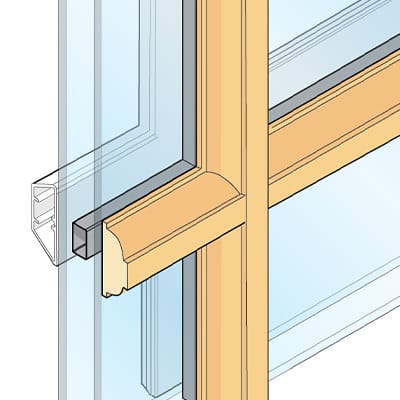

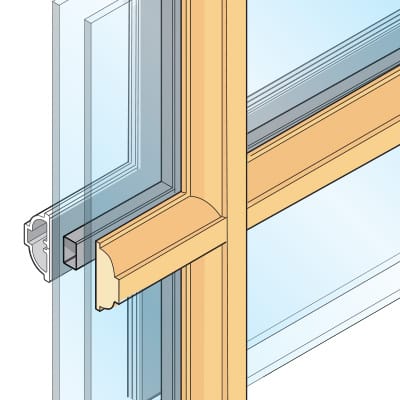

              • Exudes the tenets of traditional design with putty profiles, through-stile construction and Integral Light Technology® grilles
              • Performance rating of CW40-CW50 and STC of 28-35
              • Available in sizes up to 48” x 96” in 1/8” increments, with equal, cottage and custom splits
              • Optional self-storing Integrated Rolscreen appears when the double-hung window is opened and rolls away when it is closed
              • Fold-out Fin, Block Frame, EnduraClad Exterior Trim and Brickmould installation and frame options
              Frame
              • Components are assembled with screws, staples and concealed corner locks.
              • Overall frame depth is 5" (127mm) for a wall depth of 3-11/16" (94mm).
              • Optional factory applied jamb extensions available between 3-13/16" (97mm) and 9-3/16" (233mm).
              • Vinyl jamb liner with wood / clad inserts.
              • Optional factory installed fold-out installation fins with flexible fin corners. Optional factory-applied EnduraClad® exterior trim.
              Sash
              • Corners mortised and tenoned, glued and secured with metal fasteners.
              • Sash thickness is 1-7/8" (47mm).

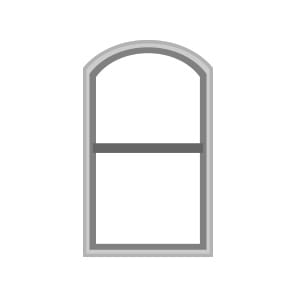

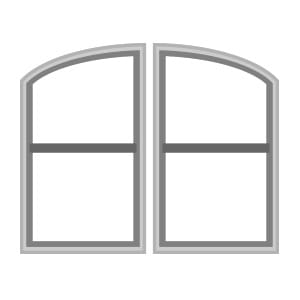

              • Upper sash has surface-mounted wash locks for easy tilt-in cleaning. Arch Head units have no wash locks
              • Lower sash has concealed wash locks in lower check rail allowing sash to tilt in for easy cleaning.
              • Simulated-Hung units have non-operable upper and lower sashes
              • Sash exterior profile is ogee or putty glaze, interior profile is ogee.
              Exterior
              • Aluminum clad exteriors shall be finished with EnduraClad® protective finish, in a multi-step, baked-on finish.
              • Aluminum clad exteriors shall be finished with EnduraClad Plus protective finish with 70% fluoropolymer resin in a multi-step, baked-on finish.
              Hardware
              • Galvanized block-and-tackle balances are connected to self-locking balance shoes which are connected to the sashes using zinc die cast terminals and concealed within the frame.

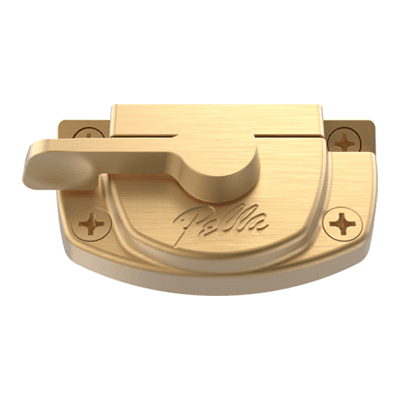

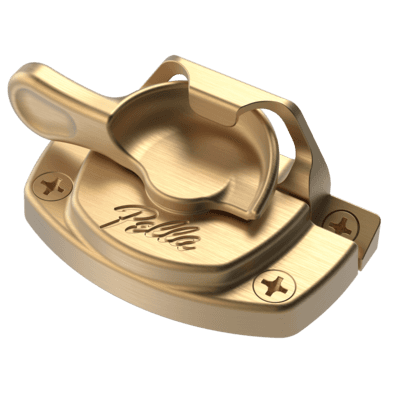

              • Sash lock- standard (cam-action, historic spoon-style, air-conditioner lock)
              • Simulated lock - Single-piece lock ties upper and lower sash together. When removed lower sash becomes operable

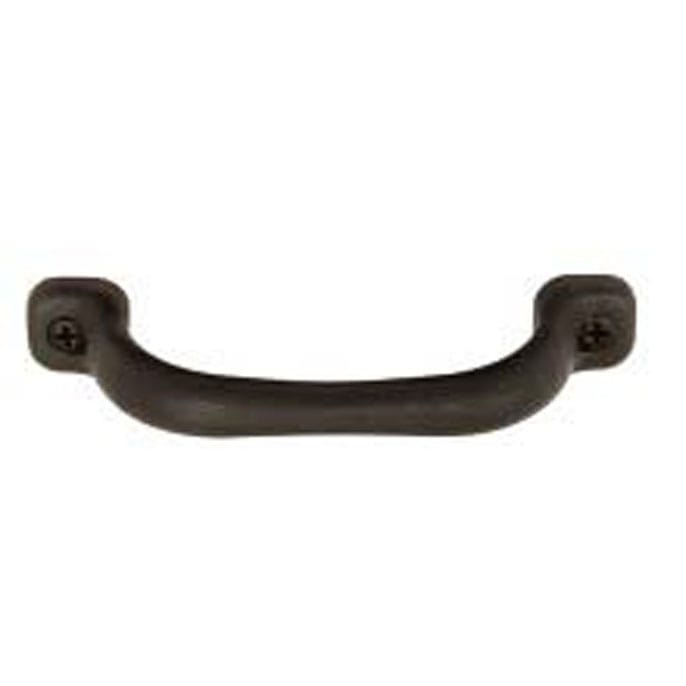

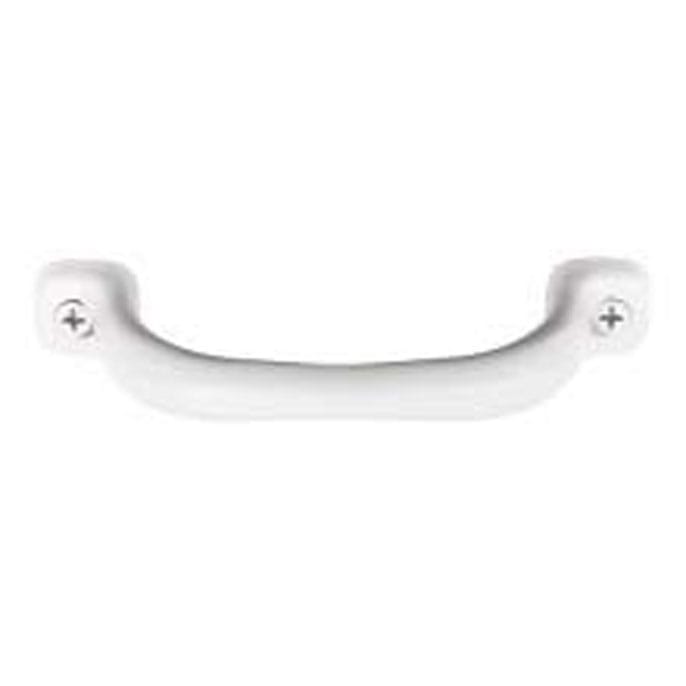

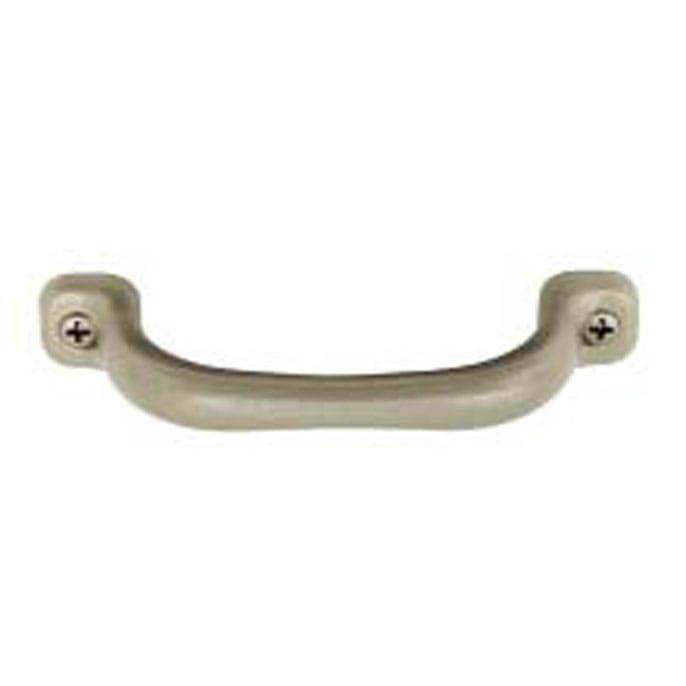

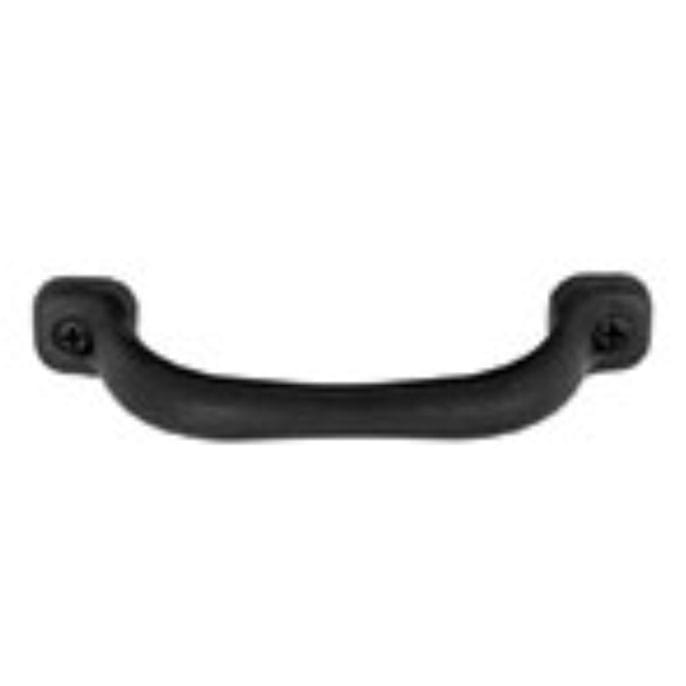

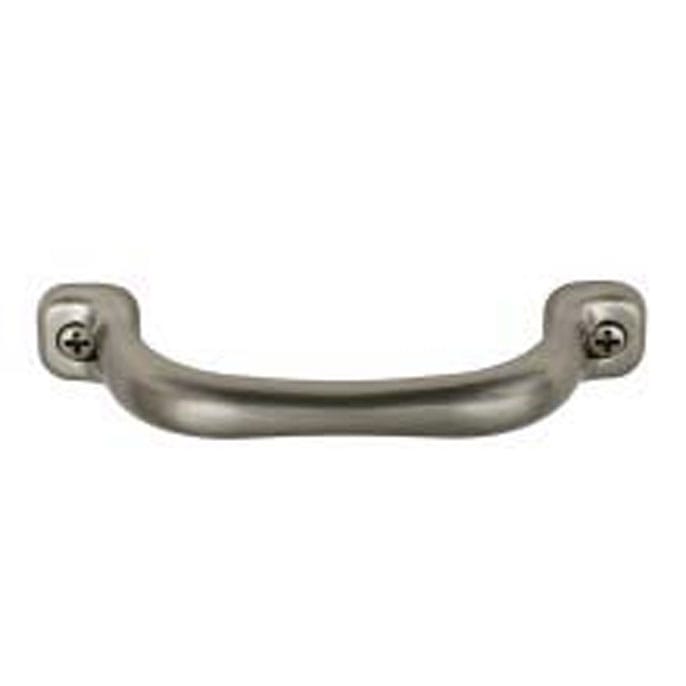

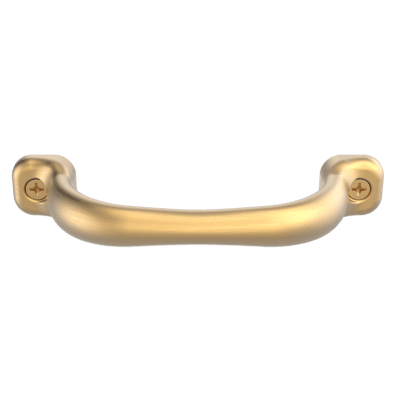

              • Two sash locks on units with frame width 37" and greater.  Optional sash lift furnished for field installation. Two lifts on units with frame width 37" and greater.

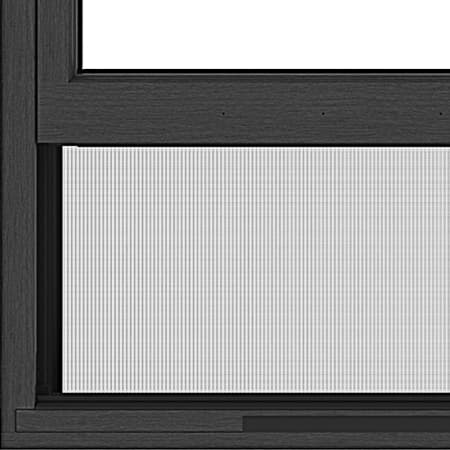

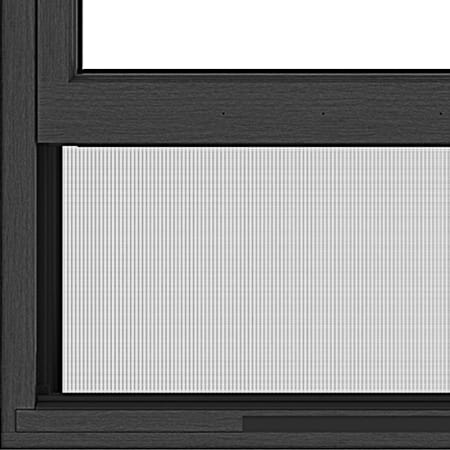

              Integrated Rolscreen®

              (For rectangular units only) Retractable screen integrated into lower sash or both upper and lower sash. Screen rollers are fixed and concealed within the frame, screen is held to the sash by magnets which release when the bottom sash is tilted for cleaning, and when the upper sash is opened past 18". InView Screen cloth, black vinyl-coated 18/18 mesh fiberglass screen cloth complying with ASTM D 3656 and the performance requirements of SMA 1201.

              Other Screens

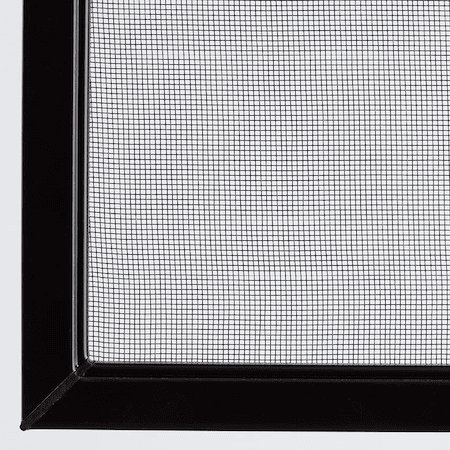

              • InView™ screens - black vinyl-coated 18/18 mesh fiberglass screen cloth complying with the performance requirements of SMA 1201. Full screen spreader bar placed on units > 37" width or > 65" height.
              • Vivid View® screens - PVDF 21 / 17 mesh, minimum 78 percent light transmissive screen. Full screen spreader bar placed on units > 37" width or > 65" height.
