Pella® Reserve™ – Traditional Wood Monumental-Hung Window

Make a grand statement with a Pine, Mahogany, or Douglas Fir Pella Reserve – Traditional monumental-hung window. Its expansive and oversized design makes the monumental-hung the largest double-hung window in the market. Available in double-hung, single-hung and simulated-hung options to meet the exacting needs of your vision and project.

  • Authentic spoon-lock hardware and Integral Light Technology® grilles complete the historically authentic look.
  • Our innovative tilting sash lugs provide rich historic detailing while providing modern day cleaning functionality.
  • Pella Reserve products have been reviewed and approved on a case-by-case basis by the National Park Service for use on projects with historic tax credits.

Talk to a Pella Rep for Pricing

Reserve - Traditional Monumental-Hung Window Features

    • Exceptional Historic Detailing

      • Custom Made for Your Unique Project

        • Best Limited Lifetime Warranty For Wood Windows19

        Design Options

        Pella Reserve products offers exquisite wood types to enhance your home's design. And, we stand behind them with a limited lifetime warranty. See written Limited Warranty for details, including exceptions and limitations.

        Materials

          • pine wood

            Pine

            • unfinished mahogany corner section of a window

              Unfinished Mahogany

              • douglas fir wood window material

                Douglas Fir

              Materials

              Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

              Downloads & Specifications

              Design & Performance - Wood
              Specifications - Wood
              2D Cross Section - Wood
              Design & Performance - Clad/Wood
              Specifications - Clad/Wood
              2D Cross Section - Clad/Wood
              3D & BIM
              Sell Sheets

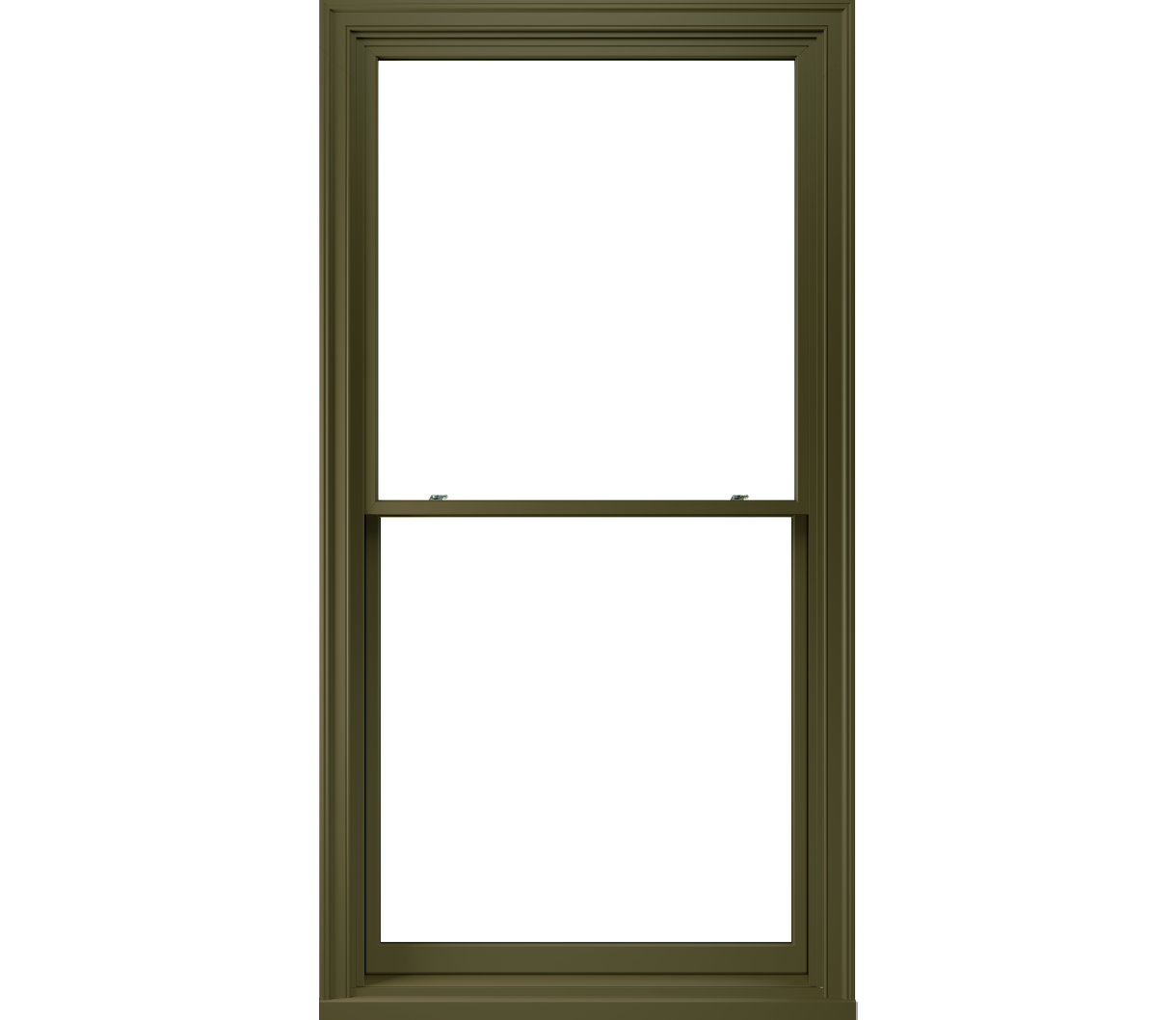

              • large cut out background of a reserve monumental hung window

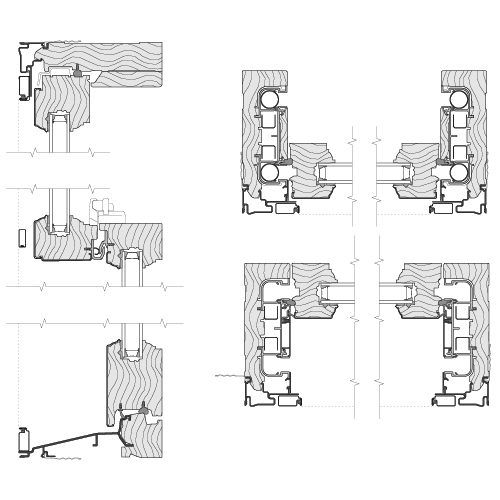

              • monumental hung window cross section

              Reserve - Traditional Monumental-Hung Window Specs & Install Details

              • Butt joinery and through-stile construction create authentic proportions and emulate historic window design
              • Performance rating of LC25-CW50 and STC of 29-34
              • Available in sizes up to 72” x 144” in 1/8” increments
              • Optional integrated security sensors maintain aesthetics, streamline security installation and ensure no warranty loss is caused by post-installation drilling
              • Installation and frame options include Fold-out Fin, Block Frame, EnduraClad Exterior Trim and Brickmould
              Frame
              • Components are assembled with screws, staples and concealed corner locks.
              • Vinyl Jamb liner includes wood/clad inserts.
              • Overall frame depth is 5-7/8" (149mm) for a wall depth of 4-9/16" (116mm).
              • Optional factory applied jamb extensions available from 4-9/16" (116mm) and 7-3/16" (183 mm) wall depths.
              Sash
              • Sash thickness is 2-1/4" (57mm).
              • Exterior sash profile is ogee, putty glaze, interior profile is ogee.
              • Double-hung upper sash (if sash weight ≤ 92 lbs.) has surface-mounted wash locks for tilt-in cleaning.
              • Double-hung and single-hung lower sash (if sash weight ≤ 92 lbs.) has concealed wash locks in lower check rail for tilt-in cleaning.
              Exterior
              • Aluminum clad exteriors shall be finished with EnduraClad® protective finish, in a multi-step, baked-on finish.
              • Aluminum clad exteriors shall be finished with EnduraClad Plus protective finish with 70% fluoropolymer resin in a multi-step, baked-on finish.
              Hardware
              • Galvanized block-and-tackle balances are attached to self-locking balance shoes connected to the sashes using zinc die cast terminals concealed within the frame
              • Class 5 hybrid balance attached to locking, non-locking balance shoes connected to the sashes using zinc die cast terminals and concealed within the frame.
              • Galvanized block-and-tackle balances combined with a Class 5 hybrid balance attached to non-locking balance shoes connected to the sashes using zinc die cast terminals and concealed within the frame.
              • All balances comply with AAMA 902 specification
              Other Screens
              • InView™ Screens - Full-screen (not available on units > 120" tall) black Vinyl-coated 18/18 mesh fiberglass screen cloth complying with the performance requirements of SMA 1201, set in a extruded (optional on clad exterior units < 84" height, standard on wood exterior units or clad exterior units >84") or standard aluminum frame fitted to outside of window, supplied complete with all necessary hardware. Full screen spreader bar placed on units > 37" width or > 65" height.
              • Vivid View® Screens - PVDF 21/17 mesh, minimum 78 percent light transmissive screen, set in an extruded (optional on clad exterior units < 84" height, standard on wood exterior units or clad exterior units >84") or standard aluminum frame fitted to outside of window, supplied complete with all necessary hardware Full screen spreader bar placed on units > 37" width or > 65" height.
