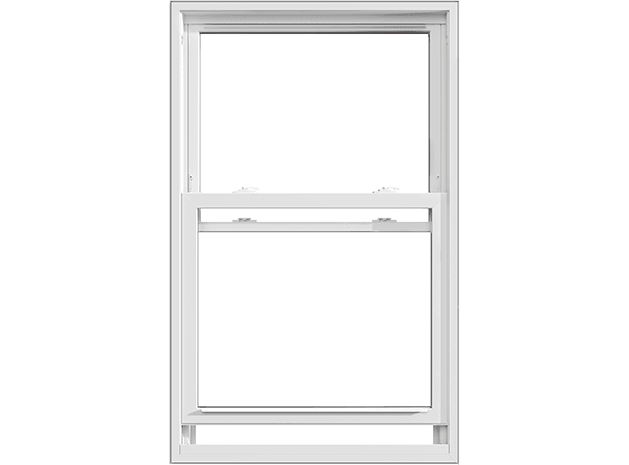

Pella® 250 Series Vinyl Double-Hung Window

Providing more of everything you love about vinyl, personalize your vinyl double-hung window to match your unique style. These windows feature two moveable tilting sashes for efficient ventilation and easy cleaning. Choose Pella 250 Series and rest easy knowing that you are getting a window that is safe and secure.

  • Low-maintenance Pella 250 Series vinyl double-hung windows will never need repainting.
  • Added security and peace of mind with frames 52% stronger than ordinary vinyl and a unique tamper prevention system that exceeds the most stringent requirements for forced entry.8
  • Energy-efficient dual- and triple-pane glass options to meet your design needs.
  • Product #200001

Configuration: 1-wide

Talk to a Pella Rep for Pricing

Pella 250 Series Double-Hung Window Features

Design Options

Solid-color frames feature White, Almond or Fossil color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

Solid Color Frames

    • white solid color frame for 350 series windows

      White

      • almond solid color frame for 350 series windows

        Almond

        • fossil solid color frame for 250 series windows

          Fossil

        Frame

        • Less visible sash corner seams – typical vinyl has build up.
        • Full-frame profile with edge detailing.
        • Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
        • Reinforced window frames are 52% stronger than ordinary vinyl.8
        • Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
        • Products are tested in state-of-the-art facilities.

        Pella 250 Series Double-Hung Window Specs & Install Details

        • Increase energy performance and structural strength with optional performance enhancements such as foam insulation and steel reinforcement
        • Performance class and grade R20-R50 and STC of 26 for dual pane windows and 28 for triple-pane windows
        • Available in sizes from 14-1/2" x 23-1/2” to 53-1/2” x 78”
        • Pella craftsmanship in a great-looking vinyl window that’s stronger and more energy efficient than ordinary vinyl
        • Installation options include Block Frame, Integral Fin, Fin with J-Channel11, Flush Flange10, 5/8" Flange Frame11

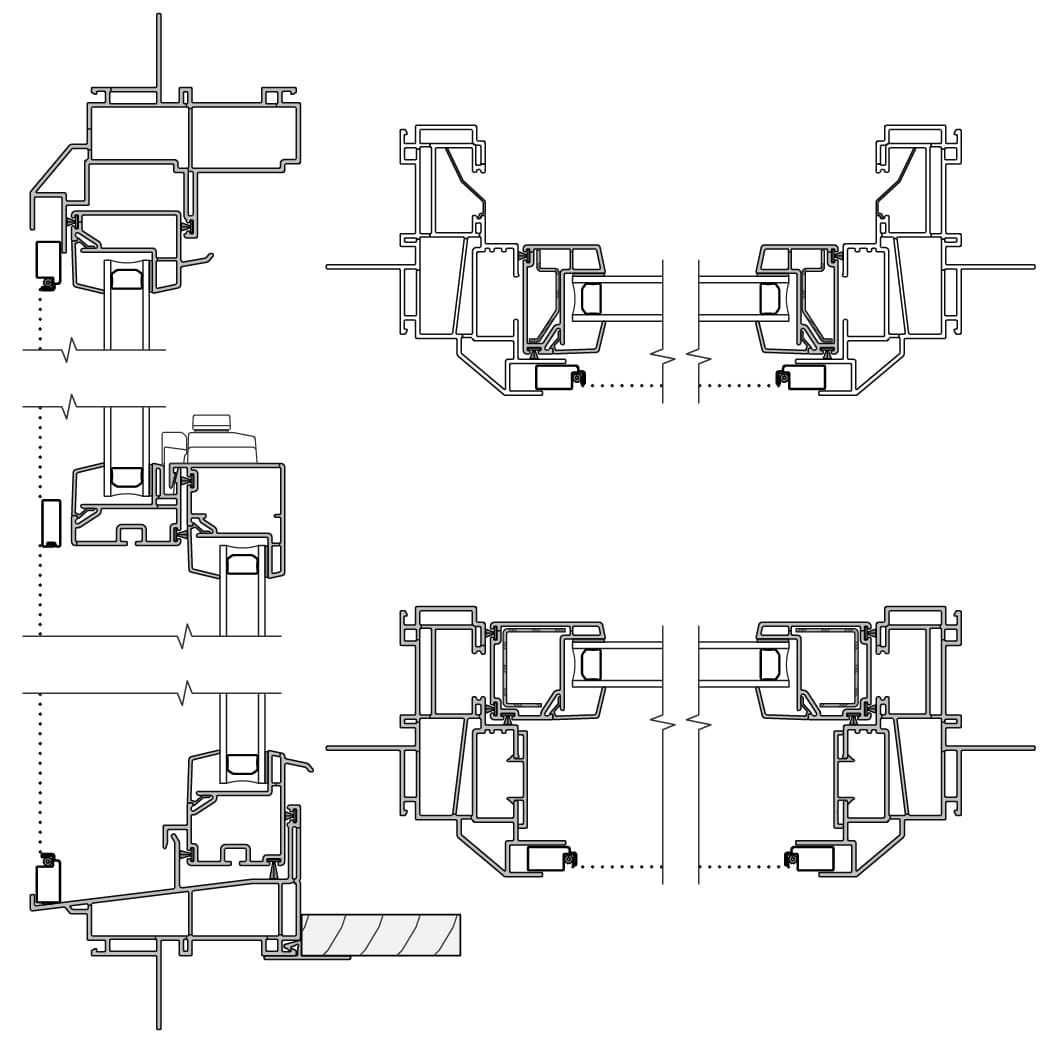

        Frame
        • Overall frame depth: 3-1/4" on all frame types.
        • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
        • Frame: 1-1/8" setback nail fin for 2-1/8" wall depth; Block frame for 3-1/4" wall depth; Integral 5/8" flange for 3" wall depth
        Sash
        • Sash members are extruded, rigid PVC, and are mitered and heat-fused to provide a fully welded corner assembly.
        • Includes an integral extruded sash lift as standard.
        • Contains sealed insulating glass.
        Weatherstripping

        Sash is weatherstripped around the sash perimeter with a fin-type, pile weatherstripping and vinyl wrapped foam weatherstrip.

        Glazing System
        • Quality float glass complying with ASTM C 1036.
        • Exterior face-glazed sealed insulating glass.
        • Dual-Pane or 1" Triple-Pane
        Hardware
        • Constant force balances are concealed within the frame and connected to the sash with a bracket which houses a stainless steel coil spring.
        • Upper and lower sashes are fully operable for ventilation.
        • Locks are factory-installed, zinc die cast, self-aligning, located on the checkrail. Two sash locks are installed on units with 29-1/2" or greater frame width.
        • Tilt latches are factory installed and are located on the checkrail of the lower sash and the top rail of the upper sash.

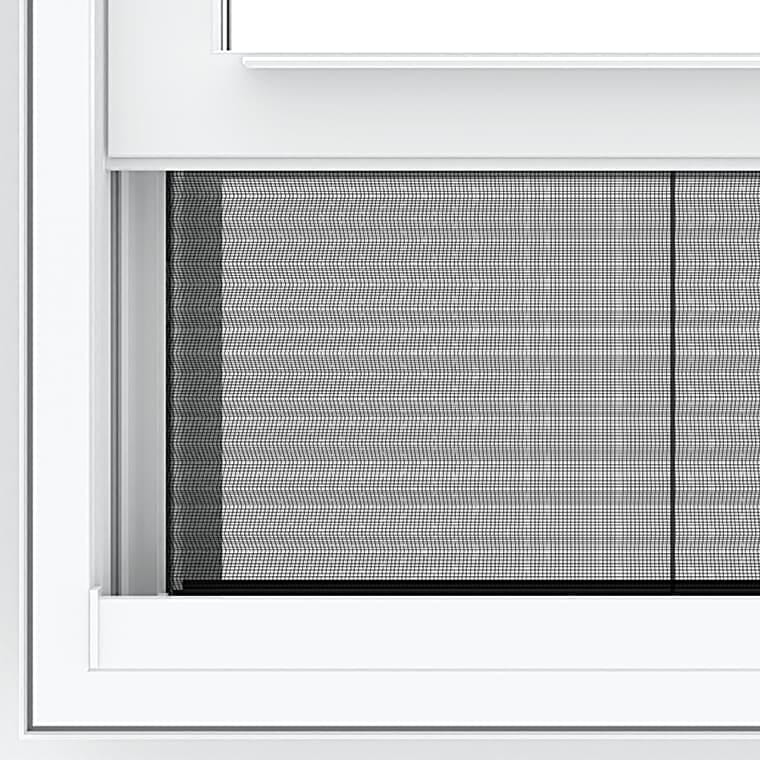

        Screens
        • Screens for windows with frame width >39" or frame height > 53-1/2" have a screen spreader bar.
        • Conventional Black Fiberglass
        • Black vinyl coated 18/16 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA 1201.

        Frequently Asked Questions

        FAQs about My Product

        FAQs about Purchasing Online

        250-sliding-door-beauty-couches

        Pella 250 Series

        Gain peace of mind with innovative and enhanced security and privacy features available on Pella 250 series windows. An optional AutoLock, available on double-hung, single-hung and sliding windows, automatically locks the window when it is shut — simply close the sash and confirm it latches.

        Compare Double-Hung Window
