Pella® Reserve™ – Traditional Wood Arched Window

Complete your perfect space with a Pella Reserve – Traditional wood or aluminum-clad wood arched window. This classic design showcases our unparalleled historic detailing with butt joinery, through-stile construction and the industry’s deepest sash dimension. Customize the elegant curve of this arched window to complement your individual style.

  • Features durable extruded aluminum-clad exteriors and EnduraGuard® advanced wood protection, which helps seal the wood, protecting against moisture, rot and decay.

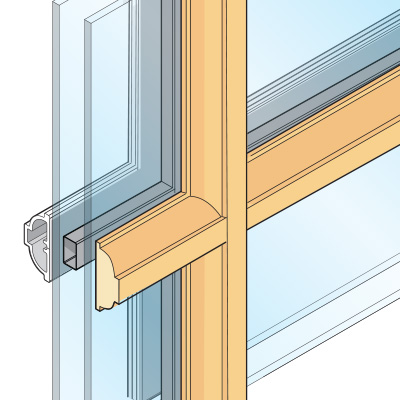

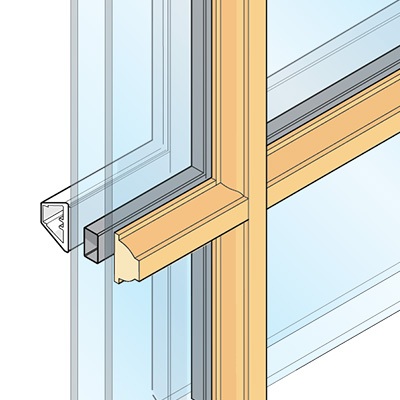

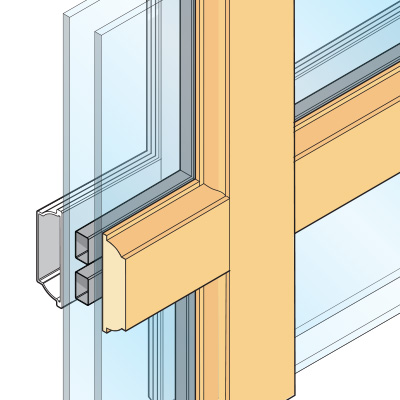

  • Innovative Integral Light Technology ® grilles deliver the authentic look of true divided light without sacrificing energy efficiency.
  • Optional triple-pane glass enhances energy efficiency and helps improve the comfort of your home.

Talk to a Pella Rep for Pricing

Reserve - Traditional Arched Window Features

    • Authentic Proportions and Intricate Profiles

      • Nearly Endless Customizations

        • Best Limited Lifetime Warranty For Wood Windows19

        Design Options

        Pella Reserve products offers exquisite wood types to enhance your home's design. Learn more about materials.

        And, we stand behind them with a limited lifetime warranty. See written Limited Warranty for details, including exceptions and limitations.

        Materials

          • pine wood

            Pine

            • unfinished mahogany corner section of a window

              Unfinished Mahogany

              • douglas fir wood window material

                Douglas Fir

              Materials

              Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

              Downloads & Specifications

              Design & Performance - Wood
              Specifications - Wood
              2D Cross Section - Wood
              Design & Performance - Clad/Wood
              Specifications - Clad/Wood
              2D Cross Section - Clad/Wood
              Design & Performance - Impact Resistant
              Specifications - Impact Resistant
              2D Cross Section - Impact Resistant
              2D Elevation - Wood
              2D Elevation - Clad/Wood
              2D Elevation - Impact Resistant
              3D & BIM
              Sell Sheets

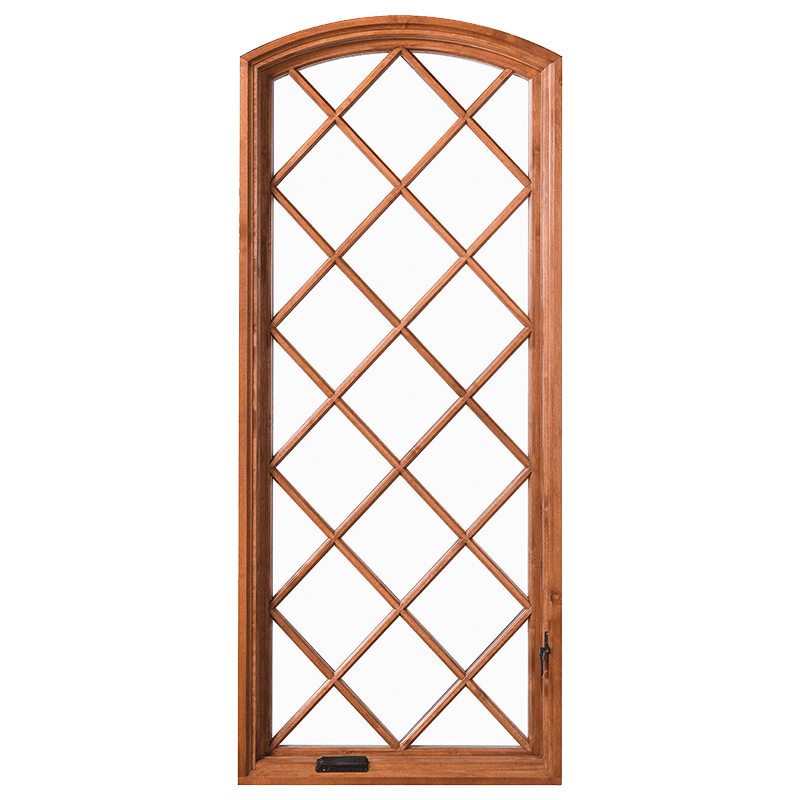

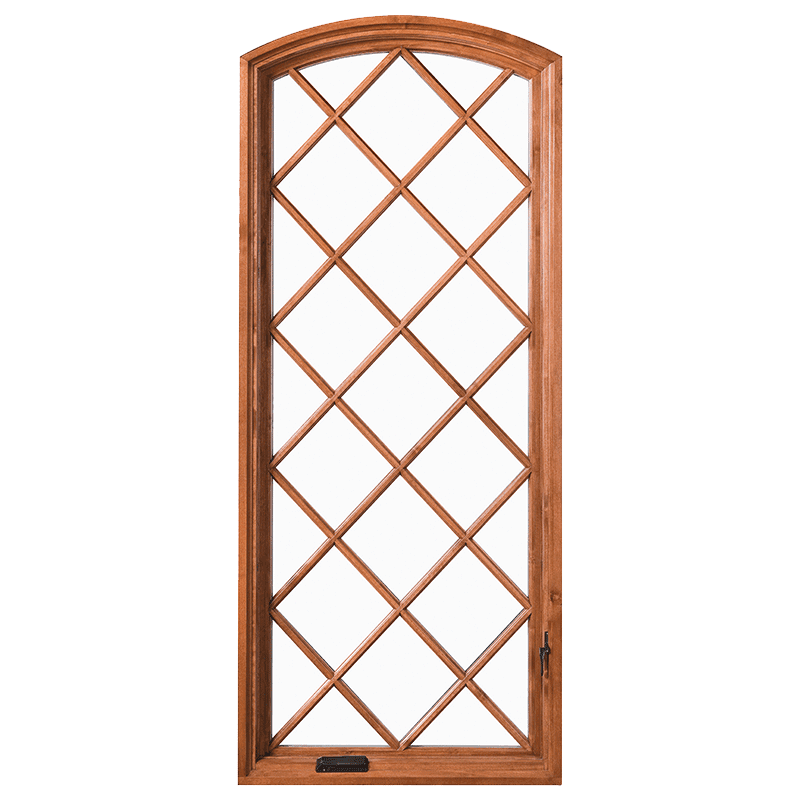

              • reserve traditional curved cob

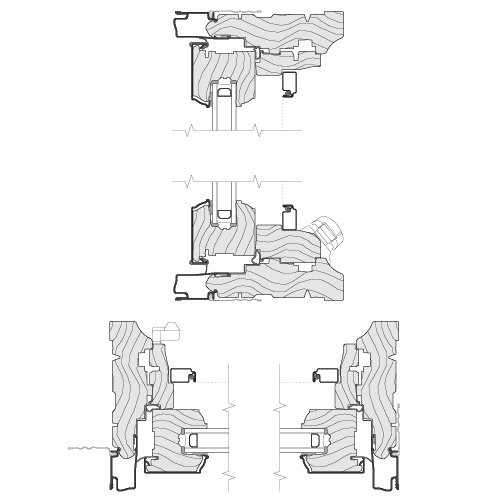

              • reserve traditional casement cross section

              Pella Reserve - Traditional Arched Window Specs & Install Details

              • Exude the tenets of traditional designs with the putty profile — recreated with historically accurate shapes
              • Curved shapes and angle top shapes, available in 1/8” increments
              • Fixed silhouette with butt joinery and through-stile construction
              • Installation and frame options include Fold-out Fin, Block Frame, EnduraClad Exterior Trim and Brickmould
              Curved Shapes - Fixed
              • Frame cannot exceed 96" in both directions.
              • For units with colored glazing (bronze, gray or green), frame cannot exceed 11' 0-3/4" in either direction.
              • Maximum frame < 54.5 ft2 (based on rectangular unit).
              Curved Shapes - Roto Operator with Side Pivot Hinge
              • Maximum frame size is 19.5 ft2 (based on rectangular unit).
              • Sash opening will be limited to the angle shown on chart below.
              • Units will not meet egress requirements.
              • Frame width cannot exceed hinge jamb height.
              • Unit must be hinged off of short jamb if arc height (Y) divided by arc width (W) is greater than 0.364".
              • Unit is not valid if arc height (Y) is greater than arc width (W). Partial units must be true half springlines to vent (R = W).
              Custom Stile and Rail Widths
              • The dimension shown can vary from 1-7/8" to 5-3/4" (on 1/8" increments).
              • Any members meeting at an angle not equal to 90° and springline must be the same width.
              • Bottom rail available with A dimension from 1-7/8" to 15" (on 1/8" increments).
              Hardware
              • Optional factory applied limited opening hardware available for vent units in stainless steel; nominal 3" opening.
              • Optional factory applied window opening control device. Device allows window to open less than 4" with normal operation, with a release mechanism that allows the sash to open completely
              SureLock® System

              A single handle locking system operates positive-acting arms that reach out and pull the sash into a locked position: one operating lock installed on units with frame height 29" and less, two unison operating locks installed on units with frame height over 29".

              InView™ Screens
              • Vinyl-coated 18/18 mesh fiberglass screen cloth complying with the performance requirements of SMA 1201, set in aluminum frame fitted to inside of window, supplied complete with all necessary hardware.
              • Screen frame finish is baked enamel, wrapped in wood veneer, factory prefinished stain to match interior finish.
