Pella® 250 Series Vinyl Sliding Window

Pella® 250 Series Vinyl Sliding Window

4.28

starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
2018 Reviews

Sliding windows glide open and closed horizontally for easy access to fresh air. Pella 250 Series sliding windows are made of our exclusive vinyl formula, and are performance tested for excellent weathering, durability and color retention. They deliver more of everything you love about vinyl — enhanced energy efficiency, exterior color options, dual-color frames and enhanced security features.

  • Low-maintenance sash rollers for easy, smooth operation and enhanced energy efficiency.
  • Sliding windows with triple-pane glass are 62% more energy efficient than a single-pane window and offer optional foam insulation for even better energy performance.7
  • Standard, automatically locking hardware provides enhanced security and peace of mind.
Purchasing Options
Based on

Free In-Home Consultation

Limited appointments available

Schedule Consultation

Visit your Pella Showroom

There are no showrooms within 200 miles of this location.

See All Locations

Pella 250 Series Sliding Window Features

  • Exceptional Everyday Performance

  • Enhanced Security Options

  • High-Quality, Easy-Care Vinyl

Design Options

Solid-color frames feature White, Almond or Fossil color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

Solid Color Frames

  • white solid color frame for 350 series windows

    White

  • almond solid color frame for 350 series windows

    Almond

  • fossil solid color frame for 250 series windows

    Fossil

Frame

  • Less visible sash corner seams – typical vinyl has build up.
  • Full-frame profile with edge detailing.
  • Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
  • Reinforced window frames are 52% stronger than ordinary vinyl.8
  • Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
  • Products are tested in state-of-the-art facilities.

Downloads & Specifications

Design, Performance & Size Tables

Specifications

2D Cross Section

2D Elevation

3D & BIM

Product Literature

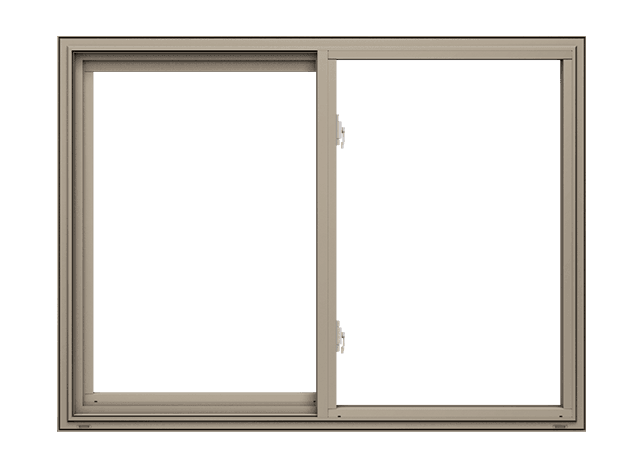

  • 250-sliding-window-cob-white

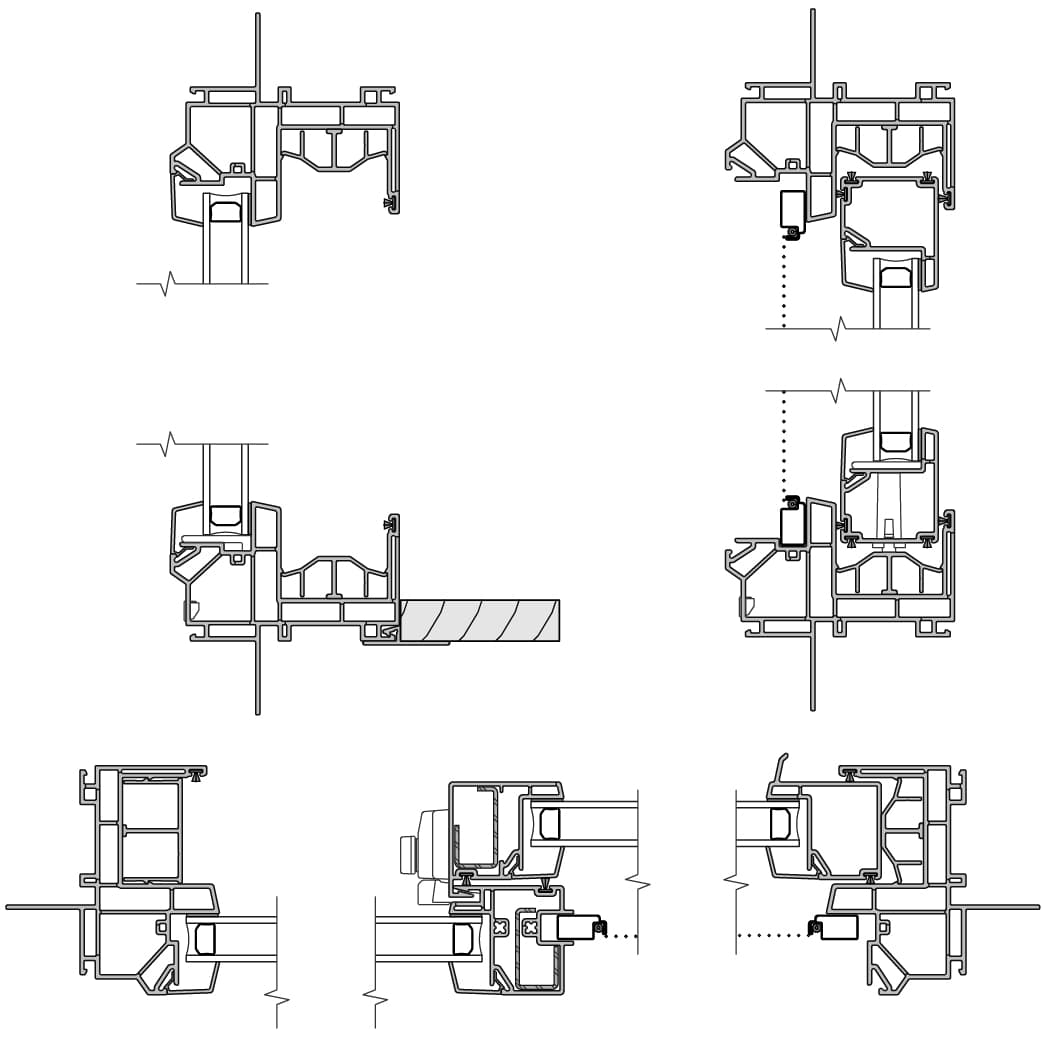

  • 250 sliding window cross section

Pella 250 Series Sliding Window Specs & Install Details

  • Auto-locking hardware available for added convenience and peace of mind
  • Large and unique factory-mulled window combinations arrive ready for installation
  • Performance class and grade R25-R50 and STC of 25 for dual-pane windows and 28 for triple-pane windows
  • Available in sizes from 21-1/2" x 11-1/2” to 120” x 72” in the West region and 21-1/2" x 11-1/2” to 108” x 62” in the East region
  • Installation options include Block Frame, Integral Fin, Fin with J-Channel11, Flush Flange10, 5/8" Flange Frame11
Frame
  • Overall frame depth: 3-1/4" on all frame types.
  • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
  • Frame: 1-1/8" setback nail fin for 2-1/8" wall depth, Block frame for 3-1/4" wall depth, Integral 5/8” flange for 3" wall depth
  • Interior and exterior frame surfaces are extruded rigid PVC.
Sash
  • Sash members are extruded, rigid PVC and are mitered and heat-fused to provide a fully welded corner assembly.
  • Includes an integral extruded sash slide.
  • Contains sealed insulating glass.
Weatherstripping

Sash is weatherstripped around the sash perimeter with a fin-type, pile weatherstripping. Glazing System

Interior/Exterior
  • Window frame and sash members are exterior, consisting of a solar reflective coating exceeding AAMA 307 test requirements, with White integral color extruded throughout the profiles on the interior.
  • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
Glazing System
  • Quality float glass complying with ASTM C 1036.
  • Exterior face-glazed sealed insulating glass.
  • Dual-Pane or 1" Triple-Pane
Hardware
  • Locks are factory-installed, zinc die cast, self aligning, located on the checkrail.
  • One sash lock is installed on units with frame heights less than 36". One or two sash locks may be chosen on units with frame heights greater than or equal to 36"

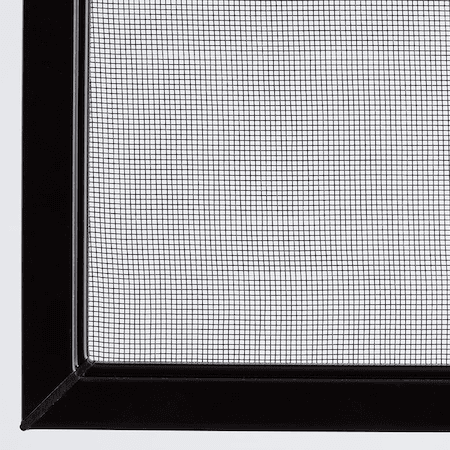

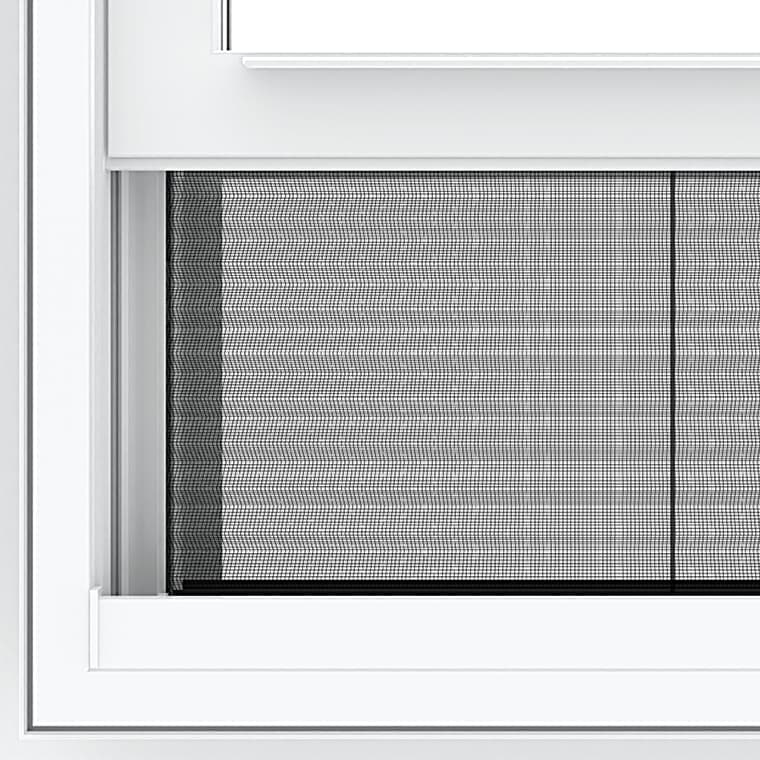

Screens
  • Set in aluminum frame and fitted to exterior
  • Conventional Black Fiberglass
  • Black vinyl coated 18/16 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA 1201.
Additional Hardware Options
  • Optional limited opening hardware available for vent units in extruded vinyl to match the unit; nominal 3-3/4" opening.
  • Optional window opening control device available for field installation. Device allows window to open less than 4” with normal operation, with a release mechanism that allows the sash to open completely. Complies with ASTM F2090-10.

250 Series Reviews

starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
See All Reviews

  • February 24, 2026

    starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
    Why Choose Pella
    We opted to purchase our Pella door directly from Pella (vs. from a big box home supply store) because of the expertise of its installers (per the salesperson) and Pella's guarantee of its products.
    Memorable Aspects
    We were surprised that we had to wait so long for the installation of the door (door ordered in Nov. but not installed until early Feb.). We also financed the door through GreenSky and did not expect that payments would be due to them upon order vs. upon installation.
    Lynne R.

  • February 24, 2026

    starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
    Why Choose Pella
    The employee discount and the ease of Pella handling everything from start to finish.
    Memorable Aspects
    The instalation crew was second to none. There is nothing negative that can be said about them.
    Donald P.

  • February 23, 2026

    starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
    Why Choose Pella
    Price was right
    Michael S.
  • See what our customers are saying
    Get honest feedback from real customers who have worked with Pella.
    See All Reviews

Frequently Asked Questions

FAQs About my Product

Are sliding windows energy efficient?

Yes, most sliding windows are energy efficient. Energy efficiency is dependent on a number of factors including the material of the window, the type of glass and the number of moving parts.

How do sliding windows open?

Sliding windows glide sideways on a track from either the left or the right side. One operable sash overlaps the other stationary sash when opened.

What are the benefits of replacing my windows?

Energy efficiency, reduced noise and curb appeal are among the key benefits of replacement windows.

How do you measure for replacement windows?

When it comes to measuring your windows for replacement, remember to measure the product width and height. Follow these instructions on how to measure windows and get the most accurate dimensions.

FAQs about Purchasing Online

For online orders, what is your policy for returns and products damaged during shipping?

We’re committed to customer satisfaction. If the product you ordered online is damaged during shipping or you do not receive exactly what you ordered, we want to make it right by refunding you in full or sending you a new product. We do not accept returns of undamaged made-to-order products in which a buyer ordered the incorrect size or color, or decided the product was no longer needed. See pella.com/warranty for additional details and exclusions. If you have questions about returns and refunds, please email shop@pella.com.

Is shipping free when I order online?

Free shipping is included for all online orders of parts. Windows and doors ordered online include free shipping to your local Pella branch where you can then pick up your order. For an additional fee, you can have windows and doors delivered directly to your jobsite.

How long will it take to receive my online order?

For online orders, a local Pella team member will call within 2-14 weeks to schedule pick up or delivery depending on delivery method and production timing. The time to receive your order varies since all products are made to order based on your specifics.

Who will install the products I ordered?

When you receive your order, you can either install the product on your own with help from our installation kit. Or, hire a Pella Certified Contractor® to take care of installation for you. They are trained and certified to install Pella products.

What payments do you accept online?

For online orders, we accept all major credit cards including American Express, Visa, Discover and Mastercard.

See All Window FAQs
White vinyl windows on a dark blue wall looks out to a large green backyard and houses in the distance.

Pella 250 Series

Tested to meet or exceed industry standards, you can trust Pella 250 Series windows to perform. We not only test the entire window for strength and durability; we test individual parts — to help make sure they exceed industry requirements and our customers’ expectations. We conducted more than 1,000 rigorous performance tests on Pella 250 Series product designs, so you can choose them with confidence — they are proven to look great and last for years.
