Pella® 250 Series Vinyl Picture Window

Pella 250 Series vinyl picture windows are non-operable and sealed closed, making them incredibly energy efficient. They're made from our exclusive vinyl formula and available with our most popular features and options, like grilles-between-the-glass, triple-pane glass and more exterior colors.

  • Resist warping and twisting with precision welded frames that are 52% stronger than ordinary vinyl.8
  • Upgrade to triple-pane glass for improved energy efficiency.
  • Multiple insulating frame chambers to improve your home’s comfort.
  • Product #200006

Talk to a Pella Rep for Pricing

Pella 250 Series Picture Window Features

    • Stronger Frames Than Ordinary Vinyl

      • High-Quality Vinyl

        • Exceptional Performance

        Design Options

        Solid-color frames feature White, Almond or Fossil color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

        Solid Color Frames

          • white solid color frame for 350 series windows

            White

            • almond solid color frame for 350 series windows

              Almond

              • fossil solid color frame for 250 series windows

                Fossil

              Frame

              • Less visible sash corner seams – typical vinyl has build up.
              • Full-frame profile with edge detailing.
              • Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
              • Reinforced window frames are 52% stronger than ordinary vinyl.8
              • Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
              • Products are tested in state-of-the-art facilities.

              Downloads & Specifications

              Design & Performance
              Specifications
              2D Cross Section
              2D Elevation
              3D & BIM
              Sell Sheets

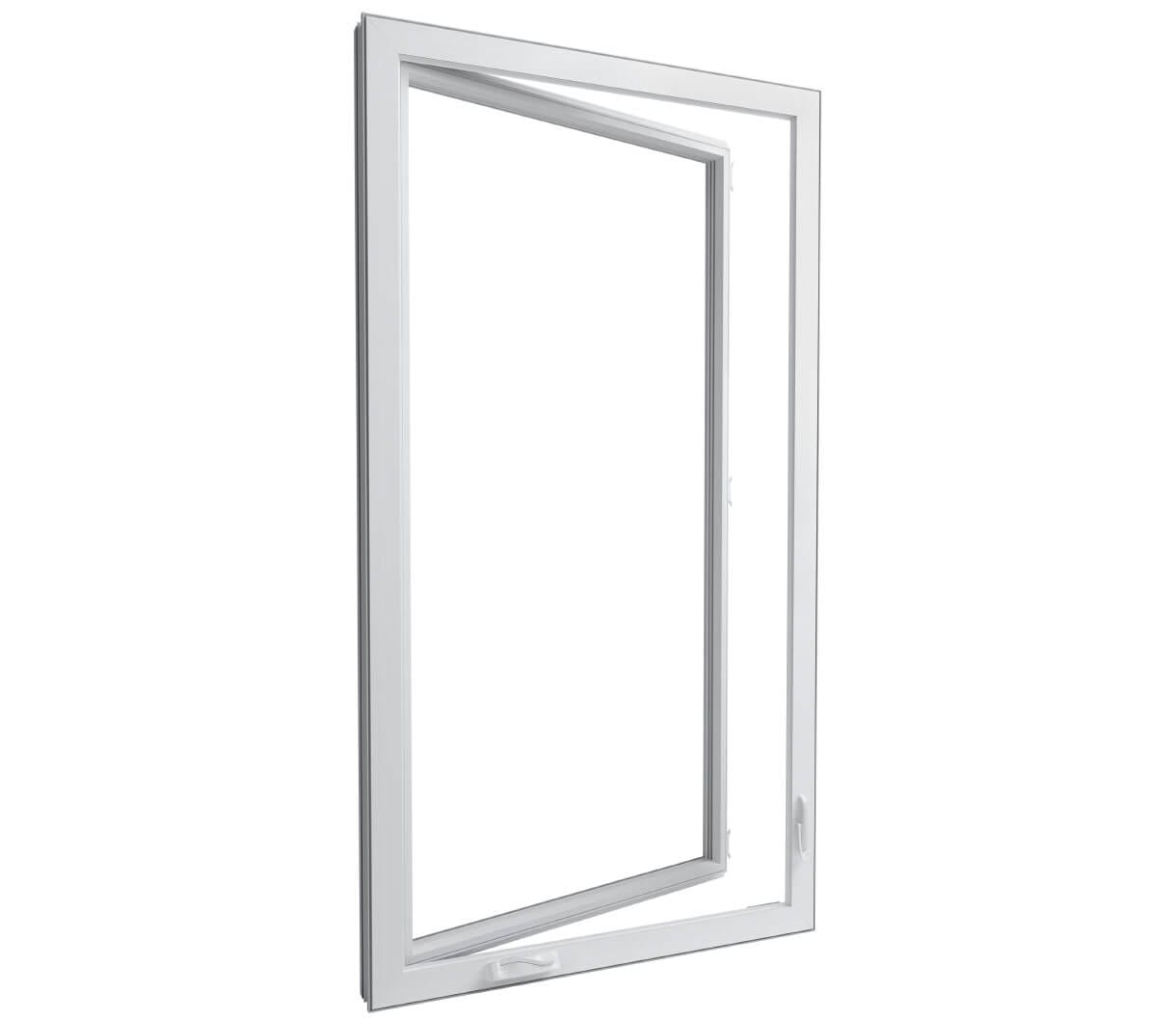

              • 250-casement-cob-large

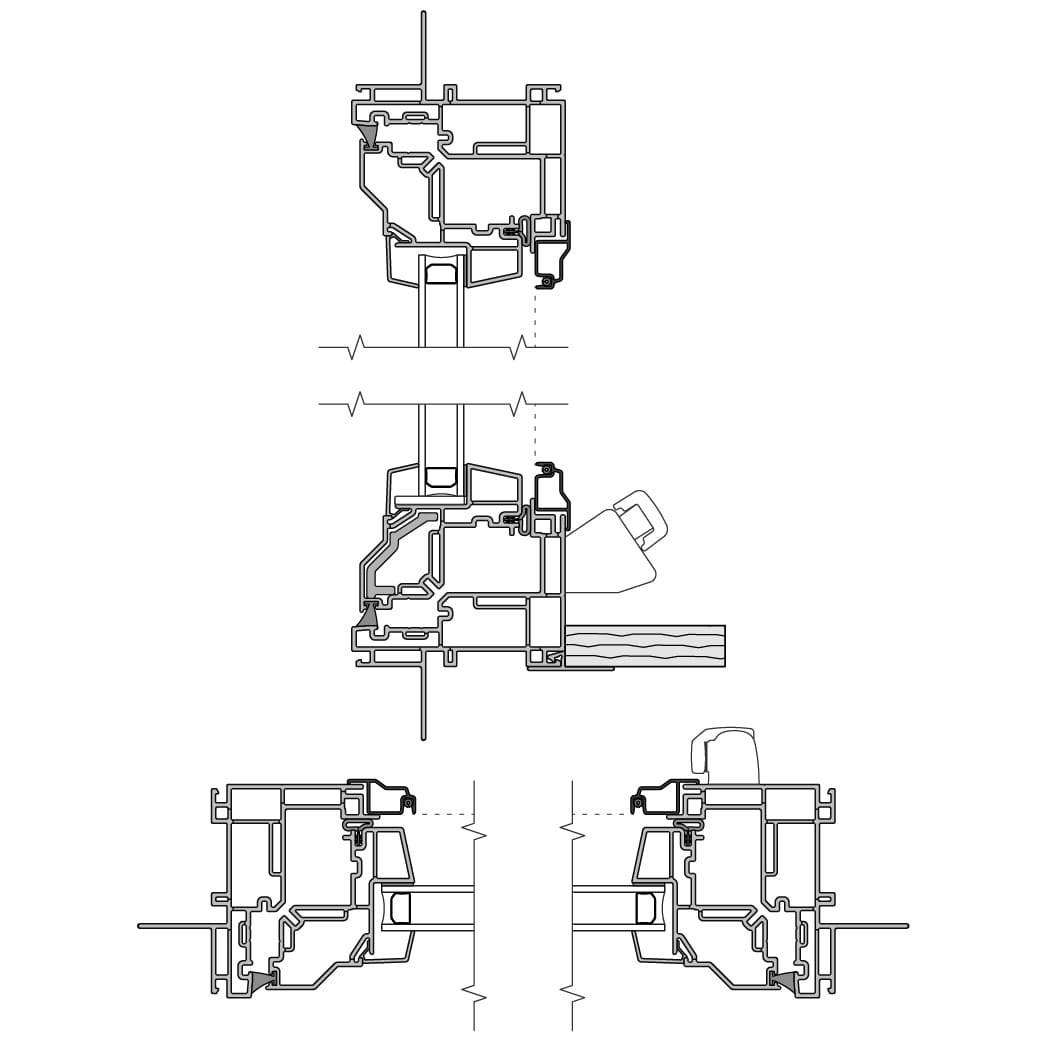

              • 250 casement window cross section

              Pella 250 Series Fixed Frame Window Specs & Install Details

              • Optional triple-pane glass helps improve energy efficiency and sound control
              • Low-maintenance, easy-care vinyl frames available in solid- or dual-color frames mean no more painting, staining or refinishing
              • Performance class and grade CW30-50 and STC of 26-27
              • Dual- and triple-pane designs available in sizes from up to 108” x 108” with a maximum of 40 sq. ft.
              • Installation options include Block Frame, Integral Fin, Fin with J-Channel11, Flush Flange10, 5/8” Flange Frame11
              Frame
              • Overall frame depth: 3-1/4" on all frame types.
              • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
              • Frame: 1-1/8" setback nail fin for 2-1/8" wall depth; Block frame for 3-1/4" wall depth; Integral 5/8" flange for 3" wall depth
              Interior/Exterior
              • Window frame and sash members consist of a solar reflective coating exceeding AAMA 307 test requirements.
              • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
              Glazing System
              • Quality float glass complying with ASTM C 1036.
              • Exterior face-glazed sealed insulating glass.
              • Dual-Pane insulating glass or 1" Triple-Pane
              Grilles
              • Grilles-Between-the-Glass - aluminum grilles permanently installed between the glass.  Interior grille matches interior frame.
              • Simulated-Divided-Light - 7/8" contoured aluminum grilles permanently bonded to the interior and exterior of glass. Available only on units glazed with Dual Pane insulating glass.

              Frequently Asked Questions

              FAQs about My Product

              FAQs about Purchasing Online

              See All Window FAQs
              250-sliding-door-beauty-couches

              Pella 250 Series

              Pella 250 Series picture windows deliver exceptional energy and weather performance for your home. With multi-chambered frames and optional triple-pane glass and foam insulation, you can trust these windows to help keep your home comfortable no matter the weather.
