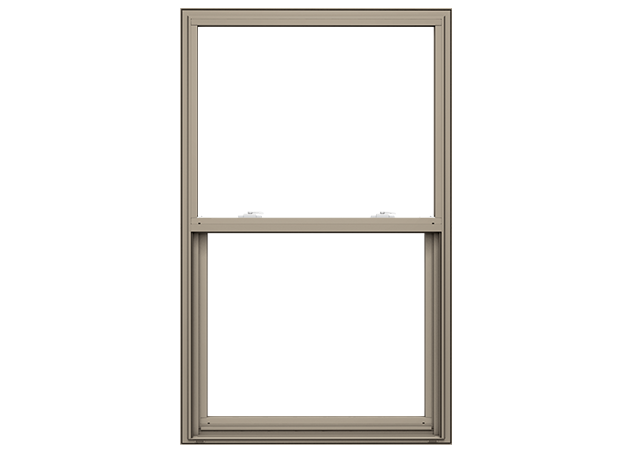

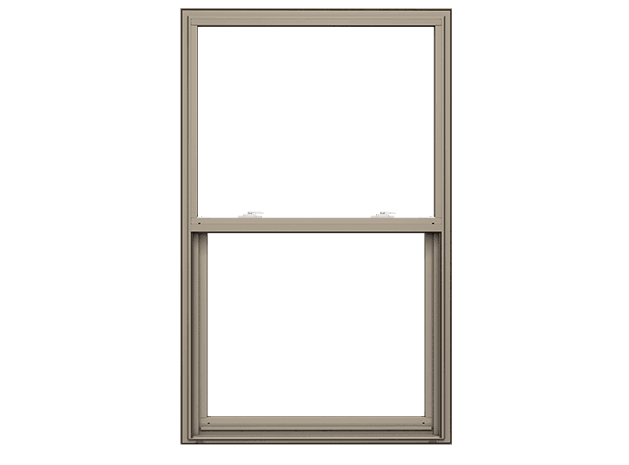

Pella® 250 Series Vinyl Single-Hung Window

Single-hung windows feature a bottom sash that opens and closes for ventilation, and a top sash that remains stationary. With smart, energy-efficient choices and the most features and options of our vinyl products, Pella 250 Series single-hung windows are the perfect addition to your home.

  • Protect your home from intruders with a unique tamper prevention system that exceeds the most stringent requirements for forced entry.
  • No painting or refinishing necessary with solid color throughout the vinyl, and 52% stronger frames than ordinary vinyl for long-lasting beauty.8
  • Offering energy-efficient options and an exclusive weather repel system that helps channel water away from the home.
  • Product #200002

Configuration: 1-wide

Talk to a Pella Rep for Pricing

Pella 250 Series Single-Hung Window Features

Design Options

Solid-color frames feature White, Almond or Fossil color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

Solid Color Frames

    • white solid color frame for 350 series windows

      White

      • almond solid color frame for 350 series windows

        Almond

      Frame

      • Less visible sash corner seams – typical vinyl has build up.
      • Full-frame profile with edge detailing.
      • Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
      • Reinforced window frames are 52% stronger than ordinary vinyl.8
      • Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
      • Products are tested in state-of-the-art facilities.

      Downloads & Specifications

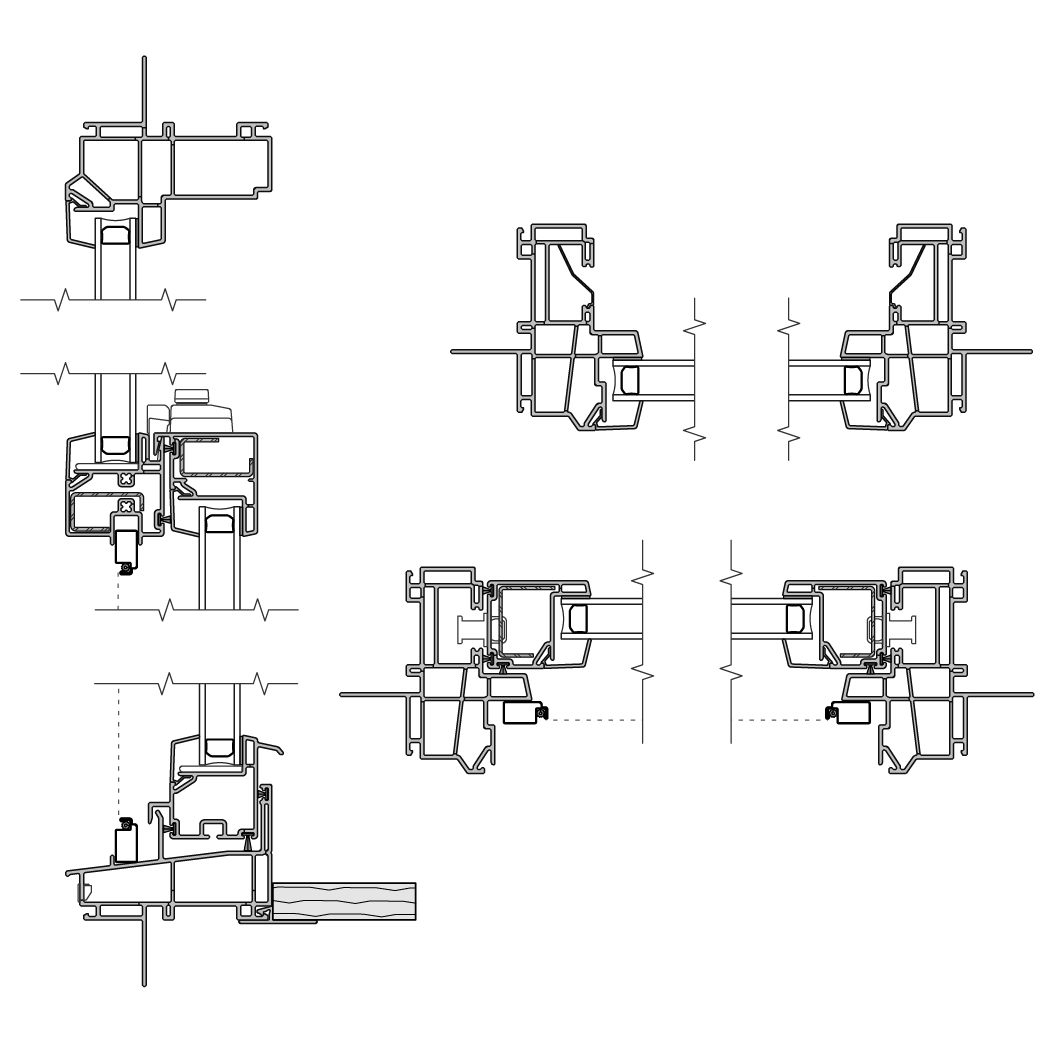

      Pella 250 Series Single-Hung Window Specs & Install Details

      • Pella's precision welding process creates more durable products that resist warping or twisting over time and are 52% stronger than ordinary vinyl8
      • Performance class and grade R35-R50 and STC of 25 for dual-pane windows and 28 of triple-pane windows
      • Available in sizes from 14-1/2" x 23-1/2” to 53-1/2” x 77-1/2”
      • Pella 250 Series single-hung windows have been awarded the ENERGY STAR Most Efficient Mark in 2020
      • Installation options include Block Frame, Integral Fin, Fin with J-Channel11, Flush Flange10, 5/8" Flange Frame11

      Frame
      • Overall frame depth: 3-1/4" on all frame types.
      • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
      • Frame: 1-1/8" setback nail fin for 2-1/8" wall depth; Block frame for 3-1/4" wall depth; Integral 5/8" flange for 3" wall depth
      Sash
      • Sash members are extruded, rigid PVC, and are mitered and heat-fused to provide a fully welded corner assembly.
      • Includes an integral extruded sash lift as standard.
      • Contains sealed insulating glass.
      Weatherstripping

      Sash is weatherstripped around the sash perimeter with a fin-type, pile weatherstripping and vinyl wrapped foam weatherstrip.

      Glazing System
      • Quality float glass complying with AS™ C 1036.
      • Exterior face-glazed sealed insulating glass.
      • Dual-Pane insulating glass or 1" Triple-Pane
      Hardware
      • Constant force balances are concealed within the frame and connected to the sash with a bracket which houses a stainless steel coil spring.
      • Locks are factory-installed, zinc die cast, self-aligning, located on the checkrail.
      • Two sash locks are installed on units with 29-1/2" or greater frame width.
      • Tilt latches are factory installed and are located on the checkrail of the lower sash.

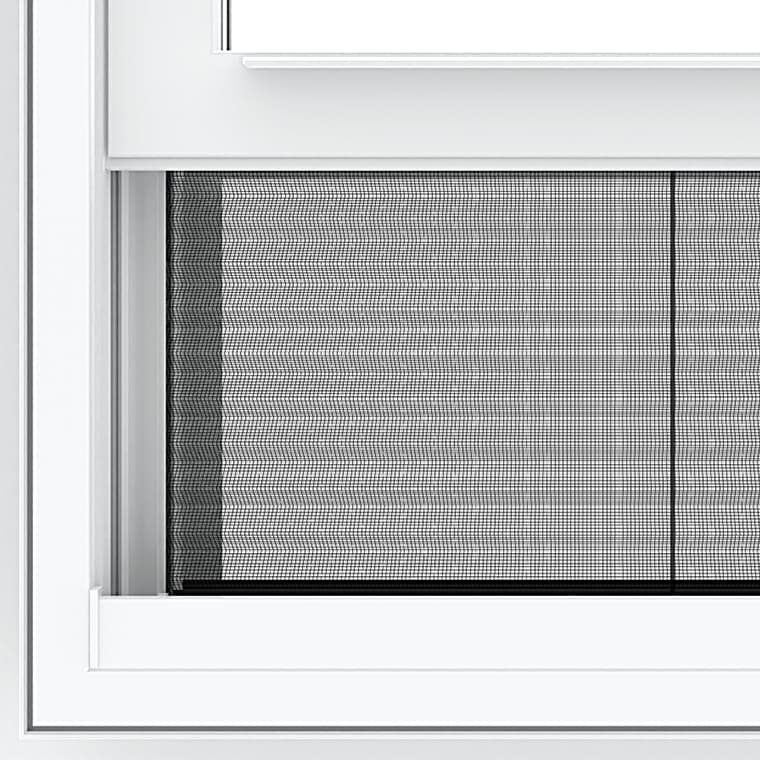

      Screens
      • Screens for window with frame height ≤ 51-1/2" have one plunger per side, screens for windows with frame height > 51-1/2" have two plungers per side.
      • Conventional Black Fiberglass
      • Black vinyl coated 18/16 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA 1201.

      Frequently Asked Questions

      FAQs about My Product

      FAQs about Purchasing Online

      250-sliding-door-beauty-couches

      Pella 250 Series

      Gain peace of mind with the enhanced security and privacy features available on Pella 250 Series windows. Our windows feature a multi-chambered frame design, which is 52% stronger than ordinary vinyl.13 Multi-chambered frames and a fully welded sash further increase the strength of your Pella 250 Series window.
