Pella® Hurricane Shield Series™ Vinyl Sliding Window

Protect what matters most from hurricanes and more with Pella Hurricane Shield Series vinyl sliding windows. Sliding windows glide open and closed horizontally, making them popular in tight spaces. Made of durable, low-maintenance vinyl with shatter-resistant impact glass, these hurricane windows provide unwavering protection with exceptional energy efficiency and sound performance.

  • No additional storm preparation is required, simply close and lock your sliding window.28
  • Designed with a pressure prevention system, by recessing the sash into the frame, for extra protection from hurricane winds and water.
  • Laminated impact glass helps reduce more noise, protects furniture and décor from fading and protects from intruders.

Talk to a Pella Rep for Pricing

Hurricane Shield Series Sliding Window Features

    • Options Rated for High Velocity Hurricane Zone

      • Engineered for Precise Installation

        • Enhanced Energy & Sound Protection

        Design Options

        Pella Hurricane Shield Series vinyl projects feature low-maintenance, easy-care vinyl frames. Choose from two solid-color frame options or one dual-color frame featuring White interiors and Bronze exterior.

        Solid Color Frames


          • cws frame color for hurricane shield in white

            White

            • cws interior frame for hurricane shield windows in bronze

              Bronze

            Downloads & Specifications

            Design & Performance
            Specifications
            2D Cross Section
            Product Literature

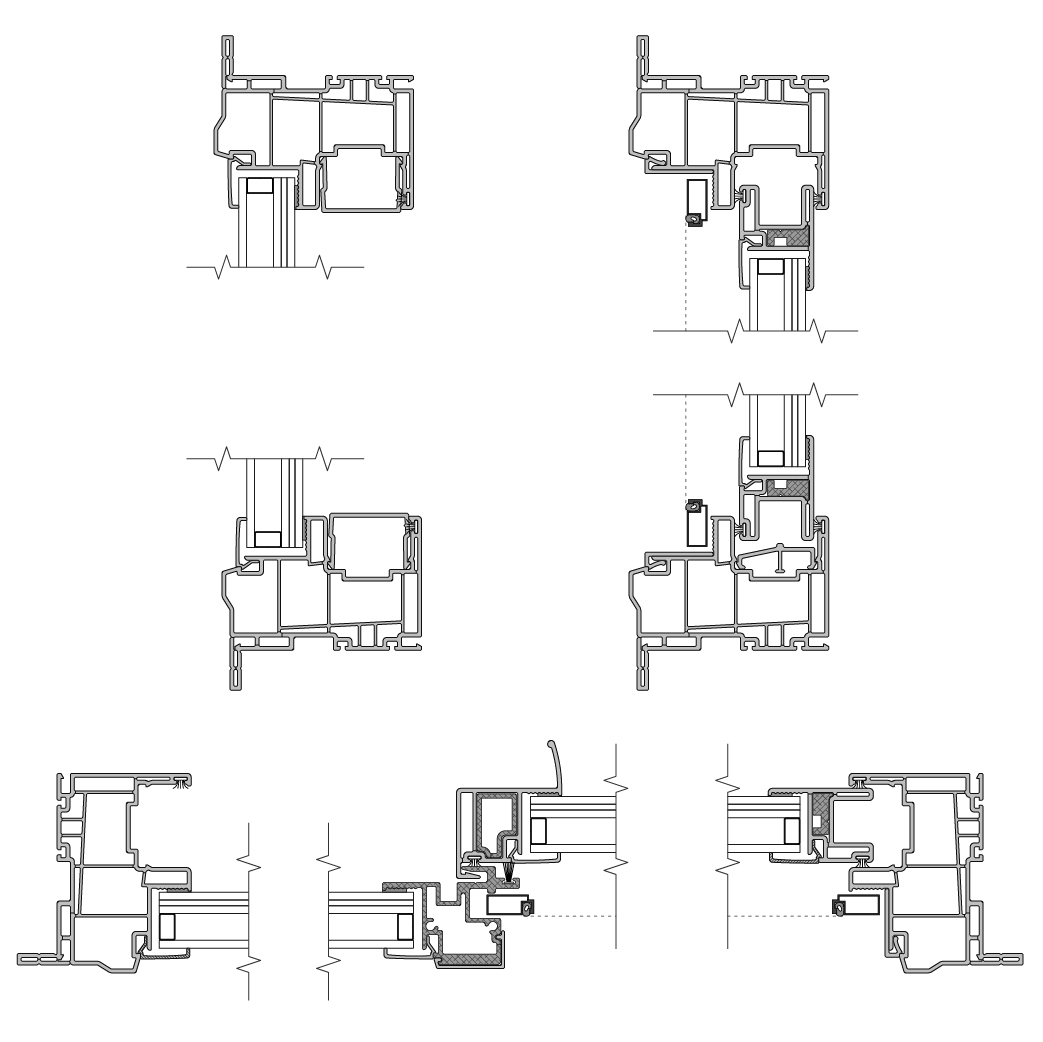

            • cross section hurricane shield sliding window

            Pella Hurricane Shield Series Sliding Window Specs & Install Details

            • Delivering unwavering protection from hurricanes with exceptional everyday performance
            • Rated for use in all coastal areas, including the High Velocity Hurricane Zone (HVHZ), Florida Building Code and Texas Department of Insurance
            • Sliding windows available in operable sizes up to 125.625" x 62"
            • Pre-drilled installation holes help save time during installation
            • Design pressure from +/-30 to +/-60
            • FL # 4092, 16735, 16736
            Frame
            • Overall frame depth: 3" on all frame types.
            • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
            • 1" setback nail fin for 2" wall depth
            • Block frame for 3" wall depth
            • Integral 5/8" flange for 2-13/16" wall depth
            • Interior and exterior frame surfaces are extruded rigid PVC.
            Sash
            • Sash members are extruded, rigid PVC.
            • Sash members are mitered and heat-fused to provide a fully welded corner assembly.
            • Contains sealed insulating glass.
            Interior / Exterior
            • Window frame and sash members are White or Bronze with integral color extruded throughout the profiles
            • Bronze exterior, white integral on interior.
            • Exterior, consisting of a solar reflective coating exceeding AAMA 613 test requirements, with White integral color extruded throughout the profiles on the interior
            • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
            Flat Insect Screen
            • Set in aluminum frame and fitted to interior of window.
            • Screen frame finish is baked enamel, color to match interior.
            • Supplied complete with all necessary hardware.
            • InView™ Screens - Black vinyl coated 18/18 mesh fiberglass screen cloth complying with SMA 1201.
