Pella® Hurricane Shield Series™ Vinyl Sliding Patio Door

Feel confident not just when the hurricane hits, but every day with Pella Hurricane Shield Series vinyl sliding patio doors. Smoothly sliding open and requiring less floor space to operate, these durable sliding patio doors deliver energy efficiency, noise reduction and protection from intruders — all while safeguarding your home from hurricanes.

  • Options tested and rated to be installed in the High Velocity Hurricane Zone, and Miami-Dade and Broward counties.
  • Laminated, insulating impact glass blocks nearly 100% of UV rays, helping keep your home more comfortable and protecting your carpet and artwork from fading.
  • Available with our popular features and options, including tinted glass and between-the-glass grilles.

Talk to a Pella Rep for Pricing

Hurricane Shield Series Sliding Patio Door Features

Design Options

Pella Hurricane Shield Series vinyl projects feature low-maintenance, easy-care vinyl frames. Choose from two solid-color frame options or one dual-color frame featuring White interiors and Bronze exterior.

Solid Color Frames


  • cws frame color for hurricane shield in white

    White

  • cws interior frame for hurricane shield windows in bronze

    Bronze

Dual-Color Frames

  • dual color frame with white interior and bronze exterior

    White Interior with Bronze Exterior

Match your door’s interior and exterior color with a color-matched, corrosion-resistant handle.

Hardware Finishes

  • white sliding door finish for hurricane shield

    White

Low-E Insulating Glass

Pella's InsulShield® glass collection offers innovative and energy-saving choices for your climate. Low-E glass also helps prevent your carpet, furniture and window treatments from fading by blocking most of the sun’s harmful UV rays.

  • sample Advanced Low-E Insulating Glass

    Advanced Low-E Insulating Glass

  • Coastal Low-E Insulating Glass

    Coastal Low-E Insulating Glass

  • SunDefense™ Low-E Insulating Glass

    SunDefense™ Low-E Insulating Glass

  • SunDefense™ Neat® Low-E Insulating Glass

    SunDefense™ Neat® Low-E Insulating Glass

Additional Glass Offerings


  • Non-Impact Laminated Glass

    Non-Impact Laminated Glass

  • Impact-Resistant Laminated Glass

    Impact-Resistant Laminated Glass

  • Non-Laminated Glass

    Non-Laminated Glass

  • obscure glass icon

    Obscure Glass

  • Sample Frosted Glass

    Frosted Glass

  • Sample image for Bronze-Tinted Glass

    Bronze-Tinted Glass

  • Gray-Tinted Glass

    Gray-Tinted Glass

  • Blue-Tinted Glass

    Blue-Tinted Glass

Grilles give the appearance of individual window panes. Pella offers many grille patterns to help enhance your home's architectural style.

Patterns

  • window drawing with Traditional prairie grille pattern

    Traditional

  • window drawing with top row prairie grille pattern

    Top Row

  • window drawing with prairie grille pattern

    Prairie

  • 9 lite prairie grilles for hurricane shield patio doors

    9-Lite Prairie

Profiles

  • 3/4" contour grille

    3/4" Contour

  • 5/8" Flat Grille

    5/8" Flat

Exterior Applied Grilles with Grilles-Between-the-Glass

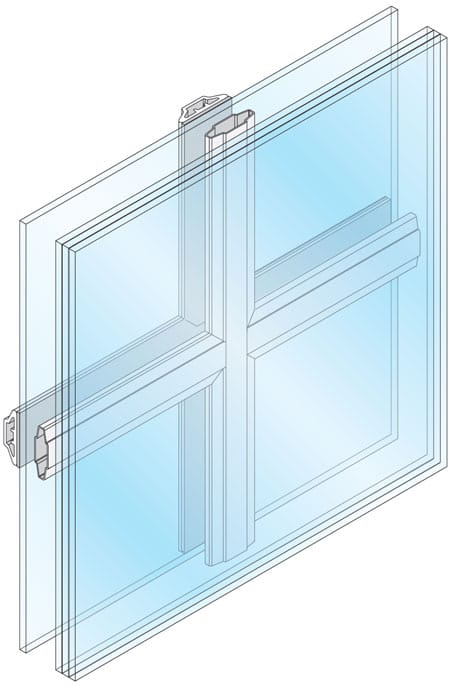

  • 1 inch contour grille

    1" Contour Grilles-Between-the-Glass with 7/8" Contour Applied

Downloads & Specifications

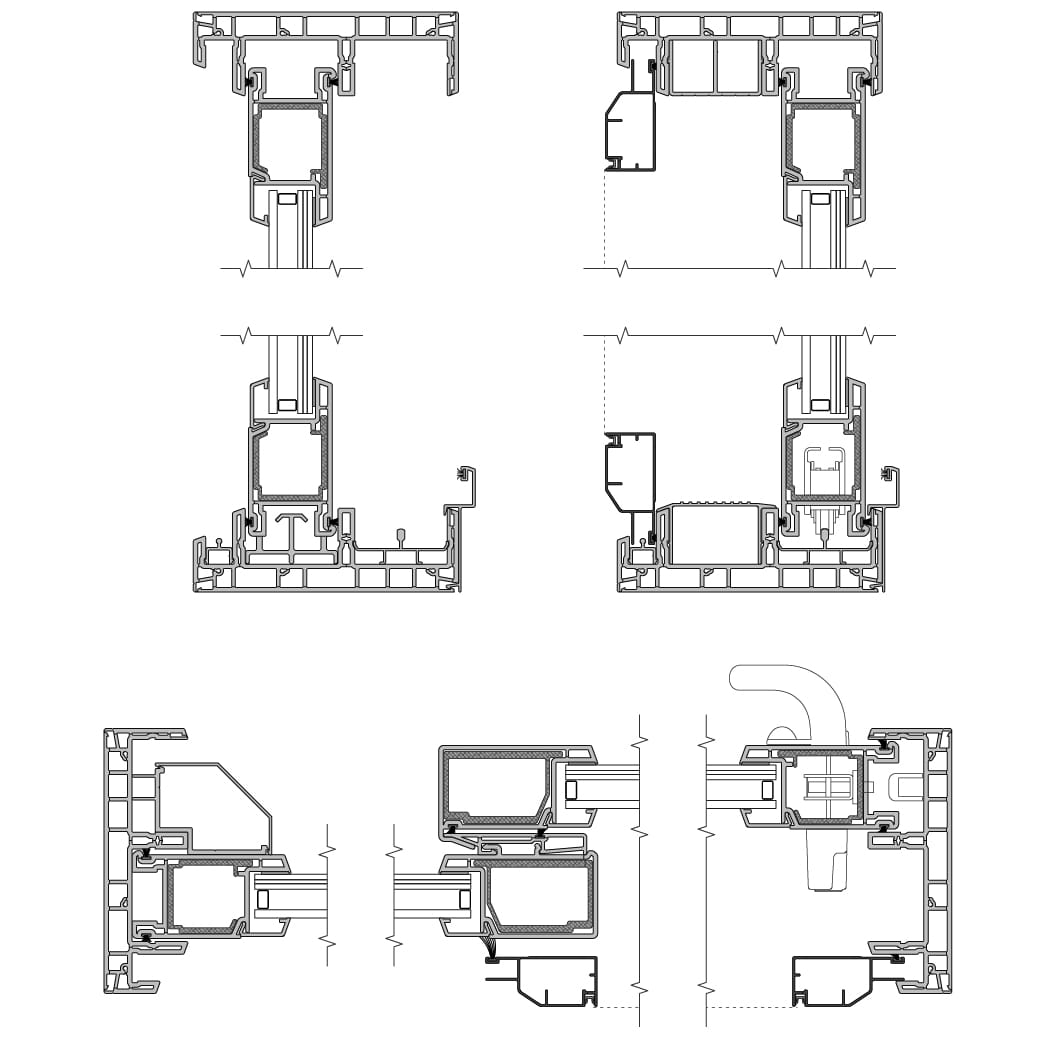

Pella Hurricane Shield Series Sliding Patio Door Specs & Install Details

  • Hurricane impact-resistant patio doors delivering exceptional everyday performance
  • Tested and rated for use in the High Velocity Hurricane Zone (HVHZ), Florida Building Code and Texas Department of Insurance
  • Sliding patio doors available in sizes up to 192"x 96"
  • Save time on the jobsite with pre-drilled installation holes
  • Design pressure from +/-55 to +/-70
  • FL # 13241, 18561, 14849, 11103, 17338, 10272, 14848
Frame
  • Overall frame depth: 3" on all frame types.
  • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
  • 1" setback nail fin for 2" wall depth
  • Block frame for 3" wall depth
  • Integral 5/8" flange for 2-13/16" wall depth
  • Interior and exterior frame surfaces are extruded rigid PVC.
Sash
  • Sash members are extruded, rigid PVC.
  • Sash members are mitered and heat-fused to provide a fully welded corner assembly.
  • Contains sealed insulating glass.
Interior / Exterior
  • Window frame and sash members are White or Bronze with integral color extruded throughout the profiles
  • Bronze exterior, white integral on interior.
  • Exterior, consisting of a solar reflective coating exceeding AAMA 613 test requirements, with White integral color extruded throughout the profiles on the interior
  • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
Screen
  • Set in aluminum frame and fitted to exterior of window
  • Screen frame finish is baked enamel, color to match exterior
  • Screens are secured with metal tabs.
  • InView™ Screens - Black vinyl coated 18/18 mesh fiberglass screen cloth complying with SMA1201.
  • Black vinyl coated 18/16 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA1201.

Frequently Asked Questions

Are vinyl patio doors durable?
How do you measure a sliding patio door for replacement?
What are the benefits of vinyl patio doors?
Where do sliding glass doors work best?
hurricaneshield patio doors on a coastal home

Pella Hurricane Shield Series

Make the eye of the hurricane blink with Pella Hurricane Shield Series patio doors. Our highest rated hurricane patio doors are engineered for the weather. To prepare for the storm, simply close your patio door and lock it.60 It’s that simple. Peace of mind is closer than you think.
