Pella® 250 Series Vinyl Bifold Patio Door

Pella® 250 Series Vinyl Bifold Patio Door

4.28

starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
2018 Reviews

Extend your living space with a stylish and low-maintenance Pella 250 Series vinyl bifold patio door. Available in configurations up to 8 panels, this bifold door opens and closes like an accordion with panels stacking to one side. Choose from multiple sill heights, multipoint lock finishes and frame colors, including Black, to create a look perfect for your project.

  • Durable, fade-resistant vinyl formula will remain beautiful for years to come.
  • Select from multiple sill heights including flush with the floor to best complement your lifestyle.
  • Features multipoint locking hardware for enhanced security.
Purchasing Options
Based on

Free In-Home Consultation

Limited appointments available

Schedule Consultation

Visit your Pella Showroom

There are no showrooms within 200 miles of this location.

See All Locations

Pella 250 Series Bifold Patio Door Features

  • Indoor/Outdoor Living

  • Easy-Care Vinyl

  • Expansive Sizing

Design Options

Solid-color frames feature a single color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

Solid-Color Frames

  • a white-colored swatch for vinyl bifold doors

    White

  • a black-colored swatch for vinyl bifold doors

    Black

Downloads & Specifications

Design, Performance & Size Tables

Specifications

2D Cross Section

Product Literature

  • bifold graphic

Pella 250 Series Bifold Patio Door Specs & Install Details

  • Available in sizes from 41-1/4" x 78-1/8" to 288” x 120”
  • Installation options include Block Frame, 1” Nail Fin or 1-3/8” Nail Fin
  • Performance class and grade of LC-PG30, R-PG30 - R-PG50.
  • Select from multiple sill heights, including low-profile and flush options to best complement your project.
  • Pre-drilled knockdown frames increase speed and ease of installation
Frame
  • Overall frame depth: 5-1/4”.
  • Frame members are mitered and [heat-fused fully welded] [knock-down].
  • Frame: [1” setback for nail fin for 4-1/4” wall depth and 1-3/8” setback for nail fin for 3-13/16” wall depth] [Block Frame for 5-1/4” wall depth].
  • Sill options: [[Standard] [Low-profile] [Flush]].
  • Interior and exterior frame surfaces are extruded rigid uPVC.
Door Panel
  • 3-3/4” x 1-3/4" vinyl panel with internal aluminum reinforcement.
  • Door Panel consists of extruded, rigid uPVC.
  • Panel members are mitered and heat-fused to provide a fully welded corner assembly.
  • Contains sealed insulating glass.
Weatherstripping
  • Foam-backed weatherstripping on the main frame.
  • Dual interlocking weatherstripping on panel for superior air and thermal performance.
Glazing System
  • Interior face-glazed sealed insulating glass.
  • Standard Dual-Pane tempered glass, with optional Triple-Pane upgrade.
  • 7/8” Dual-Pane insulating glass [Advanced Low-E coated [with argon]] [SunDefense™ Low-E coated [with argon]] [High Altitude1].
  • 1-1/4” Triple-Pane insulating glass [SunDefense™ Low-E coated [with argon]] [High Altitude1].

or

  • 1-1/4” Triple-Pane insulating glass [SunDefense™ Low-E coated [with argon]] [High Altitude1].

1Dual-Pane IG High Altitude glazing is only available without Argon. Triple-Pane IG High Altitude glazing is only available without Argon.

Interior / Exterior
  • Frame and panel members are [[White] [Beige] with integral color extruded throughout the profiles].
  • [Brown] laminate exterior, with White integral color extruded throughout the profiles on the interior.
  • Sill: [[Bronze Anodized] [Mill]] finish options.
  • All exposed PVC surfaces are smooth, glossy, and uniform in appearance.
Hardware
  • Interior handle and thumb-lock; finish is [[White] [Black] [Satin Nickel]].
  • Exterior handle with optional keylock; finish is [[White] [Black] [Satin Nickel]].
  • Passive Handle; finish is [[Satin Nickel] [Black]].
  • Hinge finishes: [[Bronze] [Stainless Steel]].
  • Multipoint locking hardware [Stainless Steel] located on both active and inactive panels.

Pella 250 Series Patio Door Reviews

starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
See All Reviews

  • February 24, 2026

    starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
    Why Choose Pella
    We opted to purchase our Pella door directly from Pella (vs. from a big box home supply store) because of the expertise of its installers (per the salesperson) and Pella's guarantee of its products.
    Memorable Aspects
    We were surprised that we had to wait so long for the installation of the door (door ordered in Nov. but not installed until early Feb.). We also financed the door through GreenSky and did not expect that payments would be due to them upon order vs. upon installation.
    Lynne R.

  • February 24, 2026

    starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
    Why Choose Pella
    The employee discount and the ease of Pella handling everything from start to finish.
    Memorable Aspects
    The instalation crew was second to none. There is nothing negative that can be said about them.
    Donald P.

  • February 23, 2026

    starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline
    Why Choose Pella
    Price was right
    Michael S.
  • See what our customers are saying
    Get honest feedback from real customers who have worked with Pella.
    See All Reviews

Frequently Asked Questions

FAQs about My Product

Are vinyl patio doors durable?

Yes, vinyl patio doors are easy to care for and look great for years. Pella’s unique vinyl formula is performance-tested for excellent weathering, durability and color retention. Multi-chambered frames add strength and durability while helping to prevent warping, sagging and bowing.

What are the benefits of vinyl patio doors?

Vinyl patio doors have many benefits including that they are easy to care for, energy efficient, durable, strong and budget friendly. They also offer style flexibility with the option to choose dual-color frames – and you won't need to paint or refinish Pella's vinyl patio doors.

How do you measure a sliding patio door for replacement?

Measure the width and height of your existing patio door with a tape measure. Follow these instructions to ensure you take accurate patio door measurements.

FAQs about Purchasing Online

For online orders, what is your policy for returns and products damaged during shipping?

We’re committed to customer satisfaction. If the product you ordered online is damaged during shipping or you do not receive exactly what you ordered, we want to make it right by refunding you in full or sending you a new product. We do not accept returns of undamaged made-to-order products in which a buyer ordered the incorrect size or color, or decided the product was no longer needed. See pella.com/warranty for additional details and exclusions. If you have questions about returns and refunds, please email shop@pella.com.

Who will install the products I ordered?

When you receive your order, you can either install the product on your own with help from our installation kit. Or, hire a Pella Certified Contractor® to take care of installation for you. They are trained and certified to install Pella products.

What’s included in my online window and door purchase?

Product only. When you purchase a window, door or replacement part online, your order will arrive with the product only. Installation is not included. If you need installation parts and accessories, those can be purchased online as well.

How long will it take to receive my online order?

For online orders, a local Pella team member will call within 2-14 weeks to schedule pick up or delivery depending on delivery method and production timing. The time to receive your order varies since all products are made to order based on your specifics.

Who should buy online?

Buying online is great for the confident do-it-yourselfers. You’ll take charge of the project by measuring, selecting and installing products on your own. Shopping online is quick, convenient and easy – especially when you only need to replace a few standard windows. For more complex orders, it makes more sense to work with a local Pella Representative who can assist throughout the process.

See All Patio Door FAQs

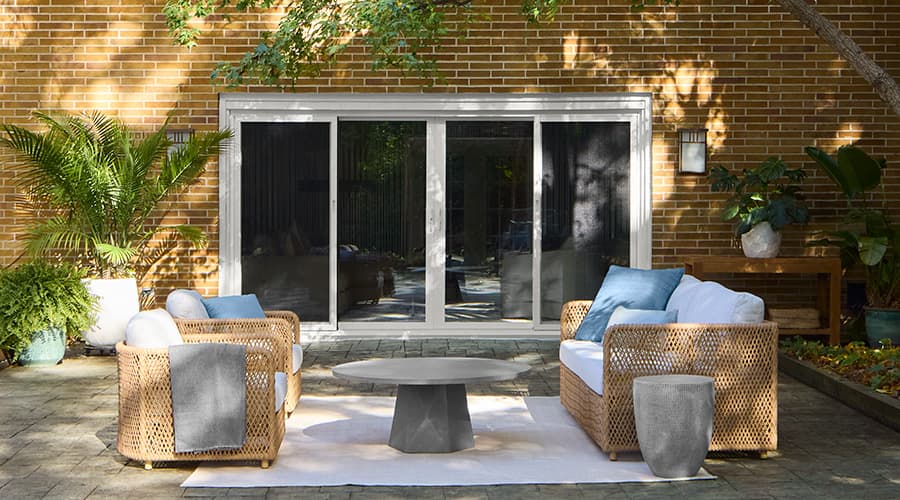

White sliding patio doors opening to an outdoor seating area against a brick exterior.

Pella 250 Series

Pella 250 Series sliding patio doors provide exceptional energy and weather performance for your home. We test our insulating glass from –20ºF to 140ºF to help ensure the seals in the door perform, even in extreme temperatures. And with insulating air chambers and optional triple-pane glass and foam insulation, you can trust these patio doors to help keep your home comfortable.
