Pella® Hurricane Shield Series™ Vinyl Sliding Window

Pella® Hurricane Shield Series™ Vinyl Sliding Window

4.27

starstarstarstarstarstar_outlinestar_outlinestar_outlinestar_outlinestar_outline

455 Reviews

Protect what matters most from hurricanes and more with Pella Hurricane Shield Series vinyl sliding windows. Sliding windows glide open and closed horizontally, making them popular in tight spaces. Made of durable, low-maintenance vinyl with shatter-resistant impact glass, these hurricane windows provide unwavering protection with exceptional energy efficiency and sound performance.

  • No additional storm preparation is required, simply close and lock your sliding window.28
  • Designed with a pressure prevention system, by recessing the sash into the frame, for extra protection from hurricane winds and water.
  • Laminated impact glass helps reduce more noise, protects furniture and décor from fading and protects from intruders.
Purchasing Options
Based on

Free In-Home Consultation

Limited appointments available

Schedule Consultation

Visit your Pella Showroom

There are no showrooms within 200 miles of this location.

See All Locations

Hurricane Shield Series Sliding Window Features

  • Options Rated for High Velocity Hurricane Zone

  • Engineered for Precise Installation

  • Enhanced Energy & Sound Protection

Design Options

Pella Hurricane Shield Series vinyl projects feature low-maintenance, easy-care vinyl frames. Choose from two solid-color frame options or one dual-color frame featuring White interiors and Bronze exterior.

Solid Color Frames


  • cws frame color for hurricane shield in white

    White

  • cws interior frame for hurricane shield windows in bronze

    Bronze

Downloads & Specifications

Design, Performance & Size Tables

Specifications

2D Cross Section

Product Literature

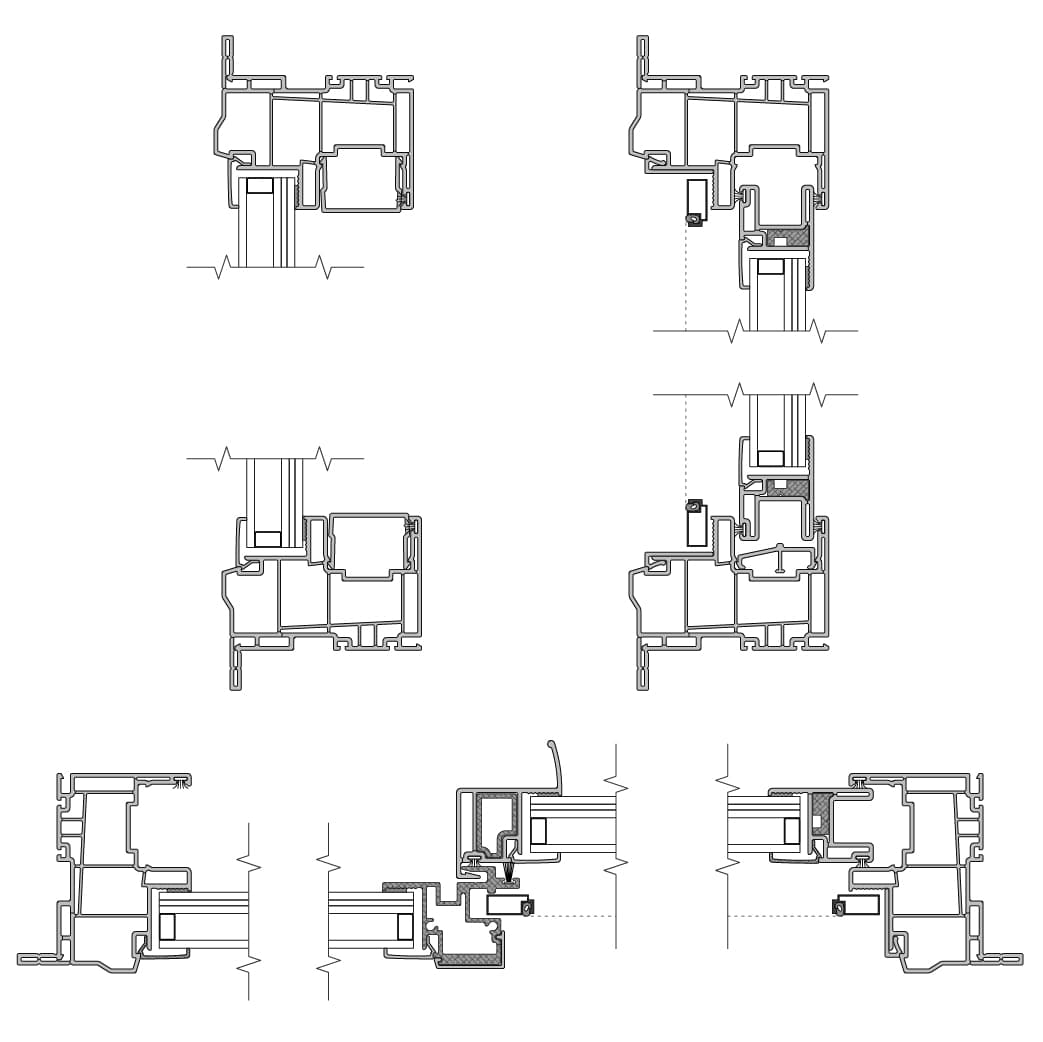

  • cross section hurricane shield sliding window

Pella Hurricane Shield Series Sliding Window Specs & Install Details

  • Delivering unwavering protection from hurricanes with exceptional everyday performance
  • Rated for use in all coastal areas, including the High Velocity Hurricane Zone (HVHZ), Florida Building Code and Texas Department of Insurance
  • Sliding windows available in operable sizes up to 125.625" x 62"
  • Pre-drilled installation holes help save time during installation
  • Design pressure from +/-30 to +/-60
  • FL # 4092, 16735, 16736
Frame
  • Overall frame depth: 3" on all frame types.
  • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
  • 1" setback nail fin for 2" wall depth
  • Block frame for 3" wall depth
  • Integral 5/8" flange for 2-13/16" wall depth
  • Interior and exterior frame surfaces are extruded rigid PVC.
Sash
  • Sash members are extruded, rigid PVC.
  • Sash members are mitered and heat-fused to provide a fully welded corner assembly.
  • Contains sealed insulating glass.
Interior / Exterior
  • Window frame and sash members are White or Bronze with integral color extruded throughout the profiles
  • Bronze exterior, white integral on interior.
  • Exterior, consisting of a solar reflective coating exceeding AAMA 613 test requirements, with White integral color extruded throughout the profiles on the interior
  • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
Flat Insect Screen
  • Set in aluminum frame and fitted to interior of window.
  • Screen frame finish is baked enamel, color to match interior.
  • Supplied complete with all necessary hardware.
  • InView™ Screens - Black vinyl coated 18/18 mesh fiberglass screen cloth complying with SMA 1201.

Frequently Asked Questions

FAQs about Windows

How do I measure my windows and doors?

Follow these easy steps to measure for your tailor-made windows and patio doors.

Are windows cheaper than walls?

Walls of windows are typically more expensive than a traditional wall. Window walls require special structural considerations, and windows are typically more expensive than drywall.

Why should I choose a local Pella store for my window and door replacement?

Window and door replacement is simple and worry-free with the Pella Promise. You’ll get a dedicated expert to guide you through the process, the right products for your needs, and a no-mess installation by certified installers. Available exclusively through an in-home consultation, we can ensure you have peace of mind with our industry-leading warranties. Experience the difference with Pella. Read more about the Pella Promise.

How long do windows last?

It depends on the quality and type of material the window is made of, the local climate and weather events, how well the window was installed, how often the window is opened, how often maintenance is performed and more.

What are the benefits of replacing my windows?

Energy efficiency, reduced noise and curb appeal are among the key benefits of replacement windows.

See All Window FAQs

Other Hurricane Shield Products

hurricaneshield patio doors on a coastal home

Pella Hurricane Shield Series

You don’t have to sacrifice comfort for hurricane protection with Pella Hurricane Shield Series impact-resistant windows. Pella Hurricane Shield Series offers energy-efficient options that will meet or exceed ENERGY STAR® guidelines in Florida and beyond all while enduring the most extreme coastal conditions.1
