Pella® Hurricane Shield Series™ Vinyl Casement Window

Safeguard your home from hurricanes and more with Pella Hurricane Shield Series casement windows. Laminated impact-resistant glass helps protect your home from hurricanes and intruders, all while improving energy efficiency and reducing outside noises. Hinged at the side and opened with the turn of an easy-to-use fold-away crank, casement windows are ideal for difficult to reach places.

  • Durable, weather-resistant vinyl formula will remain beautiful for years to come, even in intense Florida conditions.
  • Multichambered window frame with up to 18 insulating air chambers helps reduce the transfer of heat, keeping your home more comfortable.
  • Innovative wash hinges allow you to easily clean the exterior of your window from the interior of your home.

Talk to a Pella Rep for Pricing

Hurricane Shield Series Casement Window Features

    • Florida Hurricane Protection

      • Exceptional Energy Efficiency

        • Designed for Easy Installation

        Design Options

        Pella Hurricane Shield Series vinyl projects feature low-maintenance, easy-care vinyl frames. Choose from two solid-color frame options or one dual-color frame featuring White interiors and Bronze exterior.

        Solid Color Frames


          • cws frame color for hurricane shield in white

            White

            • cws interior frame for hurricane shield windows in bronze

              Bronze

            Downloads & Specifications

            Design & Performance
            Specifications
            2D Cross Section
            2D Elevation
            Product Literature

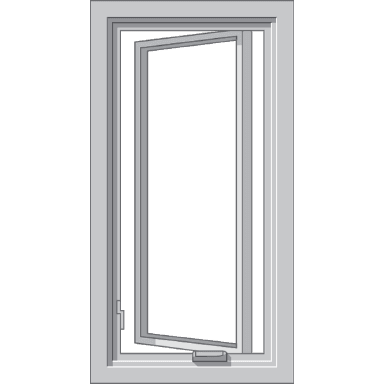

            • graphic design of a casement window

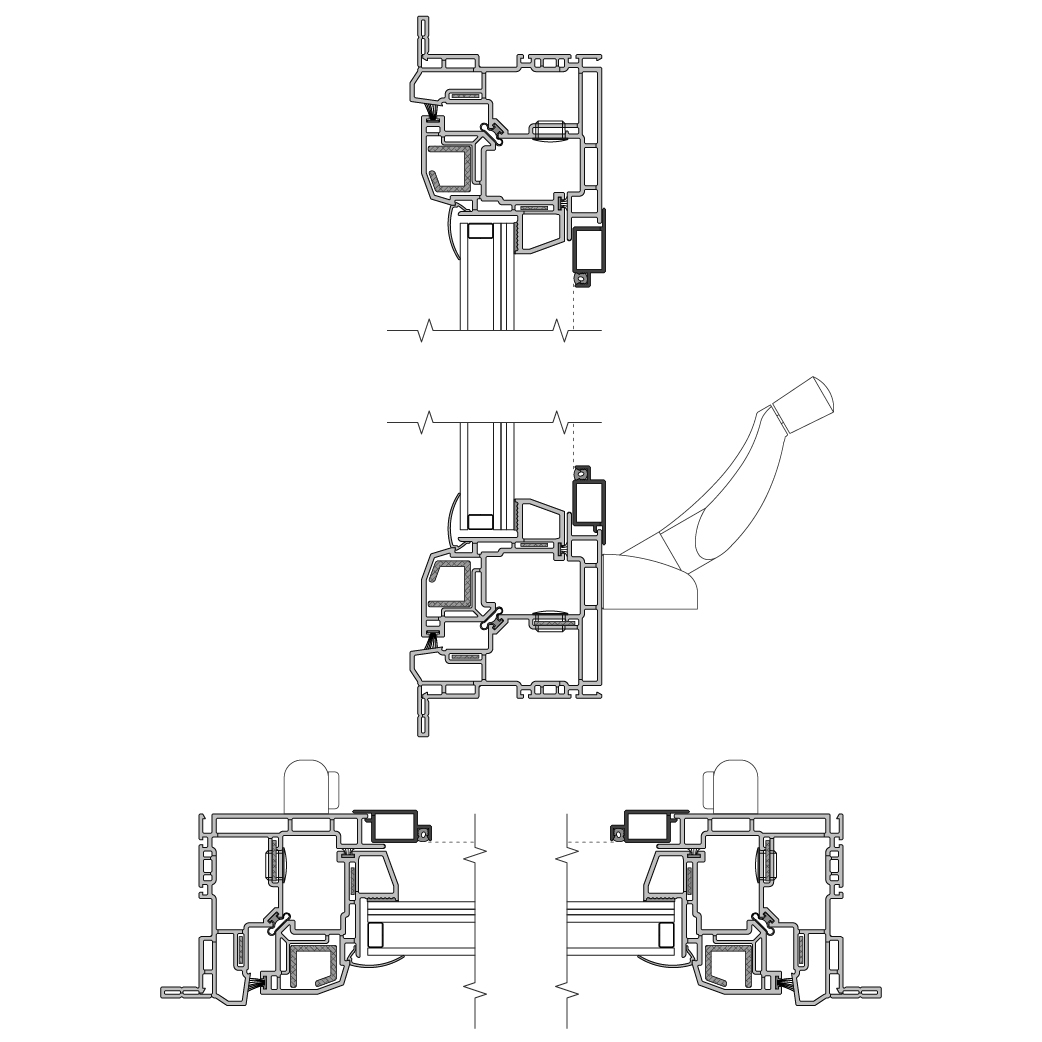

            • cross section for hurricane shield casement windows

            Pella Hurricane Shield Series Casement Window Specs & Install Details

            • Engineered and tested to withstand hurricanes and the most stringent coastal requirements while delivering exceptional everyday performance
            • Tested and rated for use in the High Velocity Hurricane Zone (HVHZ), Florida Building Code and Texas Department of Insurance
            • Casement windows available in operable sizes up to 37"x 80"
            • Precise installation frame design saves time on the jobsite
            • Design pressure from +/-65 to +/-70
            • FL # 4452, 6890, 17388
            Frame
            • Overall frame depth: 3-1/4" on all frame types.Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
            • 1" setback nail fin for 2" wall depth
            • Block frame for 3" wall depth
            • Integral 5/8" flange for 2-13/16" wall depth
            • Interior and exterior frame surfaces are extruded rigid PVC.
            Sash
            • Sash members are extruded, rigid PVC.
            • Sash members are mitered and heat-fused to provide a fully welded corner assembly.
            • Contains sealed insulating glass.
            Interior / Exterior
            • Window frame and sash members are White or Bronze with integral color extruded throughout the profiles
            • Bronze exterior, white integral on interior.
            • Exterior, consisting of a solar reflective coating exceeding AAMA 613 test requirements, with White integral color extruded throughout the profiles on the interior
            • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
            Flat Insect Screen
            • Set in aluminum frame and fitted to interior of window.
            • Screen frame finish is baked enamel, color to match interior.
            • Supplied complete with all necessary hardware.
            • InView™ Screens - Black vinyl coated 18/18 mesh fiberglass screen cloth complying with SMA 1201.
