Pella® Hurricane Shield Series™ Vinyl Awning Window

Protect your home from Florida hurricanes with Pella Hurricane Shield Series vinyl awning windows. These windows are hinged at the top and opened with an easy-to-use fold-away crank. Featuring thick vinyl frames for added structural integrity, shatter-resistant impact glass and a simple installation design, available options are rated for use in the High Velocity Hurricane Zone.

  • Hurricane impact glass reduces more noise than standard glass, from the roar of the storm to barking dogs and traffic.
  • Tested to endure harsh Florida conditions including humidity and sun, our high-grade vinyl will remain beautiful summer after summer.
  • Standard stainless-steel hardware helps your awning windows stand up to harsh coastal conditions, including exposure to salt spray.

Talk to a Pella Rep for Pricing

Hurricane Shield Series Awning Window Features

Design Options

Pella Hurricane Shield Series vinyl projects feature low-maintenance, easy-care vinyl frames. Choose from two solid-color frame options or one dual-color frame featuring White interiors and Bronze exterior.

Solid Color Frames


    • cws frame color for hurricane shield in white

      White

      • cws interior frame for hurricane shield windows in bronze

        Bronze

      Downloads & Specifications

      Pella Hurricane Shield Series Awning Window Specs & Install Details

      • Tested to withstand hurricanes while delivering exceptional everyday performance
      • Rated for use in all coastal areas, including the High Velocity Hurricane Zone (HVHZ), Florida Building Code and Texas Department of Insurance
      • Awning windows available in operable sizes up to 48"x 36"
      • Precise-installation design with installation holes pre-drilled into the frame
      • Design pressure from +/-65 to +/-67.5
      • FL # 15032, 7060

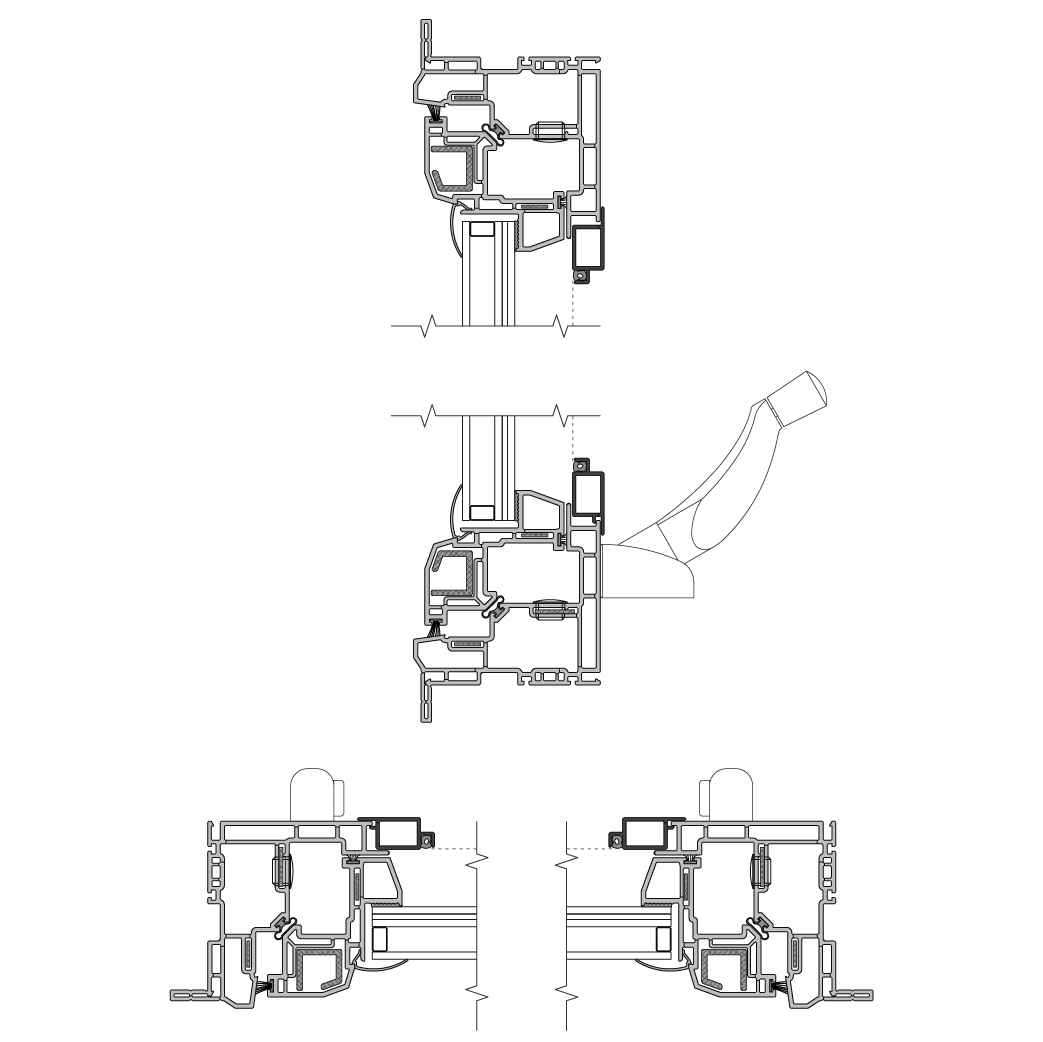

      Frame
      • Overall frame depth: 3-1/4" on all frame types.Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
      • 1-1/8" setback nail fin for 2-1/8" wall depth
      • Block frame for 3-1/4" wall depth
      • Integral 5/8" flange for 3" wall depth
      • Interior and exterior frame surfaces are extruded rigid PVC.
      Sash
      • Sash members are extruded, rigid PVC.
      • Sash members are mitered and heat-fused to provide a fully welded corner assembly.
      • Contains sealed insulating glass.
      Interior / Exterior
      • Window frame and sash members are White or Bronze with integral color extruded throughout the profiles
      • Bronze exterior, white integral on interior.
      • Exterior, consisting of a solar reflective coating exceeding AAMA 613 test requirements, with White integral color extruded throughout the profiles on the interior
      • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
      Flat Insect Screen
      • Set in aluminum frame and fitted to interior of window.
      • Screen frame finish is baked enamel, color to match interior.
      • Supplied complete with all necessary hardware.
      • InView™ Screens - Black vinyl coated 18/18 mesh fiberglass screen cloth complying with SMA 1201.

      Frequently Asked Questions

      FAQs about Windows

      Why should I choose Pella replacement windows?
      How long do windows last?
      Are awning windows secure?
      How do I measure my windows and doors?
      Should I replace my windows all at once?
      When should you use awning windows?
      hurricaneshield patio doors on a coastal home

      Pella Hurricane Shield Series

      Your peace of mind is important to us. Help protect what matters most with Pella Hurricane Shield Series windows. With Florida Product Approvals many Pella Hurricane Shield Series windows can be used throughout the state, including the High Velocity Hurricane Zone (HVHZ).

      Compare Awning Windows
