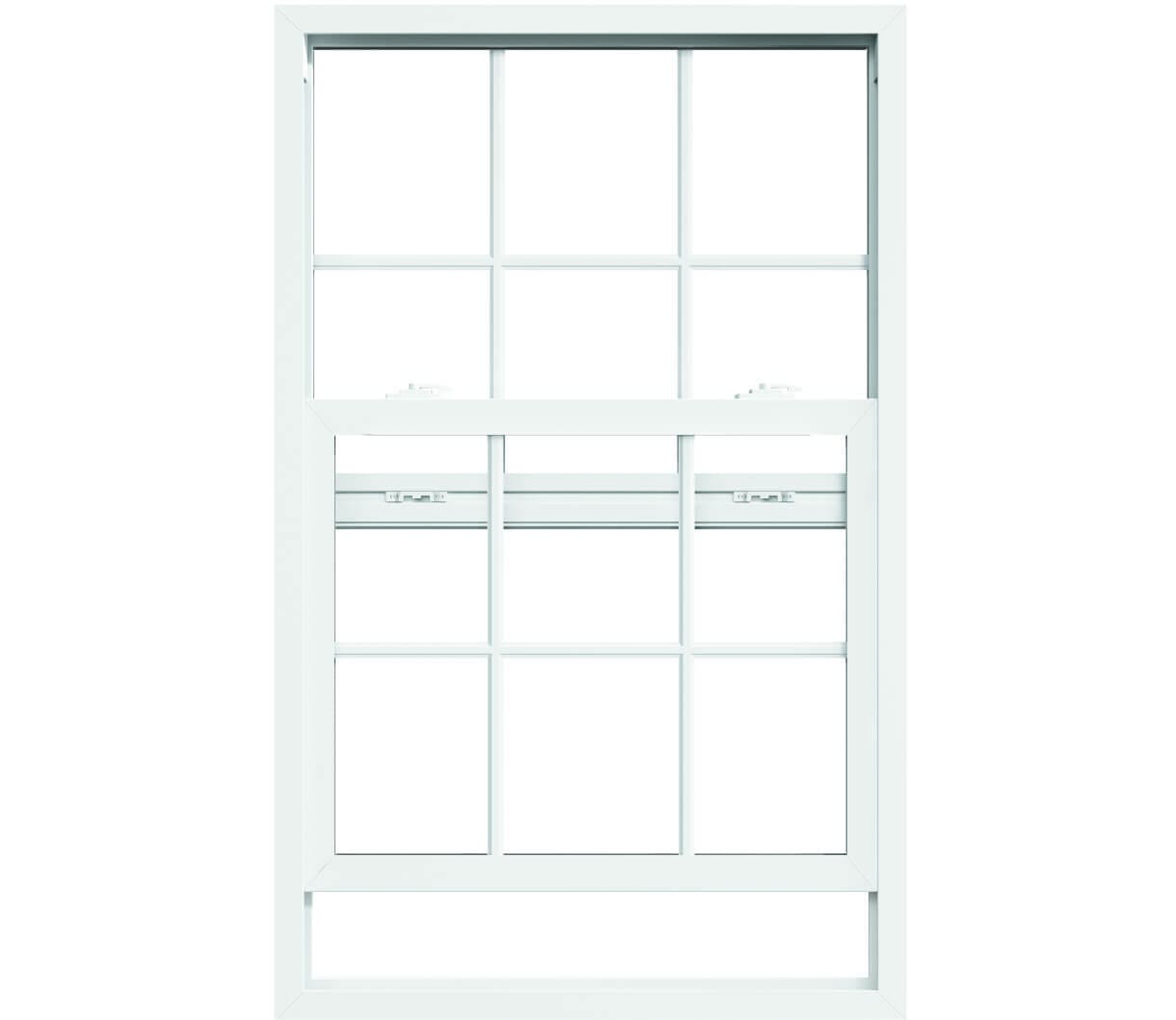

Encompass by Pella® Vinyl Single-Hung Window

Encompass by Pella single-hung windows are a classic, beautiful and budget-friendly addition to any project. The bottom sash can be raised and lowered, while the top sash remains stationary. Their low-maintenance vinyl frames resist yellowing, and a precision welding process makes them stronger and more durable than ordinary vinyl for long-lasting beauty.

  • Using a precision welding process, our fully welded sash and frame are stronger and more durable than ordinary vinyl.
  • Offering options to meet or exceed ENERGY STAR® in all 50 states.1
  • Tilt wash feature, available only in the East region, allows the bottom sash to tilt to the interior for easy cleaning.
  • Product #100002

Configuration: 1-wide

Talk to a Pella Rep for Pricing

Encompass by Pella Single-Hung Window Features

Design Options

Encompass by Pella vinyl products feature easy-care vinyl frames in your choice of three colors

Solid Color Frames

    • white solid color frame for 350 series windows

      White

      • almond solid color frame for 350 series windows

        Almond

        • fossil solid color frame for 250 series windows

          Fossil

        Frame Types

        New construction

        • East – Three frame types, 1-5/8" wall depth with nailing fin and 1-5/8" or 2-11/16" wall depth with J-channel. 2" and 3-3/8" overall frame depth with nailing fin.
        • West – 1-1/4" wall depth with nailing fin.

        Window replacement

        • East – 2-11/16" overall frame depth with block frame design.
        • West – Four frame types, 2-11/16" and 3-3/8" overall frame depths with block frame design, and 2-11/16" and 3-3/8" in flush flange.

        Encompass by Pella Single-Hung Window Specs & Install Details

        • High-grade vinyl backed by Pella at a price that’s easy on the budget
        • Performance rating of R30-R50 and STC of 25
        • Single-hung windows available in operable sizes up to 48" x 71-1/2"
        • Automatically locking hardware available in the West region
        • Installation options include Block Frame, Nail Fin and Nail-Fin with J-Channel; Integral 5/8" Flange available in Florida, Flush Flange also available in West region

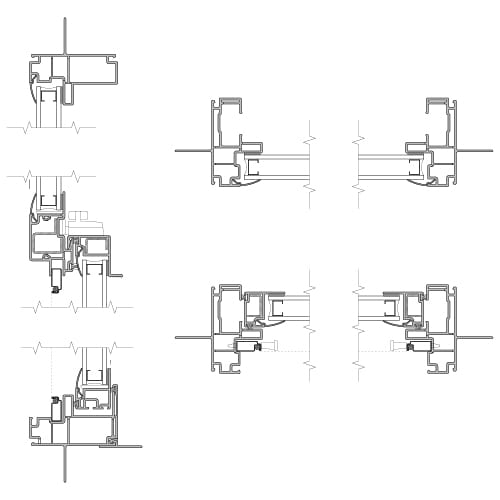

        Frame
        • Overall frame depth: 2-11/16"
        • Frame members are extruded, rigid uPVC and are mitered and heat-fused to provide a fully welded corner assembly
        Sash
        • Sash members are extruded, rigid uPVC and are mitered and heat-fused to provide a fully welded corner assembly.
        • Integral extruded sash lift at checkrail.
        Weatherstripping

        Fin-type pile around the perimeter of the vent sash.

        Interior/Exterior
        • All window frame members have an integral color extruded throughout the profiles.
        • All exposed PVC surfaces are smooth, glossy and uniform in appearance.
        Glazing System
        • Quality float glass complying with ASTM C1036, Quality.
        • Exterior face glazed 3/4" sealed insulating glass.
        Hardware
        • Constant force balances connected to sash with stainless steel spring and concealed within the frame.

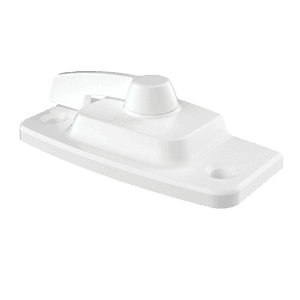

        • Lock is factory installed zinc die cast self-aligning cam-action lock located on the checkrail.
        • 2-11/16" Units ≥ 29-1/2" wide have two locks.
        • Integral extruded sash lift.
        • Tilt latches are factory installed, and located on the checkrail
        Additional Hardware options
        • Drywall Pass Through option is available on fin frame, single units of frame size greater or equal to 29.5'' x 59.5''.
        • Dry-wall Pass Through option is available on fin frame two wide composites with individual units of frame size greater or equal to 29.5'' x 59.5'' and less than or equal to 35.5'' x 71.5''.

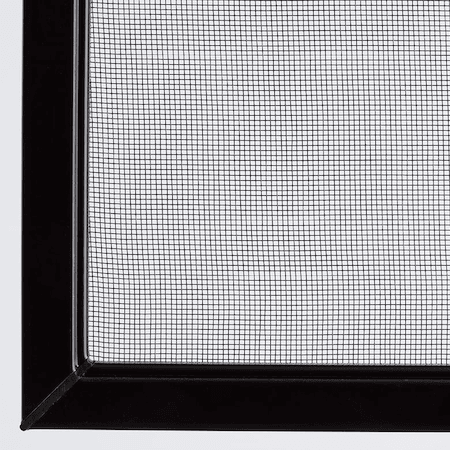

        Screens
        • Half-size with black vinyl coated 18/14 mesh fiberglass screen cloth complying with FS L-S125B, ASTM D 3656 and SMA 1201.
        • Set in aluminum frame and fitted to outside of window.

        Frequently Asked Questions

        FAQs about My Product

        FAQs about Purchasing Online

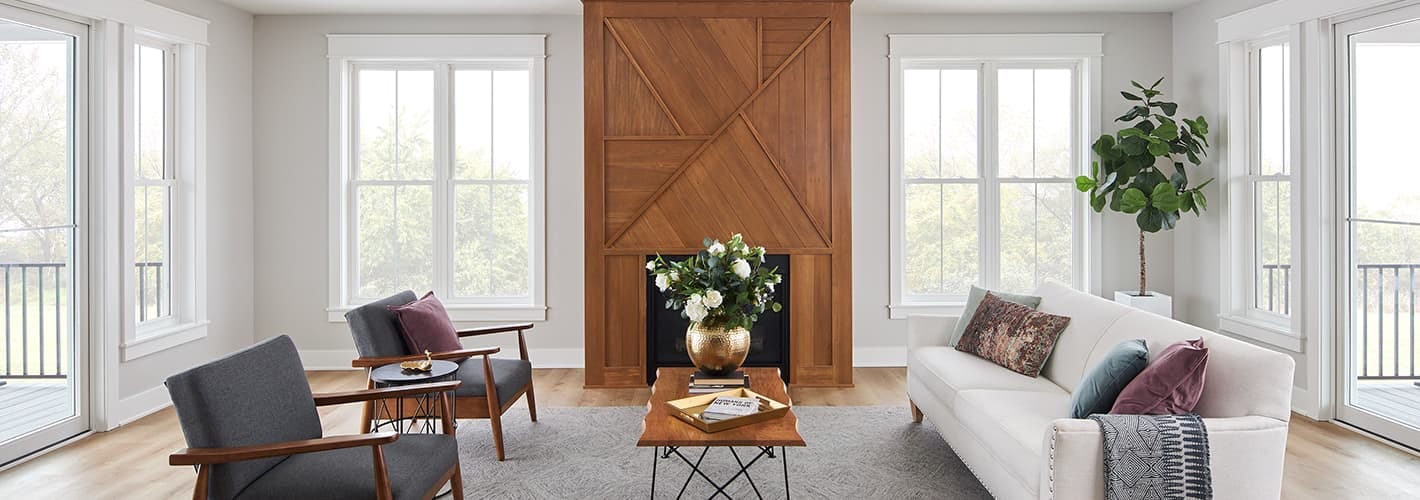

        Encompass by Pella®
