Meticulously designed to achieve your vision, Pella Reserve – Traditional commercial entrance doors exude the tenets of traditional design while bringing modern-day convenience. Durable, aluminum-clad wood options are available in a variety of finishes.

  • Low-profile, ADA-compliant sills and 32” clear openings are standard on these doors, making them a smart decision for commercial properties.
  • With authentic putty glaze profiles and grilles, these commercial entrance doors will be a high-performing complement to other design elements in the space.
  • Protected with our exclusive EnduraGuard® wood protection formula for long-lasting beauty and dependable performance.
Purchasing Options
Based on

Free In-Home Consultation

Limited appointments available

Schedule Consultation

Visit your Pella Showroom

There are no showrooms within 200 miles of this location.

See All Locations

Reserve – Traditional Commercial Entrance Door Features

  • Best Limited Lifetime Warranty For Wood Patio Doors19

  • Commercial-Grade Design

  • Inspired Traditional Design

Design Options

Pella Reserve products offers exquisite wood types to enhance your home's design. Learn more about materials.

And, we stand behind them with a limited lifetime warranty. See written Limited Warranty for details, including exceptions and limitations.

Materials

  • pine wood

    Pine

  • unfinished mahogany corner section of a window

    Unfinished Mahogany

  • douglas fir wood window material

    Douglas Fir

Downloads & Specifications

Design & Performance

Specifications

2D Cross Section

2D Elevation

3D & BIM

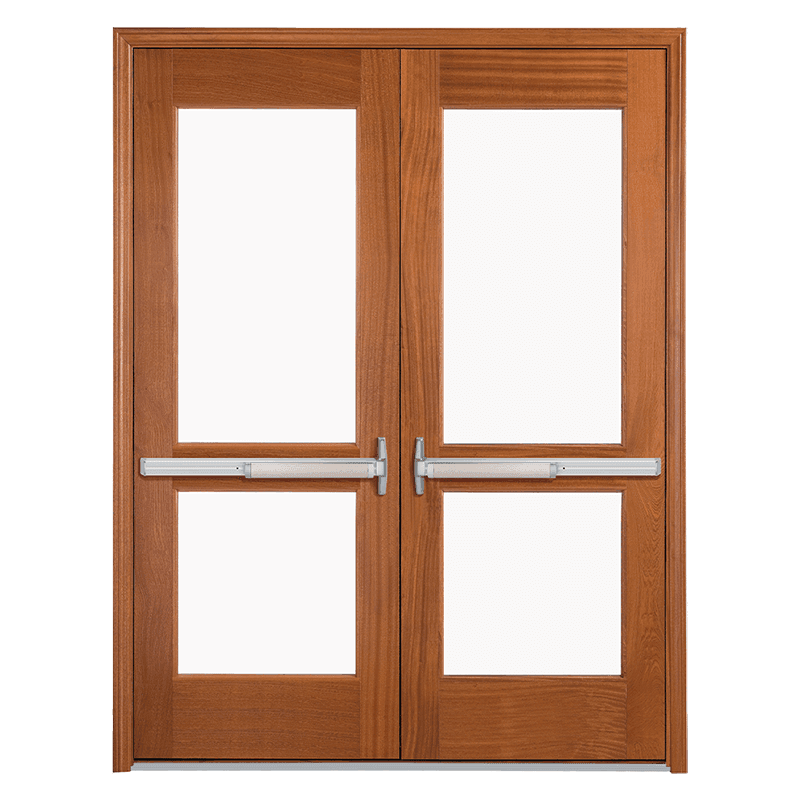

  • wood commercial entrance door

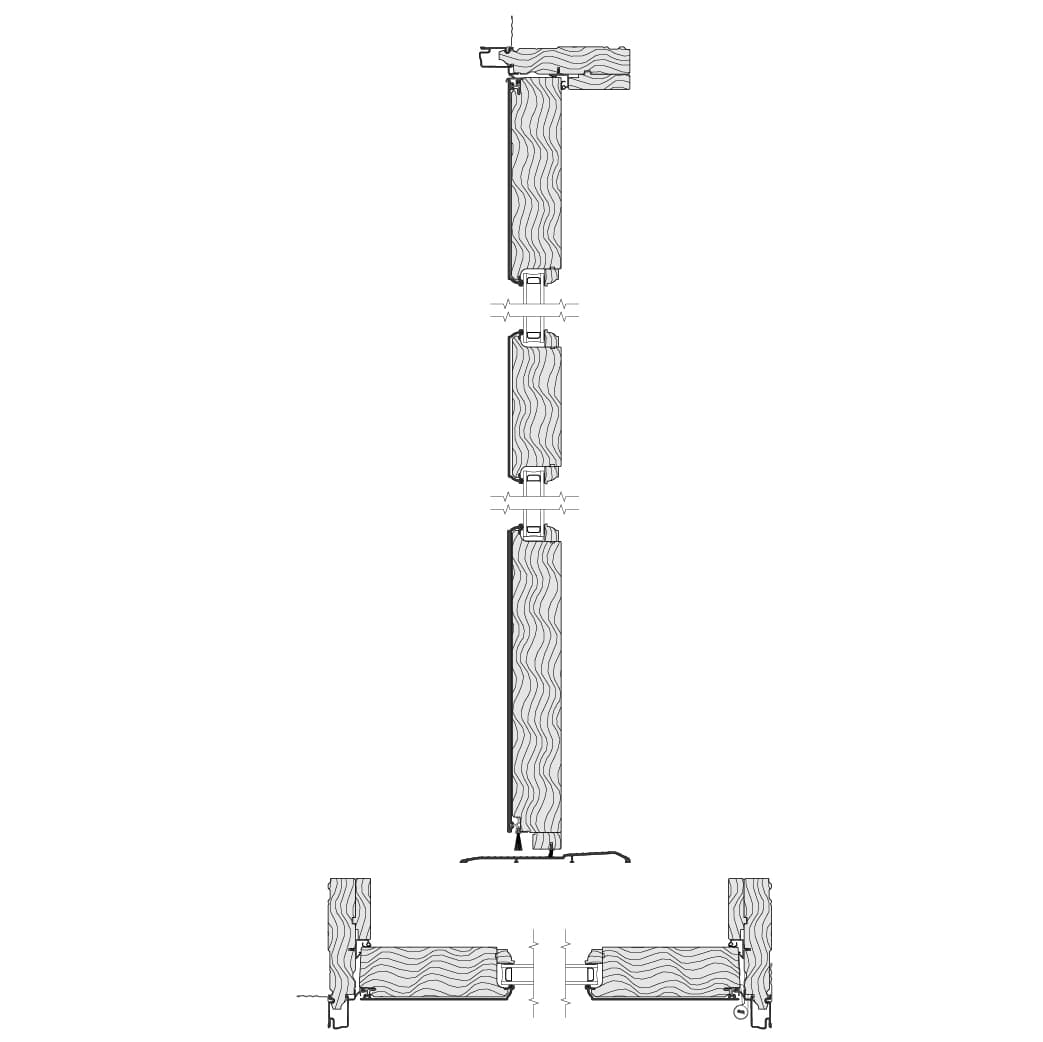

  • cross section of a commercial entrance door

Reserve - Traditional Commercial Entrance Door Specs & Install Details

  • Uncompromised attention to detail with historic putty profiles, through-stile construction and deliberate proportions
  • Single doors available in sizes from 24" x 80" to 38" x 96"
  • Double doors available in sizes from 48" x 80” by 74” x 96”
  • Available with transoms or sidelights for unique combinations
Frame
  • Interior exposed surfaces are edge-banded and veneered.
  • Exterior surfaces are clad with aluminum at the head and jambs.
  • Components are assembled with screws, staples and concealed corner locks.
  • Sill is 1/2" low profile.
  • Frame depth is 5-7/8" (149mm) for a wall depth of 4-9/16" (116mm).
  • Jamb extensions available to adapt door to wall thickness between 4-9/16"
Door panels
  • Exterior surfaces are clad with extruded aluminum.
  • Panel stiles and rails are five-ply construction, randomly finger-jointed blocks laminated with water-resistant glue and veneered on both sides.
  • Panel lock stiles on all units and all stiles on units over 8' height are constructed with LVL core with finger-jointed edge bands on both sides and veneered on both faces.
  • Corners are urethane-silicone hybrid sealed and secured with metal fasteners.
  • Panel thickness is 2-1/16" (52mm).
  • Panel exterior profile is ogee or putty glaze, interior profile is ogee.
Ball-bearing hinges
  • Doors 6' 10" and under frame height will have three (3) ball-bearing hinges.
  • Doors over 6' 10" frame height up to and including 8' 0" frame height will have four (4) ball bearing hinges.
Adjustable hinges
  • Assists in installation (not available with anodized cladding).
  • Doors 6' 10" to 7' 0" frame height will have three (3) hinges.
  • Doors over 7' 0" frame height up to and including 8' 0" frame height will have four (4) hinges.
  • Doors over 8' 3" frame height up to and including 9' 0" frame height will have five (5) hinges.
  • Doors over 9' 0" frame height will have six (6) hinges.
Intermediate Rail and Flat Panel Options
  • 6" Intermediate rail is three-ply construction, randomly finger-jointed blocks laminated with water-resistant glue and veneered on both sides.
  • Clad Flat panel exterior is .080" Aluminum.
  • Flat panel is an LVL construction with Interior exposed surfaces are veneered with pine, mahogany or douglas fir.
  • Standard placement: 6" Intermediate Rail 38" OC from the bottom of the door sill.
reserve traditional hinged patio door one door open white trim

Pella® Reserve™

Made for the distinct creators, the purists of design, the architectural historians – each door is meticulously designed to achieve your vision. We deliver tailor-made solutions and intentional innovations to achieve your unique vision without concessions. From simple yet sophisticated style to historical detailing, anything less simply won’t do.
