Pella® 250 Series Vinyl Hinged Patio Door

Pella 250 Series vinyl hinged patio doors are hinged at the side and swing open. Made of low-maintenance vinyl, these doors create a grand entrance at an affordable price and will remain beautiful for years to come.

  • Available in a variety of finishes including Black and in out-swing and in-swing operations.
  • Select from multiple configurations, sill heights and finishes to best complement your project.
  • Multipoint locking hardware secures the door at multiple locations for enhanced security.

Purchasing Options

Based on

Free In-Home Consultation

Limited appointments available

Schedule Consultation

Visit your Pella Showroom

There are no showrooms within 200 miles of this location.

See All Locations

Pella 250 Series Hinged Patio Door Features

  • Low-Maintenance Vinyl

  • Enhanced Security Features

  • Modern Black Frame Finish Available

Design Options

Solid-color frames feature a single color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

Solid-Color Frames

  • a white-colored swatch for vinyl bifold doors

      White

    • a black-colored swatch for vinyl bifold doors

        Black

      Downloads & Specifications

      Design, Performance & Size Tables

      Specifications

      2D Cross Section

      3D & BIM

      Product Literature

      • generic hinged door drawing

        Pella 250 Series Hinged Patio Door Specs & Install Details

        • Single door sizes available from 21-1/2" x 32-5/8" to 44-1/2" x 102", double door sizes available from 41-1/2” x 32-5/8” to 87-3/8” x 102”
        • Performance class and grade of LC-PG25 for in-swing single doors and double doors
        • Installation options include Block Frame, 1" Nail Fin, 1-3/8" Nail Fin and Flush Flange
        • Base frame depth of 5-1/4" and commercial-grade adjustable hinges for all panel configurations
        • Factory-assembled frame ensures even reveals and reliable door operation
        Frame
        • Overall frame depth: 5-1/4”.
        • Frame members are mitered and [heat-fused fully welded] [knock-down].
        • Frame: [1” setback for nail fin for 4-1/4” wall depth and 1-3/8” setback for nail fin for 3-13/16” wall depth] [Block Frame for 5-1/4” wall depth] [Flush Flange for 5” wall depth].
        • Interior and exterior frame surfaces are extruded rigid uPVC.
        Door Panel
        • 3-3/4” x 1-3/4" vinyl panel with internal aluminum reinforcement.
        • Door Panel consists of extruded, rigid uPVC.
        • Panel members are mitered and heat-fused to provide a fully welded corner assembly.
        • Contains sealed insulating glass.
        Weatherstripping

        Foam-backed weatherstripping on the main frame.

        Glazing System
        • Interior face-glazed sealed insulating glass.
        • Standard Dual-Pane tempered glass, with optional Triple-Pane upgrade.
        • 7/8” Dual-Pane insulating glass [Advanced Low-E coated [with argon]] [SunDefense™ Low-E coated [with argon]] [High Altitude1].
        • 1-1/4” Triple-Pane insulating glass [SunDefense™ Low-E coated [with argon]] [High Altitude1].

        or

        • 1-1/4” Triple-Pane insulating glass [SunDefense™ Low-E coated [with argon]] [High Altitude1].

        1Dual-Pane IG High Altitude glazing is only available without Argon. Triple-Pane IG High Altitude glazing is only available without Argon.

        Interior / Exterior
        • Frame and panel members are [[White] [Beige] with integral color extruded throughout the profiles].
        • [Brown] laminate exterior, with White integral color extruded throughout the profiles on the interior.
        • [Black] laminate exterior, with optional [Black] laminate interior or White integral color extruded throughout the profiles on the interior.
        • Sill: [[Bronze Anodized] [Mill]] finish options.
        • All exposed PVC surfaces are smooth, glossy, and uniform in appearance.
        Hardware
        • Interior handle and thumb-lock; finish is [[White] [Black] [Satin Nickel]].
        • Multipoint locking hardware [Stainless Steel] located on both active and inactive panels.
        • Adjustable contemporary hinges; finish is [[White] [Bronze] [Silver Coated] [Black]].

        Frequently Asked Questions

        FAQs about My Product

        FAQs about Purchasing Online

        See All Patio Door FAQs

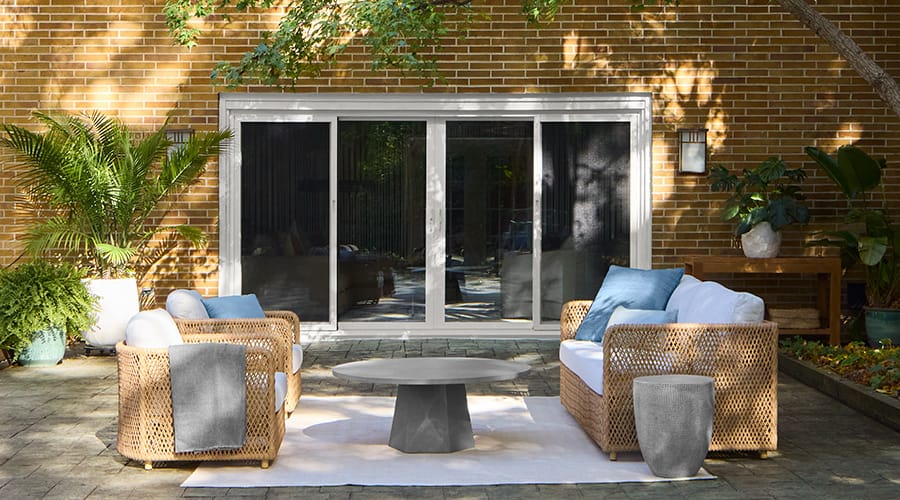

        White sliding patio doors opening to an outdoor seating area against a brick exterior.

        Pella 250 Series

        Pella 250 Series sliding patio doors provide exceptional energy and weather performance for your home. We test our insulating glass from –20ºF to 140ºF to help ensure the seals in the door perform, even in extreme temperatures. And with insulating air chambers and optional triple-pane glass and foam insulation, you can trust these patio doors to help keep your home comfortable.
