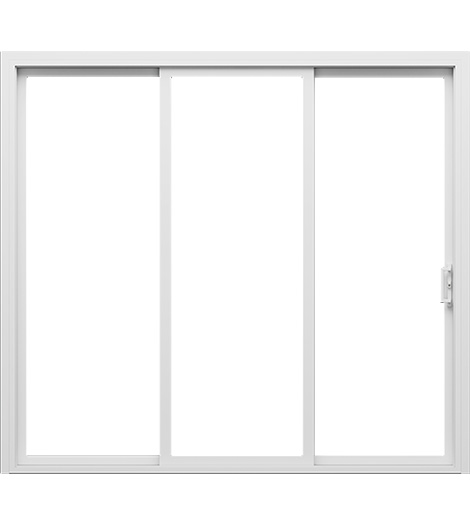

Pella® 250 Series Vinyl Sliding Patio Door
Pella 250 Series 3-panel sliding patio doors deliver enhanced peace of mind in a low-maintenance design. One operable panel slides to overlap one of two fixed panels to connect you to the outdoors. Gliding along a track, these doors are ideal for rooms where you need to maximize natural light and floor space.
- Optional blinds-between-the-glass add privacy and light control.
- Featuring a sloped weeping system that allows gravity to direct water away from the home’s interior.
- Larger sizes, an upgraded flush handle design and performance enhancements available on premium panel styles.
Purchasing Options
Free In-Home Consultation
Limited appointments available
Visit your Pella Showroom
There are no showrooms within 200 miles of this location.
Pella 250 Series Sliding Patio Door Features
Modern Black Frame Finish Available
Exceptional Performance
- [C] Classic
Vent Lock for Enhanced Security
Design Options
Solid-color frames feature a single color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.
Solid-Color Frames
![an almond-colored swatch]( "Almond")
Almond
![a fossil-colored swatch]( "Fossil")
Fossil
![a black-colored swatch of paint]( "Black")
Black
![a white-colored swatch for vinyl bifold doors]( "White")
White
Dual-Color Frames
![a dual-colored swatch of both white and brown colors]( "White Interior/Brown Exterior")
White Interior/Brown Exterior
![a dual-colored swatch of both white and black colors]( "White Interior/Black Exterior")
White Interior/Black Exterior
Frame
- Less visible sash corner seams – typical vinyl has build up.
- Full-frame profile with edge detailing.
- Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
- Reinforced window frames are 52% stronger than ordinary vinyl.8
- Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
- Products are tested in state-of-the-art facilities.
Downloads & Specifications
Design, Performance & Size Tables
2D Elevation
3D & BIM
Product Literature
Pella 250 Series Sliding Patio Door Specs & Install Details
- To make transport and installation easier, sliding patio doors are available with knockdown frames and with panels shipped separately.
- Energy-efficient dual- and triple-pane options available.
- Stiles and rails are 2-3/4” on standard panel styles and 3-3/4" on premium panel styles.
- Designed with aluminum reinforcements in the venting panels for long-term performance.
- Strategically placed vinyl supports add strength and weather-resistance to the frame, allowing for expansion and contraction as the seasons change without sacrificing performance.
- Installation options vary by product type and include Block Frame, Nail Fin and Flush Flange.
| Door Panel | [C] Door Panel consists of extruded rigid uPVC [with optional foam insulation]. [S] 2-3/4” x 1-3/4" vinyl panel with internal aluminum reinforcement. [P] 3-3/4” x 1-3/4" vinyl panel with internal aluminum reinforcement. |
| Weatherstripping | Fin-type pile around perimeter of panels. |
| Hardware | [C] Classic
[S] Standard
[P] Premium
|
| Interior/Exterior | [C] Classic Frame and panel members are [[White] [Almond] [Fossil] with integral color extruded throughout the profiles] [[Brown] [Black] laminate exterior, consisting of a solar reflective coating exceeding AAMA 307 test requirements, with White integral color extruded throughout the profiles on the interior]. [S] Standard Frame and panel members are [[White] [Beige] with integral color extruded throughout the profiles] [[Brown] [Black] laminate exterior, with White integral color extruded throughout the profiles on the interior]. [P] Premium
|
| Frame | Interior and exterior frame surfaces are extruded rigid uPVC. |
Pella 250 Series
Pella 250 Series sliding patio doors provide exceptional energy and weather performance for your home. We test our insulating glass from –20ºF to 140ºF to help ensure the seals in the door perform, even in extreme temperatures. And with insulating air chambers and optional triple-pane glass and foam insulation, you can trust these patio doors to help keep your home comfortable.
