Pella® 250 Series Vinyl Single-Hung Window

Mulled

Pella 250 Series 3-wide mulled single-hung windows include three units that are joined as one in the factory. The bottom sash of each window can open and close for ventilation while the top sash is fixed in place. With energy-efficient choices and the most features and options of our vinyl products, customize these windows to fit the needs of you and your lifestyle.

  • Three vinyl single-hung windows combined as one unit.
  • Protect your home from intruders with a tamper prevention system that exceeds the most stringent forced entry requirements.
  • Help channel water away from the home with an exclusive weather repel system.
  • Product #202002

Configuration: 3-wide

Talk to a Pella Rep for Pricing

Pella 250 Series Single-Hung Window Features

Design Options

Solid-color frames feature White, Almond or Fossil color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

Solid Color Frames

    • white solid color frame for 350 series windows

      White

      • almond solid color frame for 350 series windows

        Almond

        • fossil solid color frame for 250 series windows

          Fossil

        Frame

        • Less visible sash corner seams – typical vinyl has build up.
        • Full-frame profile with edge detailing.
        • Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
        • Reinforced window frames are 52% stronger than ordinary vinyl.8
        • Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
        • Products are tested in state-of-the-art facilities.

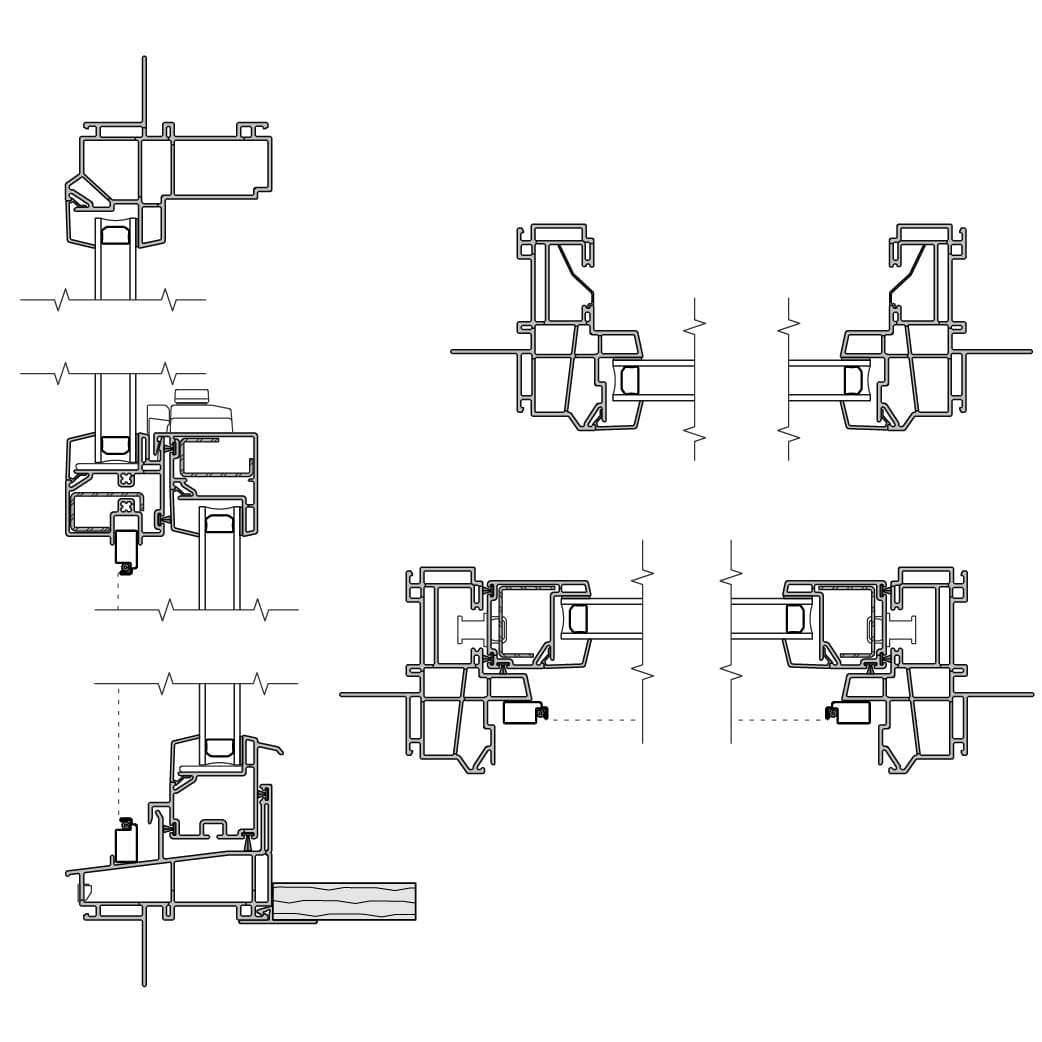

        Pella 250 Series Single-Hung Window Specs & Install Details

        • Pella's precision welding process creates more durable products that resist warping or twisting over time and are 52% stronger than ordinary vinyl8
        • Performance class and grade R35-R50 and STC of 25 for dual-pane windows and 28 of triple-pane windows
        • Available in sizes from 14-1/2" x 23-1/2” to 53-1/2” x 77-1/2”
        • Pella 250 Series single-hung windows have been awarded the ENERGY STAR Most Efficient Mark in 2020
        • Installation options include Block Frame, Integral Fin, Fin with J-Channel11, Flush Flange10, 5/8" Flange Frame11

        Frame
        • Overall frame depth: 3-1/4" on all frame types.
        • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
        • Frame: 1-1/8" setback nail fin for 2-1/8" wall depth; Block frame for 3-1/4" wall depth; Integral 5/8" flange for 3" wall depth
        Sash
        • Sash members are extruded, rigid PVC, and are mitered and heat-fused to provide a fully welded corner assembly.
        • Includes an integral extruded sash lift as standard.
        • Contains sealed insulating glass.
        Weatherstripping

        Sash is weatherstripped around the sash perimeter with a fin-type, pile weatherstripping and vinyl wrapped foam weatherstrip.

        Glazing System
        • Quality float glass complying with AS™ C 1036.
        • Exterior face-glazed sealed insulating glass.
        • Dual-Pane insulating glass or 1" Triple-Pane
        Hardware
        • Constant force balances are concealed within the frame and connected to the sash with a bracket which houses a stainless steel coil spring.
        • Locks are factory-installed, zinc die cast, self-aligning, located on the checkrail.
        • Two sash locks are installed on units with 29-1/2" or greater frame width.
        • Tilt latches are factory installed and are located on the checkrail of the lower sash.

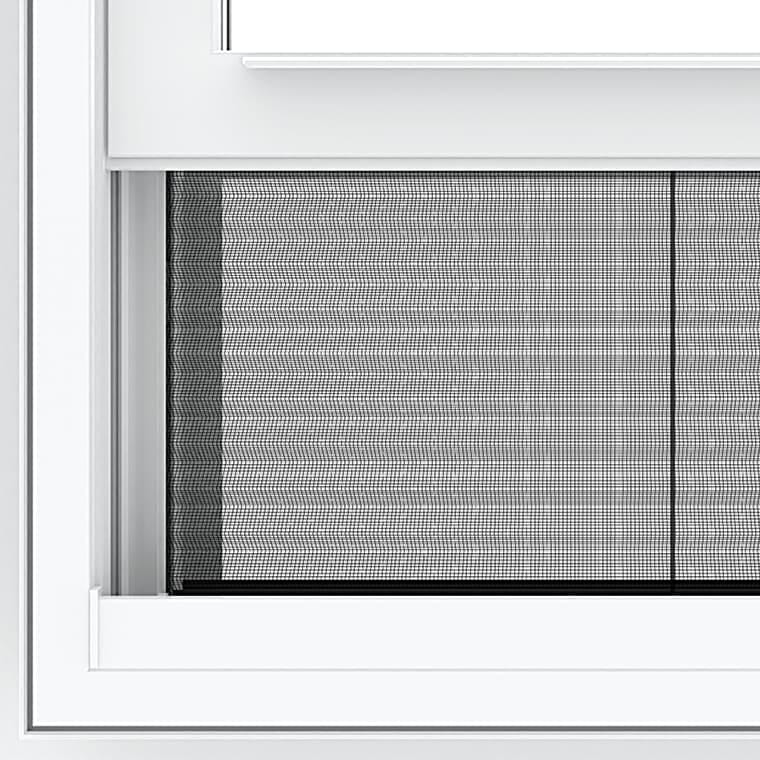

        Screens
        • Screens for window with frame height ≤ 51-1/2" have one plunger per side, screens for windows with frame height > 51-1/2" have two plungers per side.
        • Conventional Black Fiberglass
        • Black vinyl coated 18/16 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA 1201.

        Frequently Asked Questions

        FAQs about My Product

        FAQs about Purchasing Online

        250-sliding-door-beauty-couches

        Pella 250 Series

        Gain peace of mind with the enhanced security and privacy features available on Pella 250 Series windows. Our windows feature a multi-chambered frame design, which is 52% stronger than ordinary vinyl.13 Multi-chambered frames and a fully welded sash further increase the strength of your Pella 250 Series window.
