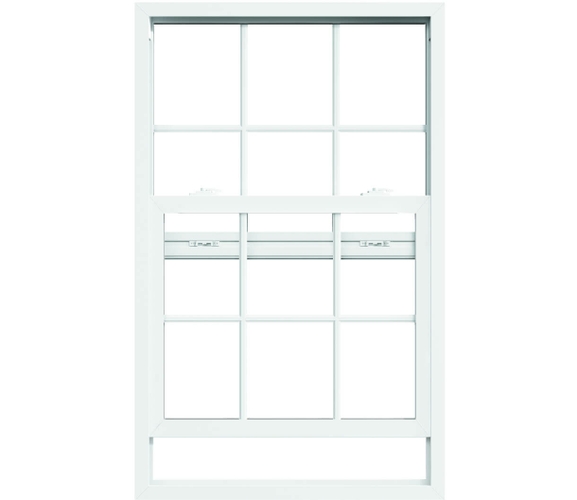

Encompass by Pella® Vinyl Single-Hung Window


On single-hung windows, the bottom sash can be raised and lowered while the top sash remains stationary. With low-maintenance vinyl that is easy on the budget, Encompass by Pella single-hung windows are a classic and beautiful addition to your home.

contemporary kitchen with patterned tile and three barstools

Encompass by Pella Single-Hung Window Features

Why Vinyl?

  • Low-maintenance
  • Exceptional energy efficiency
  • Popular styles and options
  • Pella's exclusive vinyl formula
  • Quality craftsmanship backed by Pella


  • Energy-efficient options
  • Easy-to-operate balance system
  • Tilt wash feature for easy cleaning
  • Optional auto-lock hardware

Browse Other Encompass by Pella Windows

Inside Encompass by Pella

Our windows feature multichambered, fully-welded sashes and frames to improve their strength and thermal performance. The precision welding process makes a strong and more durable product that resists warping and twisting.


For the Pros

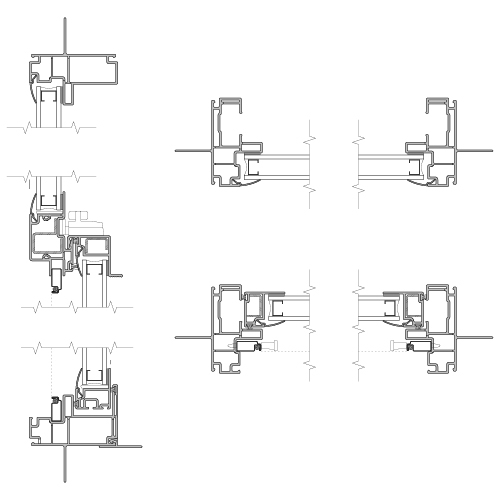

encompass single-hung window cross section

Encompass by Pella Single-Hung Window Specs & Install Details

  • Operable sizes up to 4' x 7'.
  • Available for window replacement and new construction needs.
  • Performance Grade up to PG50.
Request a Project Quote

Product Downloads

Options for Encompass by Pella Single-Hung Windows

Choosing Your Window


Join a window together with other windows to add character to your home’s design. Additional combinations are available. See your Pella sales representative for the complete offering.

Frame Color

Encompass by Pella vinyl products feature easy-care vinyl frames in your choice of three colors. Learn more about frame colors.


For Pros

New construction

  • East -Three frame types, 1-5/8" wall depth with nailing fin and 1-5/8" or 2-11/16" wall depth with J-channel
    • 2" and 3-3/8" overall frame depth with nailing fin
  • West - 1-1/4" wall depth with nailing fin

Window replacement

  • East - 2-11/16" overall frame depth with block frame design
  • West - Four frame types, 2-11/16" and 3-3/8" overall frame depths with block frame design, and 2-11/16" and 3-3/8" in Flush Flange

Styling Your Window


Pella's Cam-Action Lock and AutoLock hardware styles are available in your matched color finish.


For Pros

  • Block-and-tackle balances.
  • Choice of Cam-Action lock or AutoLock.*
  • Integral extruded sash lift built into the sash profile at the check rail.
  • Tilt latches that release bottom sash for interior washing.
  • Optional limited-opening hardware.

Sash Locks - Pella Cam-Action locks are designed to increase leverage as the window is closed to assure a superior, weathertight seal. Two sash locks are standard on larger single-hung windows. Optional keyed locks and limited-opening hardware are available. Optional AutoLock* automatically locks the window when it is closed.

Easy Wash Feature - Sash tilts inward allowing exterior glass to be cleaned from inside, making cleaning easier.

*See your local Pella representative for availability.

Grille Patterns

Grilles give the appearance of individual window panes. Pella offers many grille patterns to help enhance your home's architectural style.


Grille Profiles

Grilles-Between-the-Glass create the classic look of individual windowpanes.

1" Grilles-Between-the-Glass

For Pros

  • Permanent aluminum grilles are factory-installed between the panes of glass.
  • Color matches frame.
  • Multiple grille patterns available.
  • West Region includes 5/8" Flat grille and 3/4" Contour grilles.
  • East Region includes 3/4" and 1 " Contour grilles.

Window Enhancements

Universal Security Sensors

Stay connected to your windows.

Preserve beauty, add comfort and enhance home security with optional Pella Insynctive® technology.

Protect what matters most. Monitor windows with time-tested wireless technology while at home or away with the Pella Insynctive App.40 Learn more about Insynctive.

insynctive app in hand with status


Conventional Fiberglass Screens

Window and door screens play an important role in your home's light, ventilation and view. Our conventional fiberglass screens allow in light and the breeze and are durable to stay looking great for years. Learn more about screens.


Compare Single-Hung Windows

Explore Other Window Product Lines


Pella products are backed by some of the strongest warranties in the business.
